Function library
7-214
L
EDSVS9332P-D21 EN 3.0
FLIP3--D
FLIP3--CLR
FLIP3
FLIP3--OUT
D
CLR
Q
C1061/1
C1061/3
FLIP3--CLK
C1061/2
C1060/1
C1060/2
C1060/3
FB_flip3

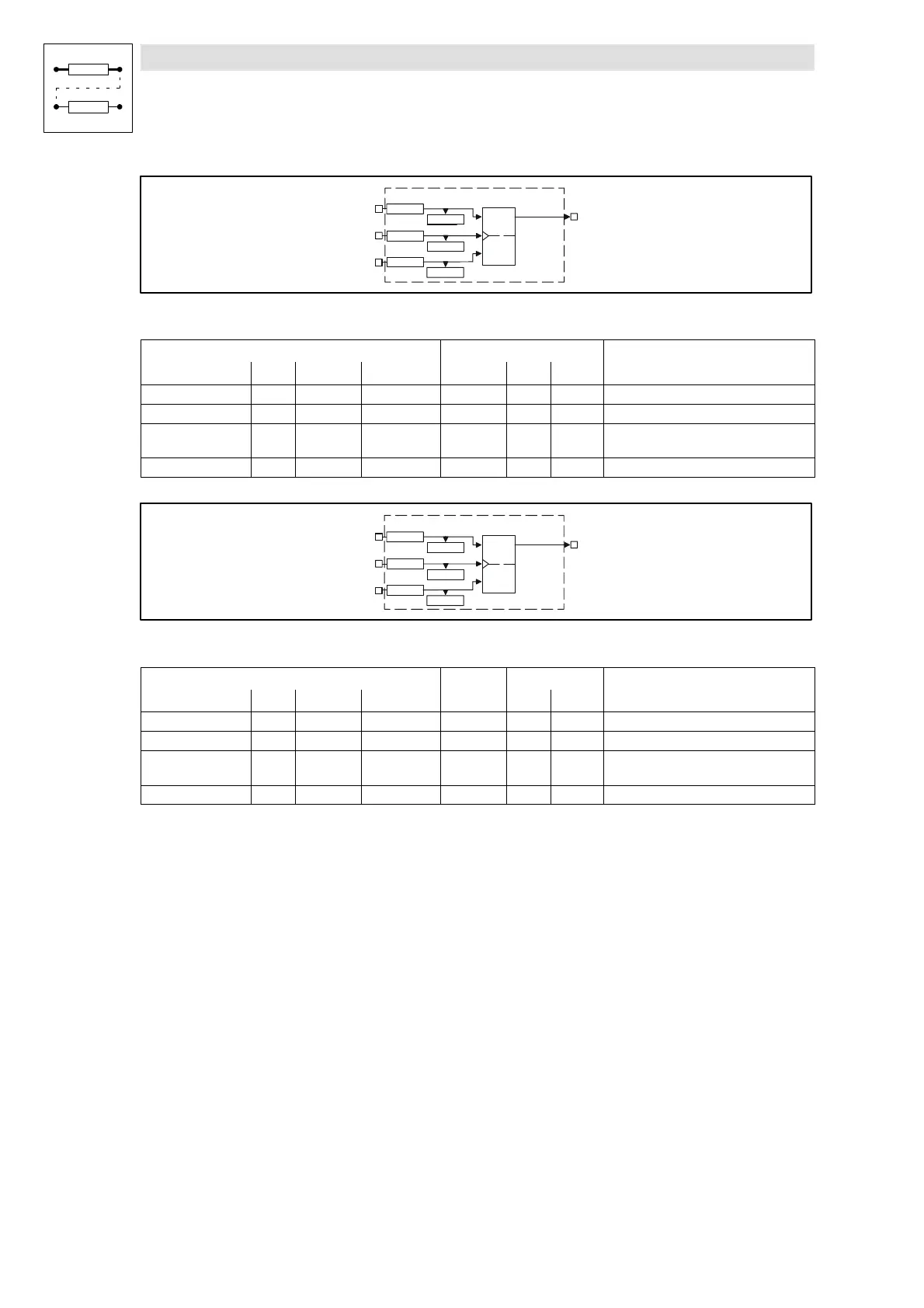

Fig. 7-169 Flipflop element (FLIP3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
FLIP3-D d C1061/1 bin C1060/1 2 1000 -
FLIP3-CLK d C1061/2 bin C1060/2 2 1000 evaluates LOW-HIGH edges only
FLIP3-CLR d C1061/3 bin C1060/3 2 1000 evaluates the input level only: input has
highest priority
FLIP3-OUT d - - - - - -
FLIP4--D
FLIP4--CLR
FLIP4
FLIP4--OUT
D
CLR
Q
C1061/4
C1061/6
FLIP4--CLK
C1061/5
C1060/4
C1060/5
C1060/6
FB_flip4
Fig. 7-170 Flipflop element (FLIP4)
Signal
Source Source Note
Name Type DIS DIS format CFG List Lenze
FLIP4-D d C1061/4 bin C1060/4 2 1000 -
FLIP4-CLK d C1061/5 bin C1060/5 2 1000 evaluates LOW-HIGH edges only
FLIP4-CLR d C1061/6 bin C1060/6 2 1000 evaluates the input level only: input has
highest priority
FLIP4-OUT d - - - - - -
