Gocator 2300 & 2880 Series
Gocator Web Interface • Scan Setup and Alignment • 112
In a dual-sensor system, profiles from individual sensors or from a combined view.
When in the Scan page, selecting a panel (e.g., Sensor or Alignment panel) automatically sets the
display to the most appropriate display view.
To manually select the display view in the Scan page:
1. Go to the Scan page.
2. Choose Profile mode in the Scan Mode panel.
3. Select the view.

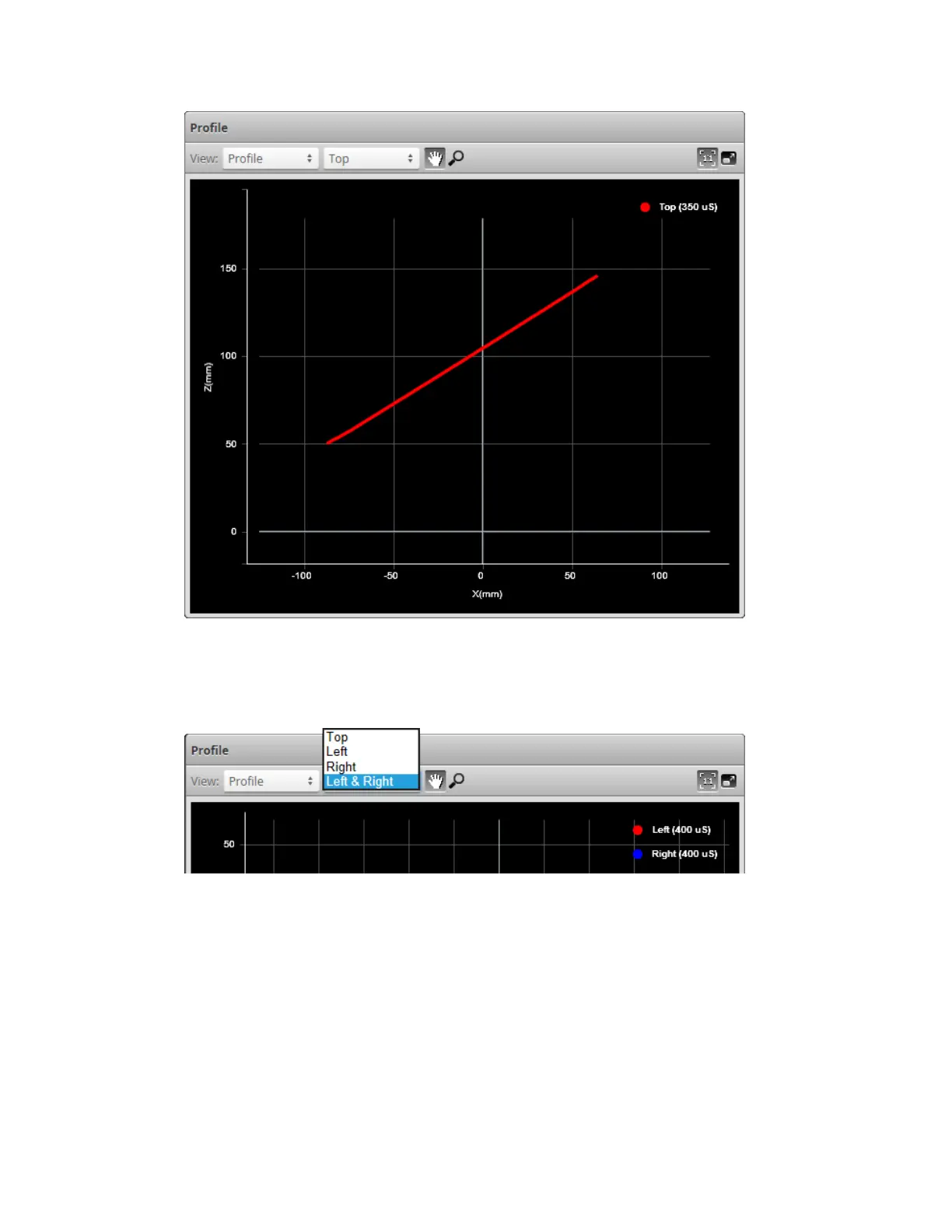

The view from an individual sensor or the combined view of two sensors can be selected from the drop-
down list at the top of the data viewer.
Top: View from a single sensor, from the top sensor in an opposite-layout dual-sensor system, or the
