Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 176

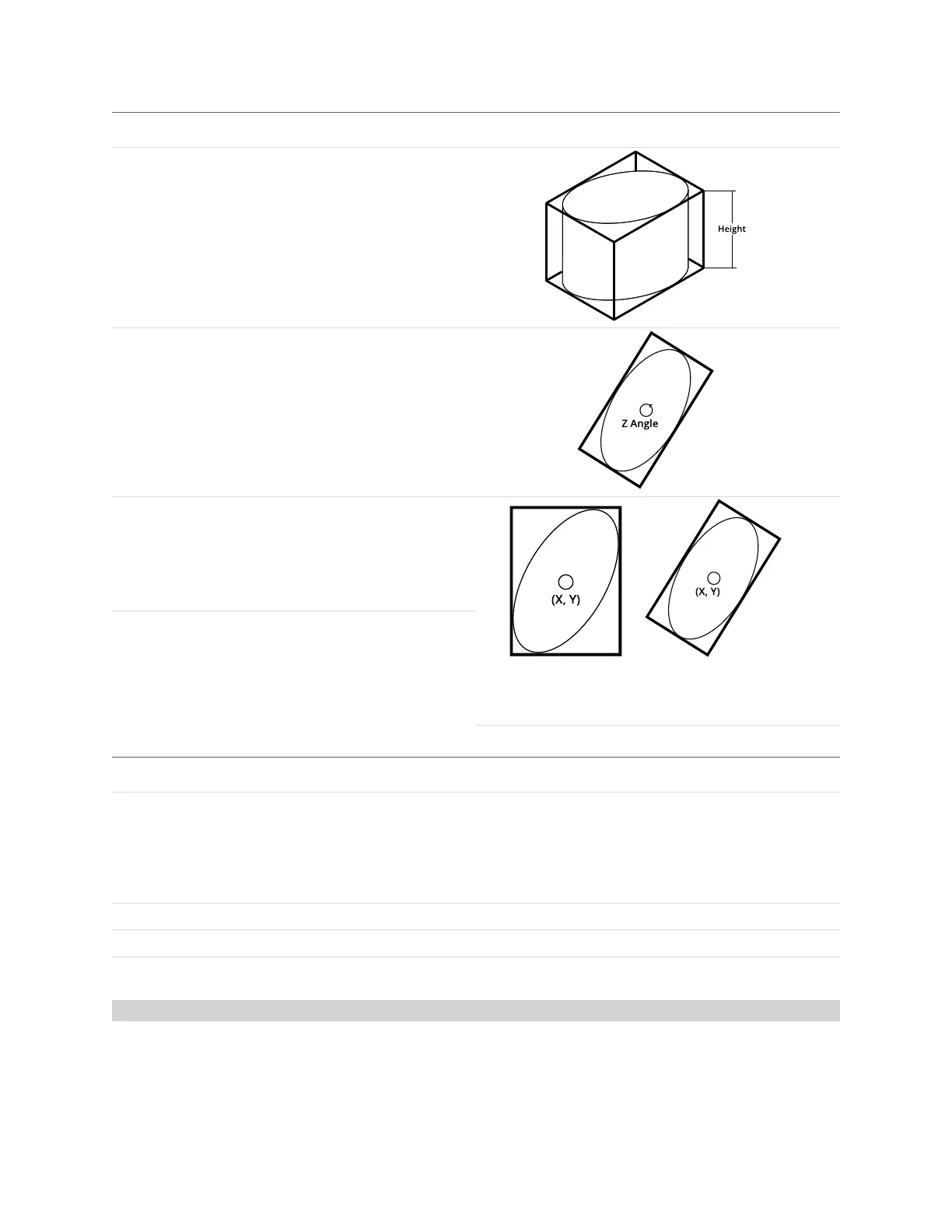

Measurement Illustration
Height
Determines the height (thickness) of the smallest
rectangle box that encapsulates the part.
ZAngle
Determines the rotation about the Z axis and the angle
of the bounding box relative to the X axis.
Global X
Determines the X position of the center of the smallest
rectangle that encapsulates the part.
The value returned is relative to the global/sensor
coordinates.
Global Y
Determines the Y position of the center of the smallest
rectangle that encapsulates the part.
The value returned is relative to the global/sensor
coordinates.
Parameter Description
Rotation
A bounding box can be vertical or rotated. A vertical
bounding box provides the absolute position from
which the part's Position centroid measurements are
referenced. Check the Rotation checkbox to select
rotated bounding box.
Decision See Decisions on page 139.
Region See Regions on page 139.
Output See Filters on page 141.
Parameters
Countersunk Hole
The Countersunk Hole tool locates a countersunk circular opening within a region of interest on the
surface and provides measurements to evaluate characteristics of countersunk holes, including the
