Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 133
Measurement
The following sections describe the Gocator's tools and measurements.

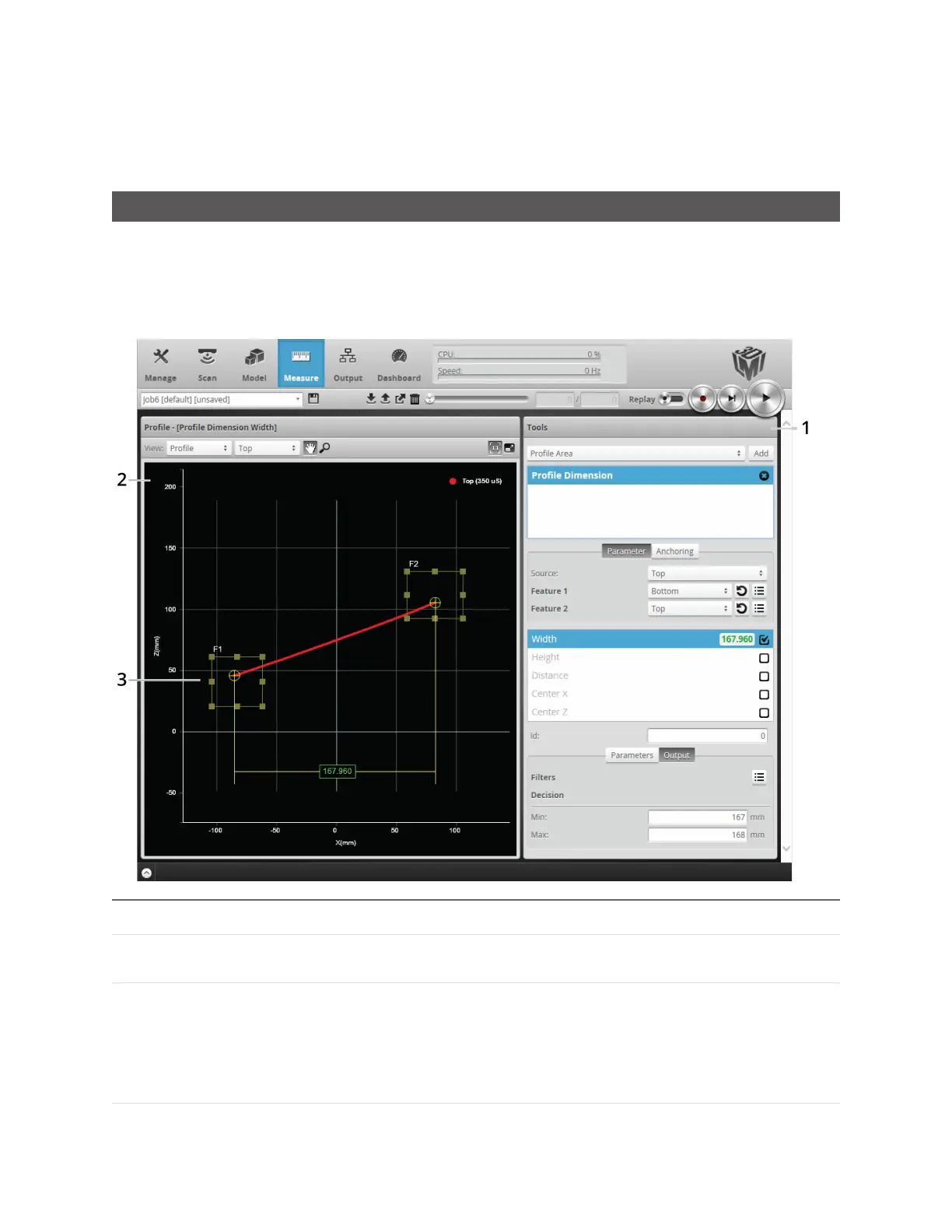

Measure Page Overview
Measurement tools are added and configured using the Measure page.
The content of the Tools panel in the Measure page depends on the current scan mode. In Profile
mode, the Measure page displays tools for profile measurement.In Surface mode, the Measure page
displays tools for surface measurement. In Video mode, tools are not accessible.
Element Description
1
Tools panel Used to add, manage, and configure tools and measurements (see on the next
page) and to choose anchors (see on page 142).
2
Data Viewer Displays profile or surface data, sets up tools, and displays result calipers
related to the selected measurement.
Parts are displayed using a height map, which is a top-down view of the XY
plane, where color represents height.
See Data Viewer on the next page.
