Gocator Web Interface • Measurement • 156

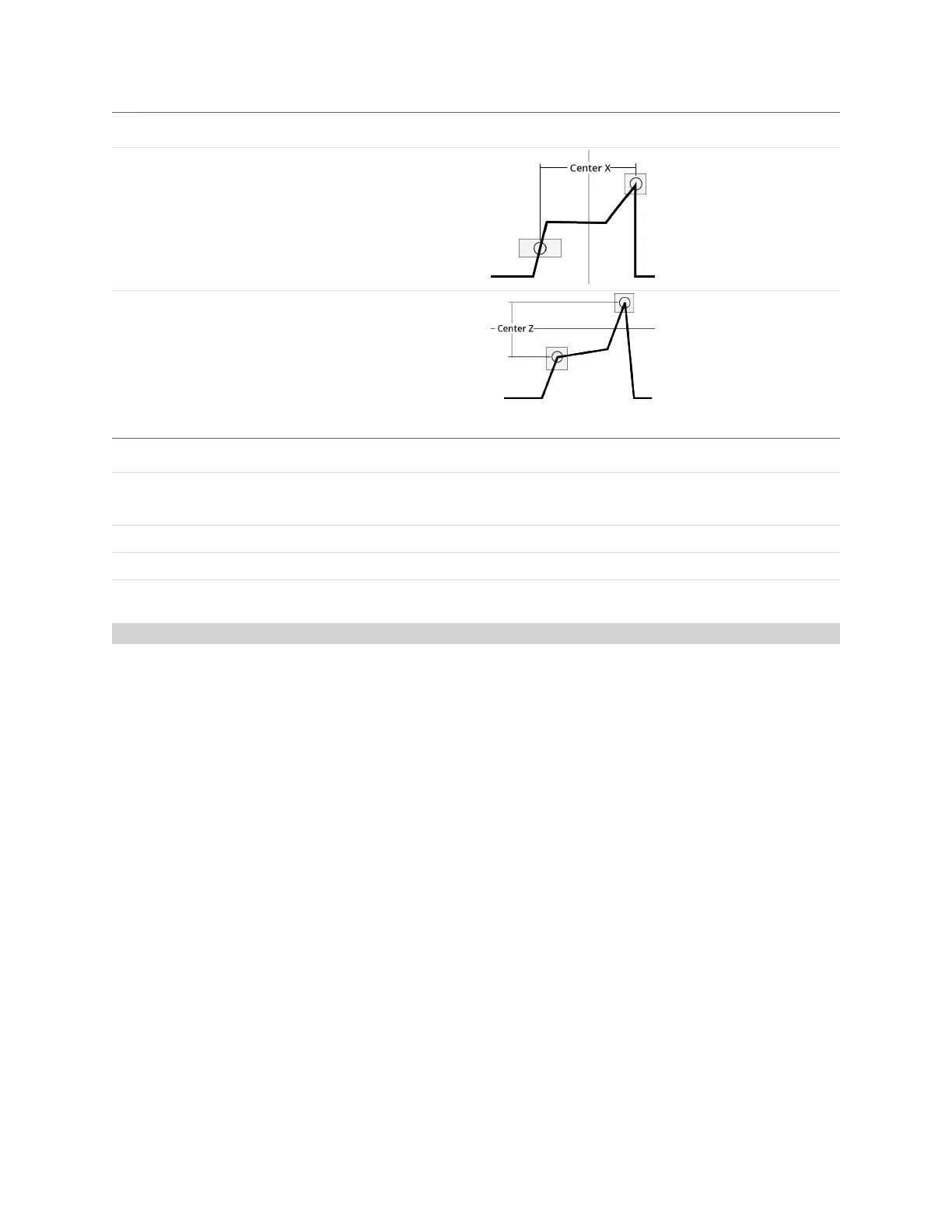

Measurement Illustration
Center X
Finds the average location of two features and
measures the X axis position of the average location
Center Z
Finds the average location of two features and
measures the Z axis position of the average location.
Parameter Description
Absolute
(Width and Height measurements only)
Determines if the result will be expressed as an
absolute or a signed value.
Decision See Decisions on page 139.
Region See Regions on page 139.
Output See Filters on page 141.
Parameters
Groove
The Groove tool provides measurements of V-shape, U-shape, or open-shape grooves. The
measurement value can be compared with minimum and maximum constraints to yield a decision.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
