Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 187
Opening

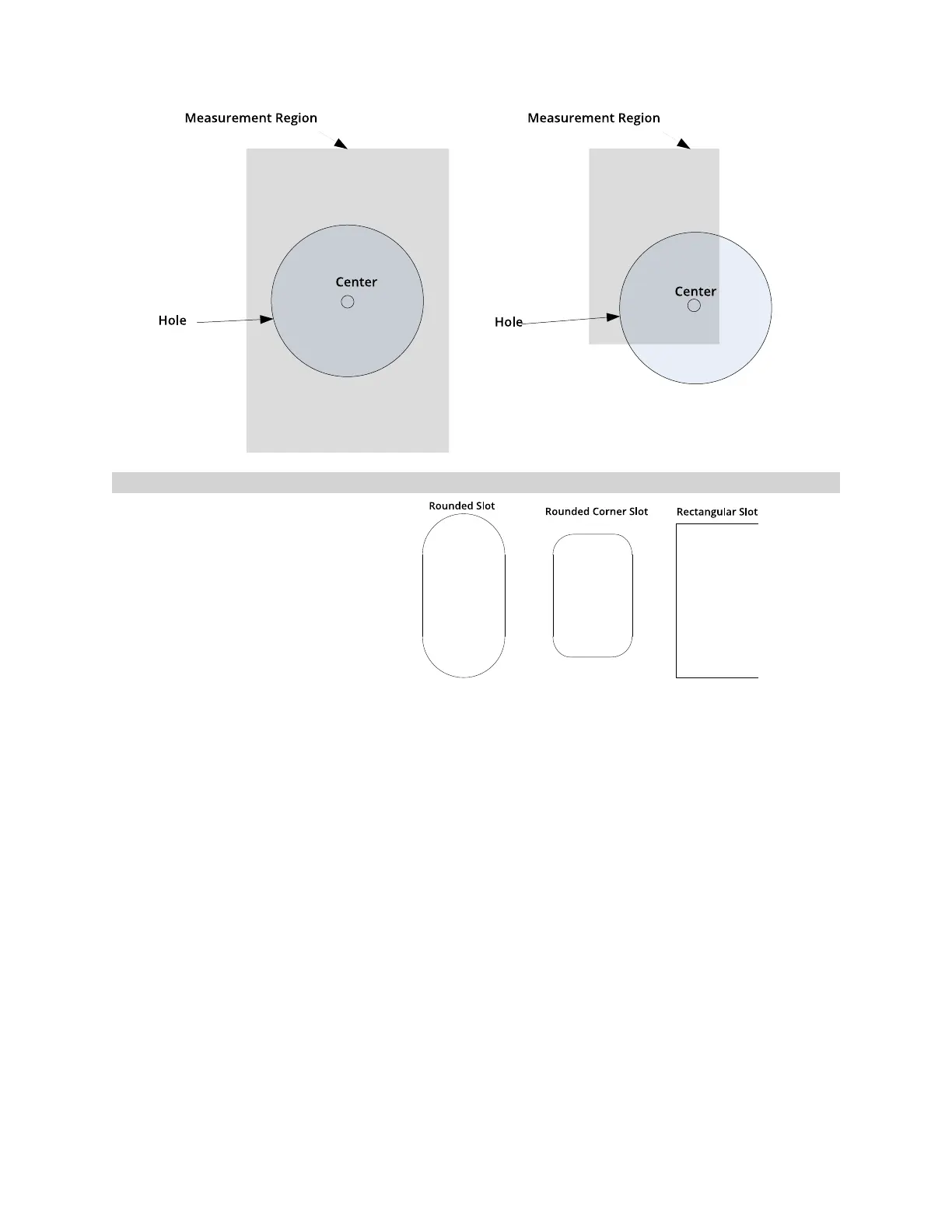

The Opening tool locates rounded,
rectangular, and rounded corner
openings. The opening can be on a
surface at an angle to the sensor.
See Adding and Removing Tools on
page 134 for instructions on how to
add measurement tools.
The tool uses a complex feature-
locating algorithm to find a hold
and then return measurements.
See "Opening Algorithm" in the
Gocator Measurement Tool
Technical Manual for a detailed
explanation of the algorithm. The
behavior of the algorithm can be
adjusted by changing the
parameters in the measurement
panel.
The measurement value can be
compared with minimum and
maximum constraints to yield a
decision. You can select the
measurement region in which the
opening is expected to appear.
