Gocator 2300 & 2880 Series
Gocator Web Interface • System Management and Maintenance • 58
Dual-Sensor System Layout
Mounting orientations must be specified for a dual-sensor system. This information allows the
alignment procedure to determine the correct system-wide coordinates for laser profiling and
measurements. See Coordinate Systems on page 45 for more information on sensor and system
coordinates.

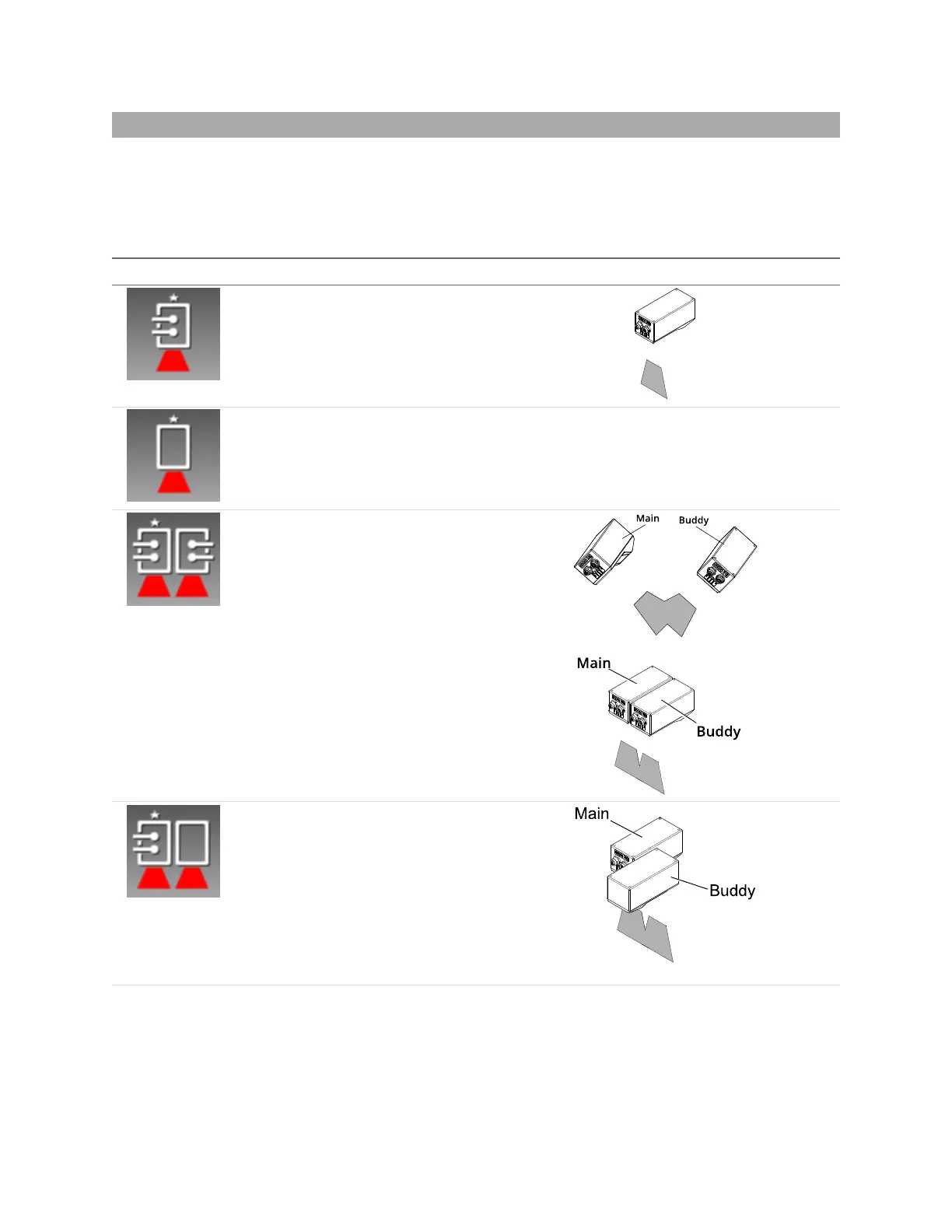

Orientation Example
Standalone
The sensor operates as an isolated device.
Reverse
The sensor operates as an isolated device,
but in a reverse orientation.
Wide
Sensors are mounted in Left (Main) and
Right (Buddy) positions for a larger
combined field of view. Sensors may be
angled to avoid occlusions.
Reverse
Sensors are mounted in a left-right layout as
with the Wide layout, but the Buddy sensor
is mounted such that it is rotated 180
degrees around the Z axis to prevent
occlusion along the Y axis.
Sensors should be shifted along the Yaxis so
that the laser lines align.
Supported Layouts
