Gocator 2300 & 2880 Series
Gocator Web Interface • Scan Setup and Alignment • 73
Scan Setup and Alignment
The following sections describe the steps to configure Gocator sensors for laser profiling using the Scan
page. Setup and alignment should be performed before adding and configuring measurements or
outputs.

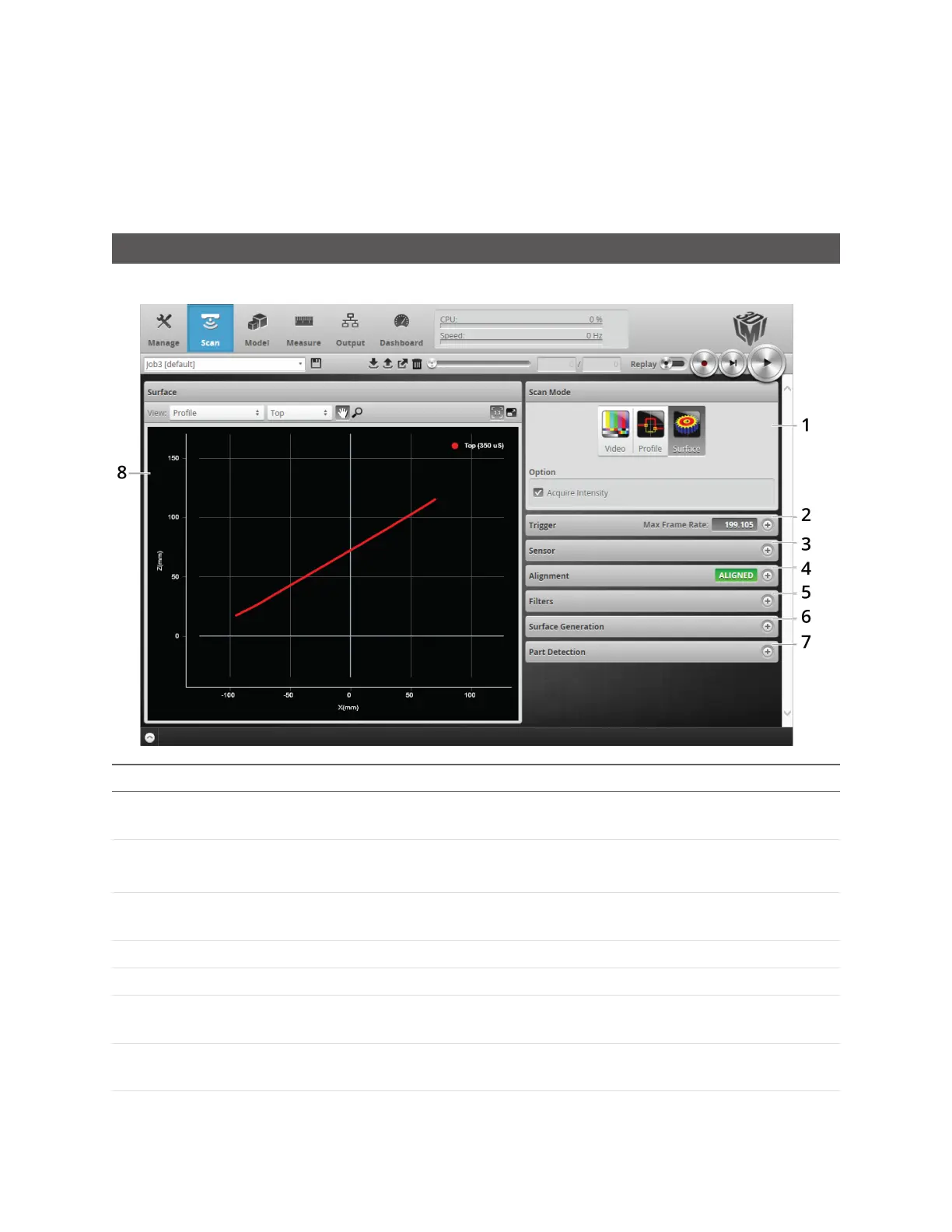

Scan Page Overview
The Scan page lets you configure sensors and perform alignment.
Element Description
1 Scan Mode panel Contains settings for the current scan mode (Video, Profile, or Surface) and other options.
See Scan Modes on the next page.
2 Trigger panel
Contains trigger source and trigger-related settings. See Triggers on page 75.
3 Sensor panel
Contains settings for an individual sensor, such as active area or exposure. See Sensor on
page 80.
4 Alignment panel
Used to perform alignment. See Alignment on page 92.
5 Filters panel
Contains settings for post-processing of the profiles. See Filters on page 97.
6 Part Detection
panel
Used to set the part detection logic for sorting profiles into discrete objects. See Part
Detection on page 103.
7 Surface Generation
panel
Contains settings for surface generation. See Surface Generation on page 100.
