Gocator 2300 & 2880 Series
Specifications • Master 1200/2400 • 418

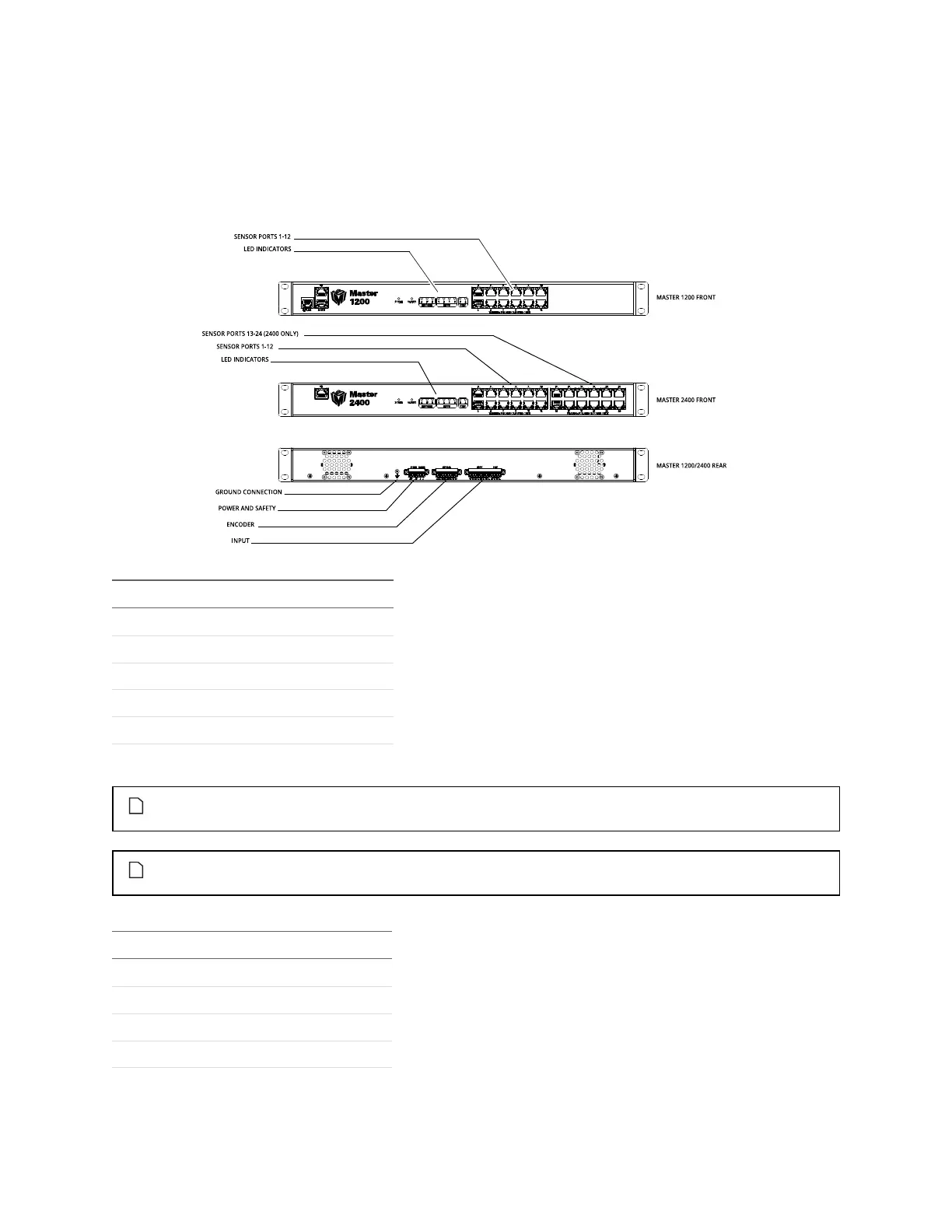

Master 1200/2400
The Master 1200/2400 provides sensor power and safety interlock, and broadcasts system-wide
synchronization information (i.e., time, encoder count, encoder index, and digital I/O states) to all
devices on a sensor network.
Function Pin
+48VDC 1
+48VDC 2
GND(48VDC) 3
GND(48VDC) 4
Safety Control+ 5
Safety Control– 6
Power and Safety (6 pin connector)
The +48VDC power supply must be isolated from AC ground. This means that AC ground and
DC ground are not connected.
The Safety Control requires a voltage differential 12VDC to 48VDC across the pin to enable the
laser.
Function Pin
Input 1 1
Input 1 GND 2
Reserved 3
Reserved 4
Digital Input (16 pin connector)
