Position

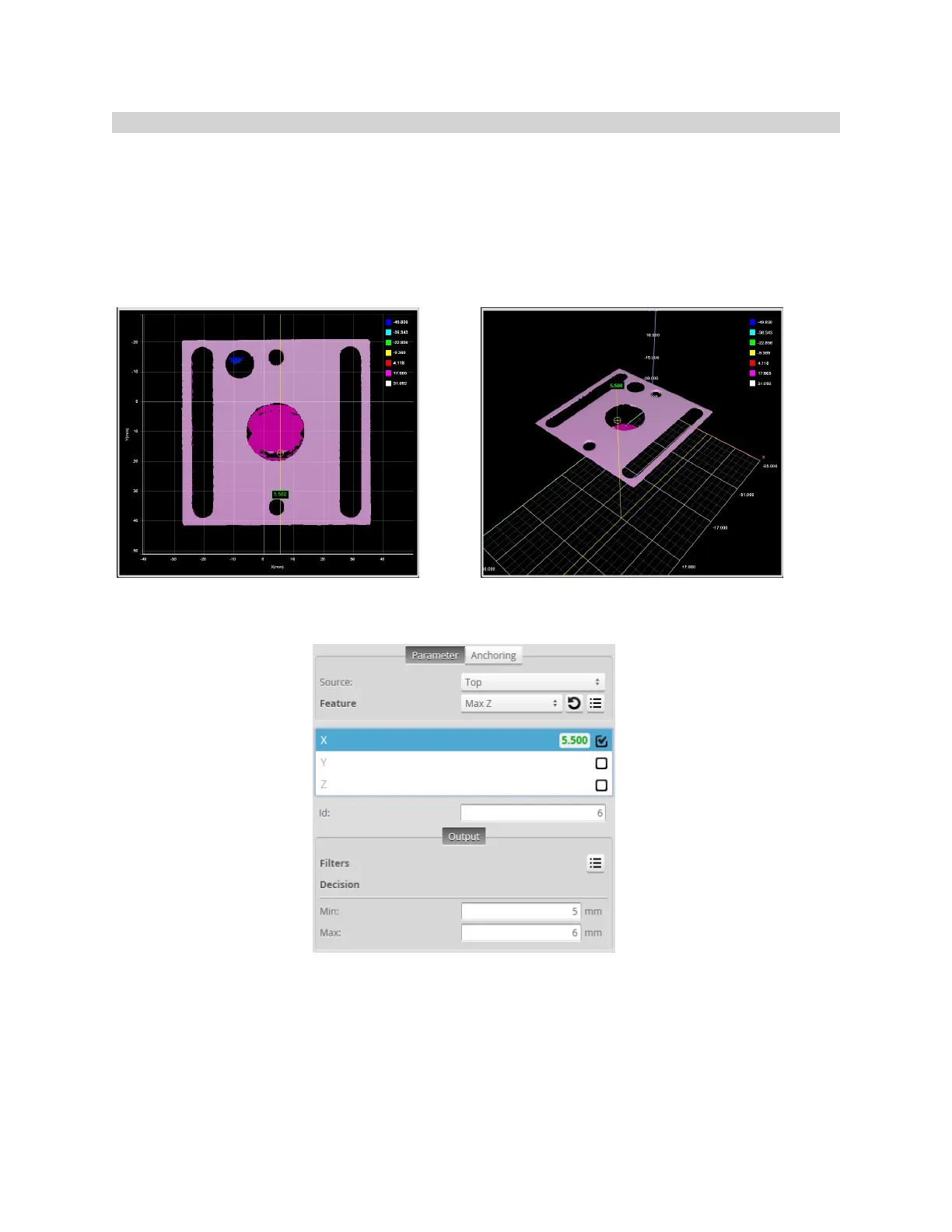

The Position tool reports the X, Y, or Z position of a part. The feature type must be specified and is one
of the following: Average (the mean X, Y, and Z of the data points), Median (median X, Y, and Z of the
data points), Centroid (the centroid of the data considered as a volume with respect to the z = 0 plane),
Min X, Max X, Min Y, Max Y, Min Z, or Max Z.
The measurement value can be compared with minimum and maximum constraints to yield a decision.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
