Gocator 2300 & 2880 Series
Gocator Web Interface • System Management and Maintenance • 59

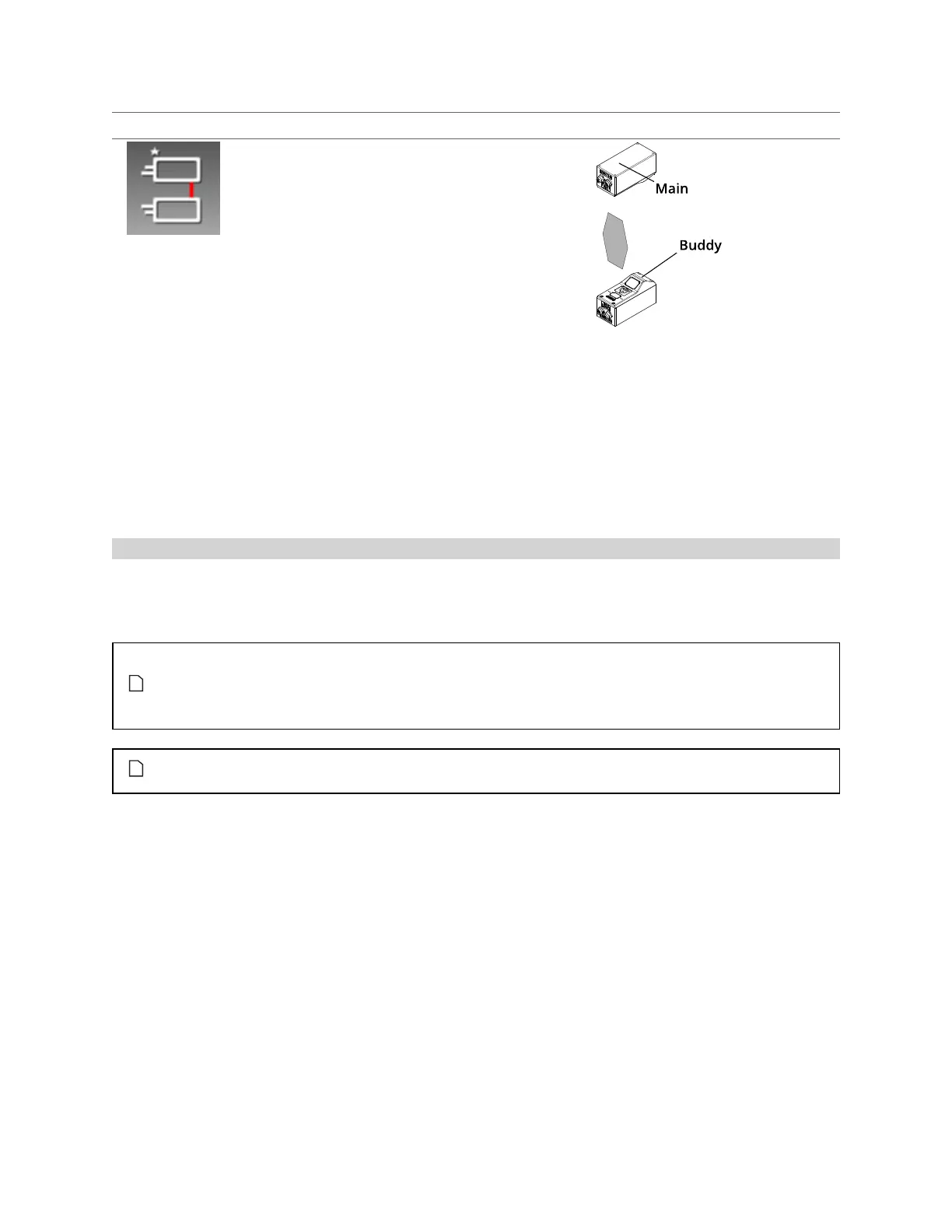

Orientation Example
Opposite
Sensors are mounted in Top (Main) and
Bottom (Buddy) positions for a larger
combined measurement range and the
ability to perform Top/Bottom differential
measurements.
To specify the layout:
1. Go to the Manage page and click on the Sensor System category.
2. Select an assigned Buddy sensor in the Visible Sensors list.
See Buddy Assignment below for information on assigning a Buddy Sensor.
3. Select a layout by clicking on one of the layout buttons.
See the table above for information on layouts.
Buddy Assignment
In a dual-sensor system, the Main sensor assumes control of the Buddy sensor after the Buddy sensor is
assigned to the Main sensor. Configuration for both sensors can be performed through the Main
sensor's interface.
Main and Buddy sensors must be assigned unique IP addresses before they can be used on the
same network. Before proceeding, connect the Main and Buddy sensors one at a time (to avoid
an address conflict) and use the steps outline in Running a Dual-Sensor System (page 30) to
assign each sensor a unique address.
When a sensor is acting as a Buddy, it is not discoverable and its web interface is not
accessible.
