Gocator Web Interface • Measurement • 181
Parameter Description
and Y parameters.
Partial Detection Enable if only part of the hole is within the measurement region.
If disabled, the hole must be completely in the region of interest
for results to be valid.
Decision See Decisions on page 139.
Region See Regions on page 139.
Output See Filters on page 141.

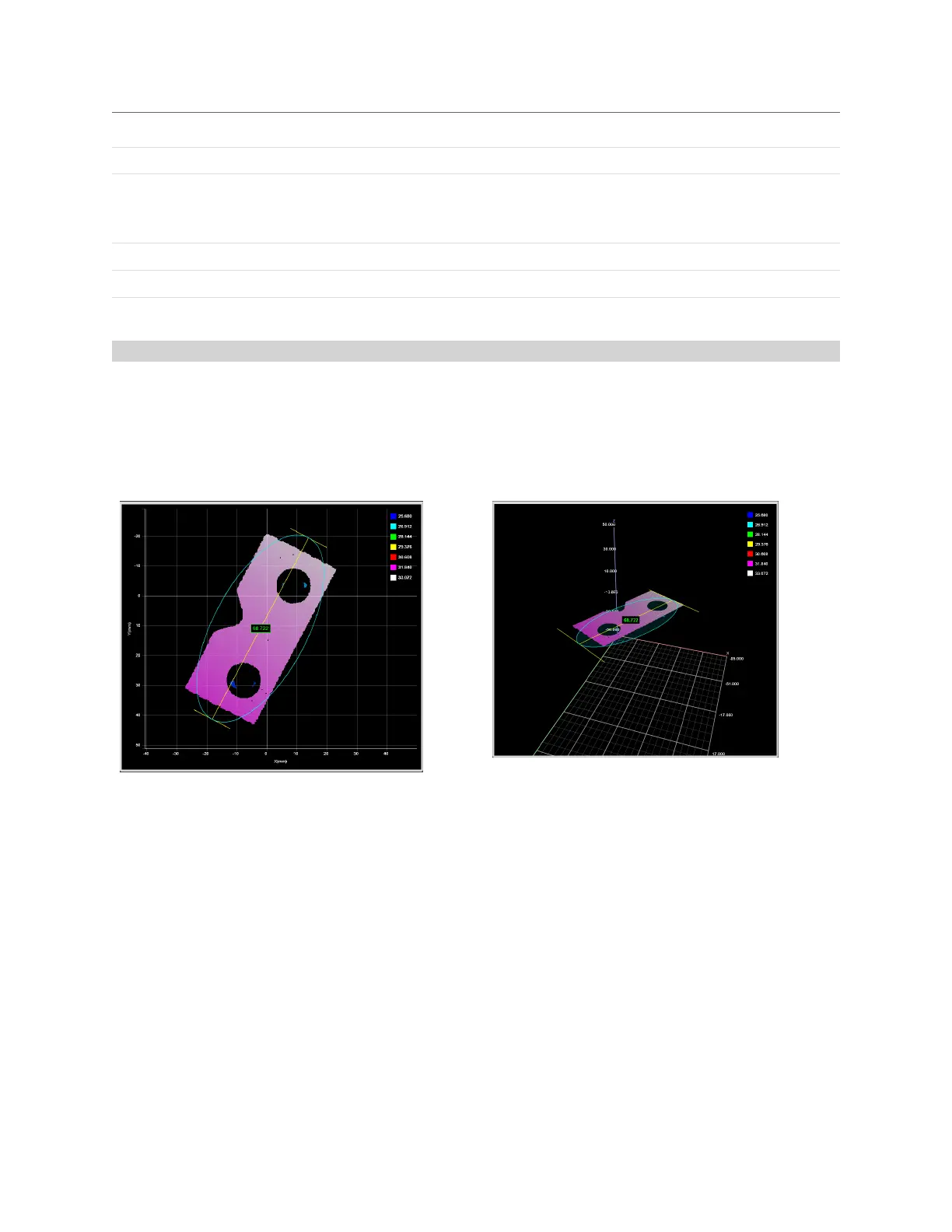

Ellipse
The Ellipse tool provides measurements for the major and minor axis lengths of an ellipse fitted to the
part's shape in the XY plane, and also for the ratio of the major and minor axis lengths and for the
orientation angle of the ellipse. The measurement value can be compared with minimum and maximum
constraints to yield a decision.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
2DView
3DView
