Gocator Web Interface • Measurement • 182

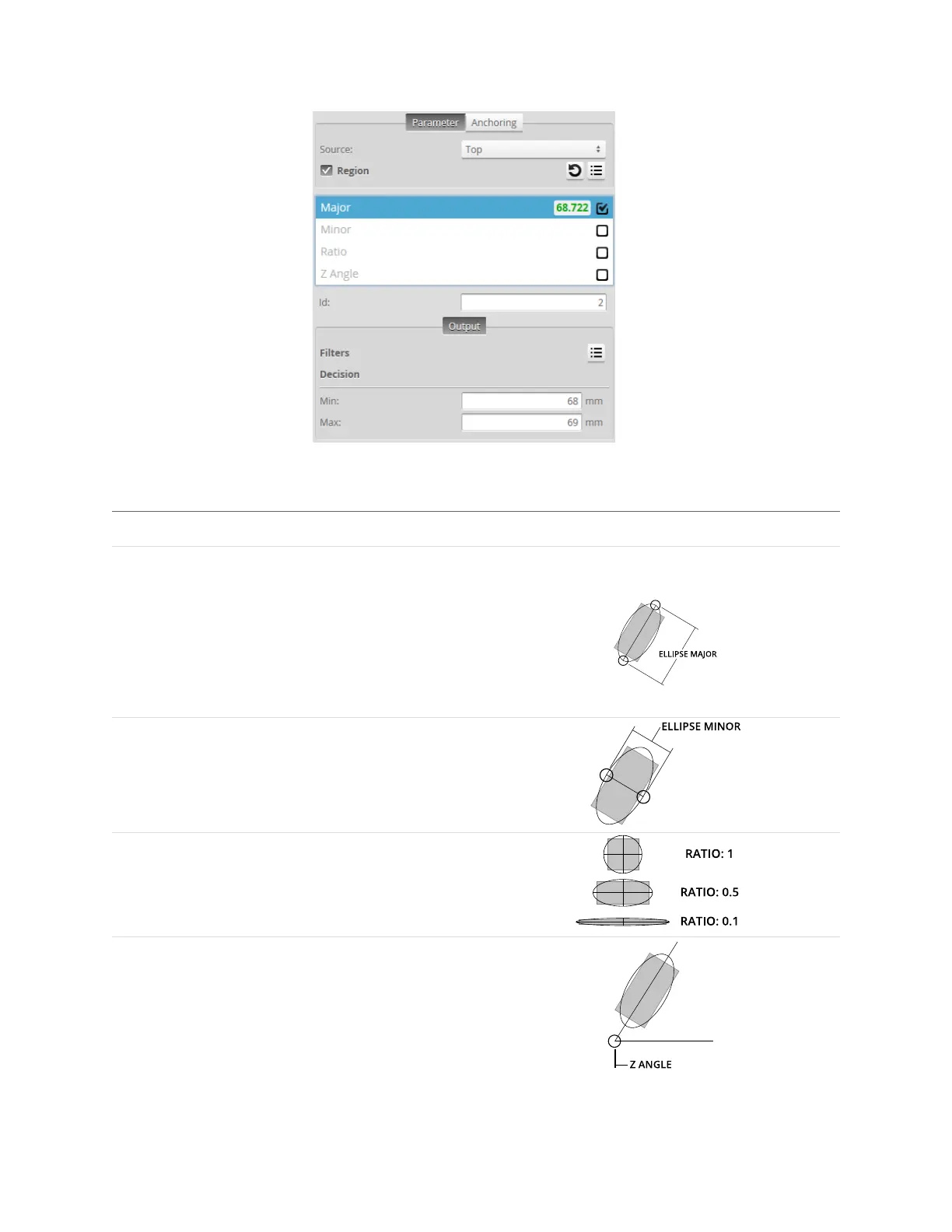

Measurement Panel
Measurement Illustration
Major
Determines the major axis length of an ellipse fitted to
the part's area in the XY plane.
Minor
Determines the minor axis length of an ellipse fitted to
the part's area in the XY plane.
Ratio
Determines the minor/major axis ratio of an ellipse
fitted to the part's area in the XY plane.
Z Angle
Determines the orientation angle of an ellipse fitted to
the part's area in the XY plane.
