Gocator Web Interface • Measurement • 163
Parameter Description
(Percentile measurement only)
fitted line.
Decision See Decisions on page 139.
Region See Regions on page 139.
Output See Filters on page 141.
Panel
This section describes the Panel tool's Gap and Flush measurements.
Gap

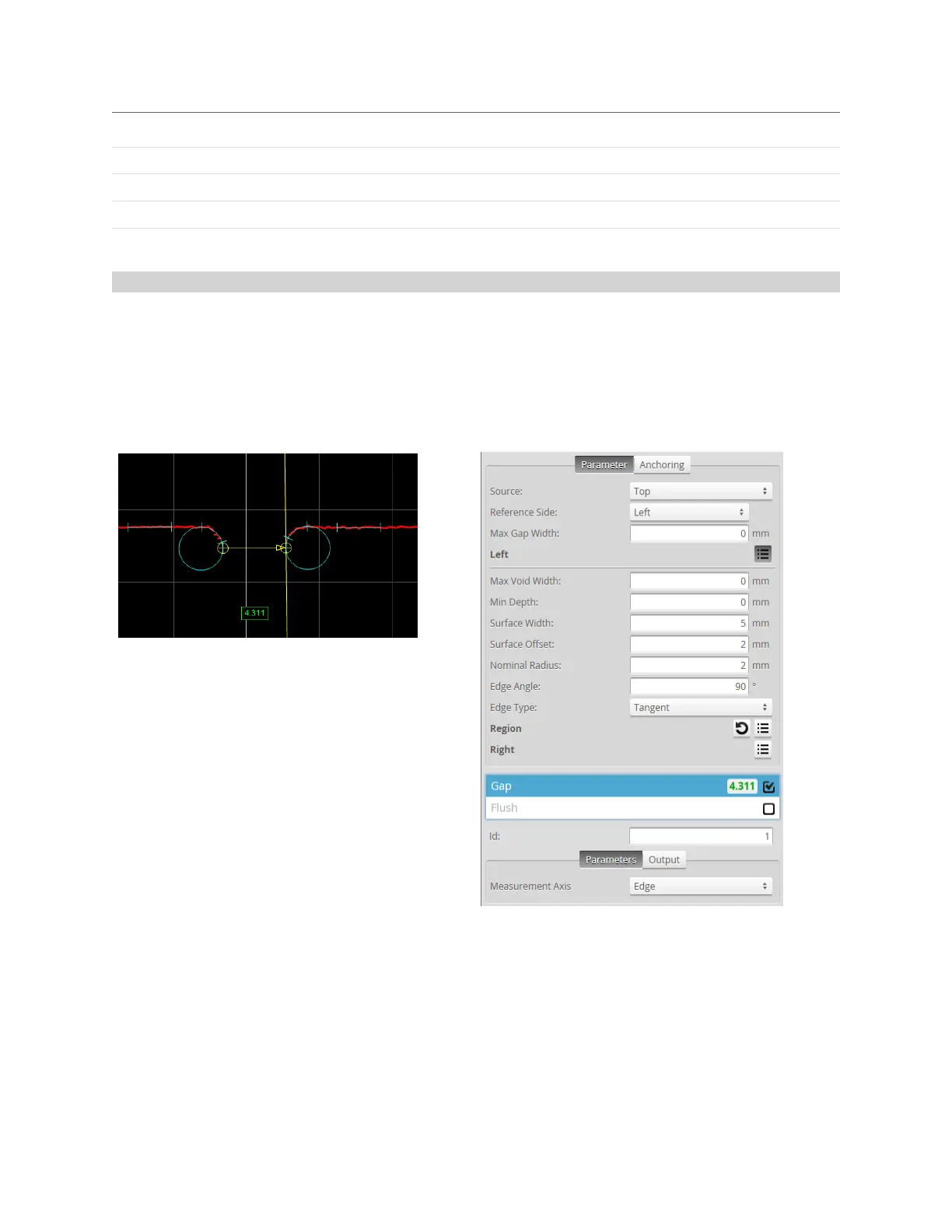

The Gap measurement provides the distance between the edges of two surfaces. The measurement
value can be compared with minimum and maximum constraints to yield a decision.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
The Gap tool uses a complex feature-locating algorithm to find the gap and then return measurements.
The behavior of the algorithm can be adjusted by changing the parameters in the measurement panel.
See "Gap and Flush Algorithm" in the Gocator Measurement Tool Technical Manual for a detailed
explanation of the algorithm and the parameters.
