Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 161

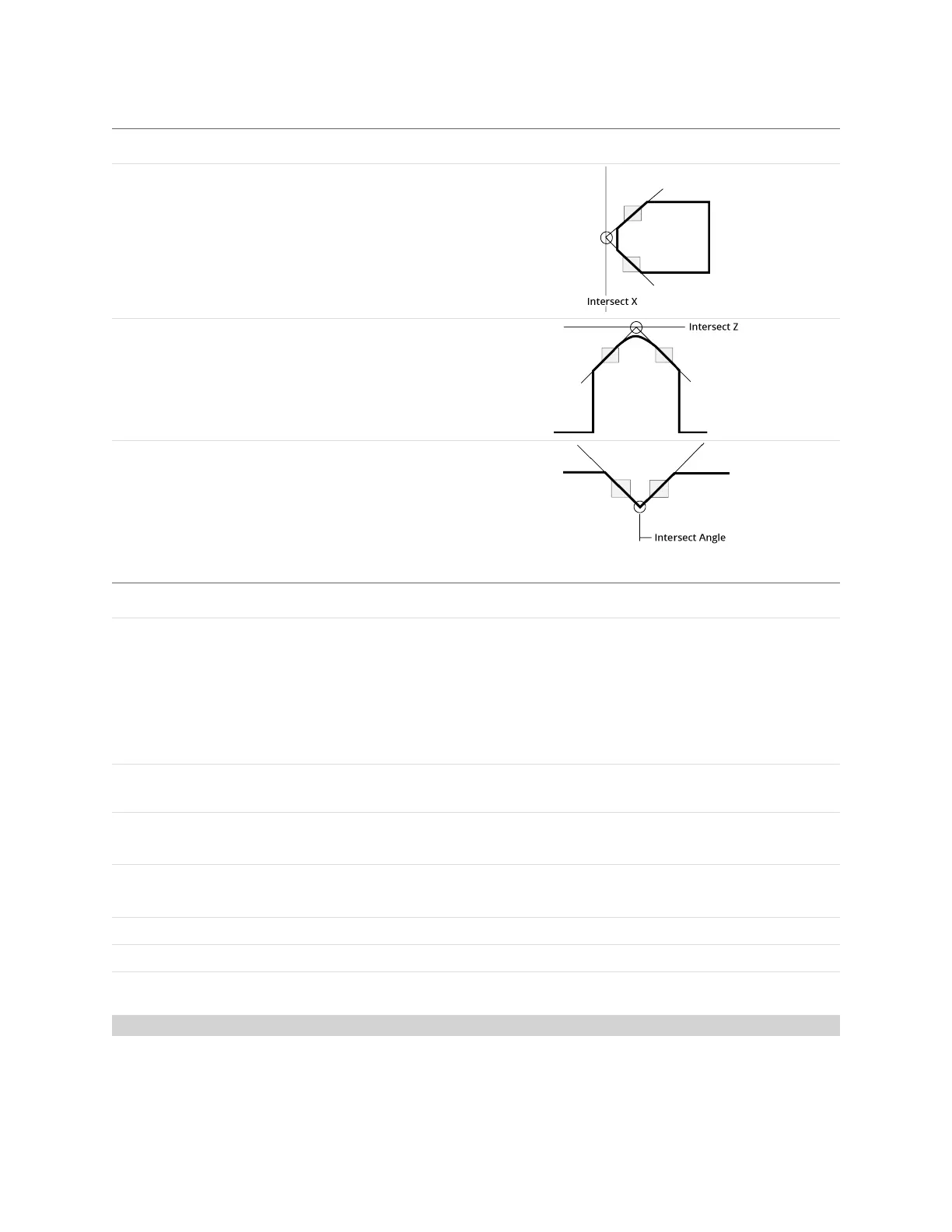

Measurement Illustration
X
Finds the intersection between two fitted lines and
measures the X axis position of the intersection point.
Z
Finds the intersection between two fitted lines and
measures the Z axis position of the intersection point.
Angle
Finds the angle subtended by two fitted lines.
Measurements
Parameter Description
Reference Type Determines the type of the reference line.
X-Axis:The reference line is set to the X axis.
Z-Axis:The reference line is set to the Z axis
Line:The reference line is defined manually using the
Ref Line parameter. One or two regions can be used
to define the line.
Ref Line Used to define the reference line when Line is
selected in the Reference Type parameter.
Line One or two fit areas can be used for each fit line.
See Fit Lines on page 146 for more information.
Absolute
(Angle measurement only)
Determines if the result will be expressed as an
absolute or a signed value.
Decision See Decisions on page 139.
Region See Regions on page 139.
Output See Filters on page 141.
Parameters
Line
The Line tool fits a line to the live profile and measures the deviations from the best-fitted line. The
measurement value can be compared with minimum and maximum constraints to yield a decision.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
