Gocator 2300 & 2880 Series
Specifications • Master 100 • 414
Function Pin
Output_1+ (Digital Output 0) 1
Output_1- (Digital Output 0) 2
Encoder_Z+ 3
Encoder_Z- 4
Encoder_A+ 5
Encoder_A- 6
Encoder_B+ 7
Encoder_B- 8
Encoder_GND 9
Encoder_5V 10
Encoder/Output Port Pins

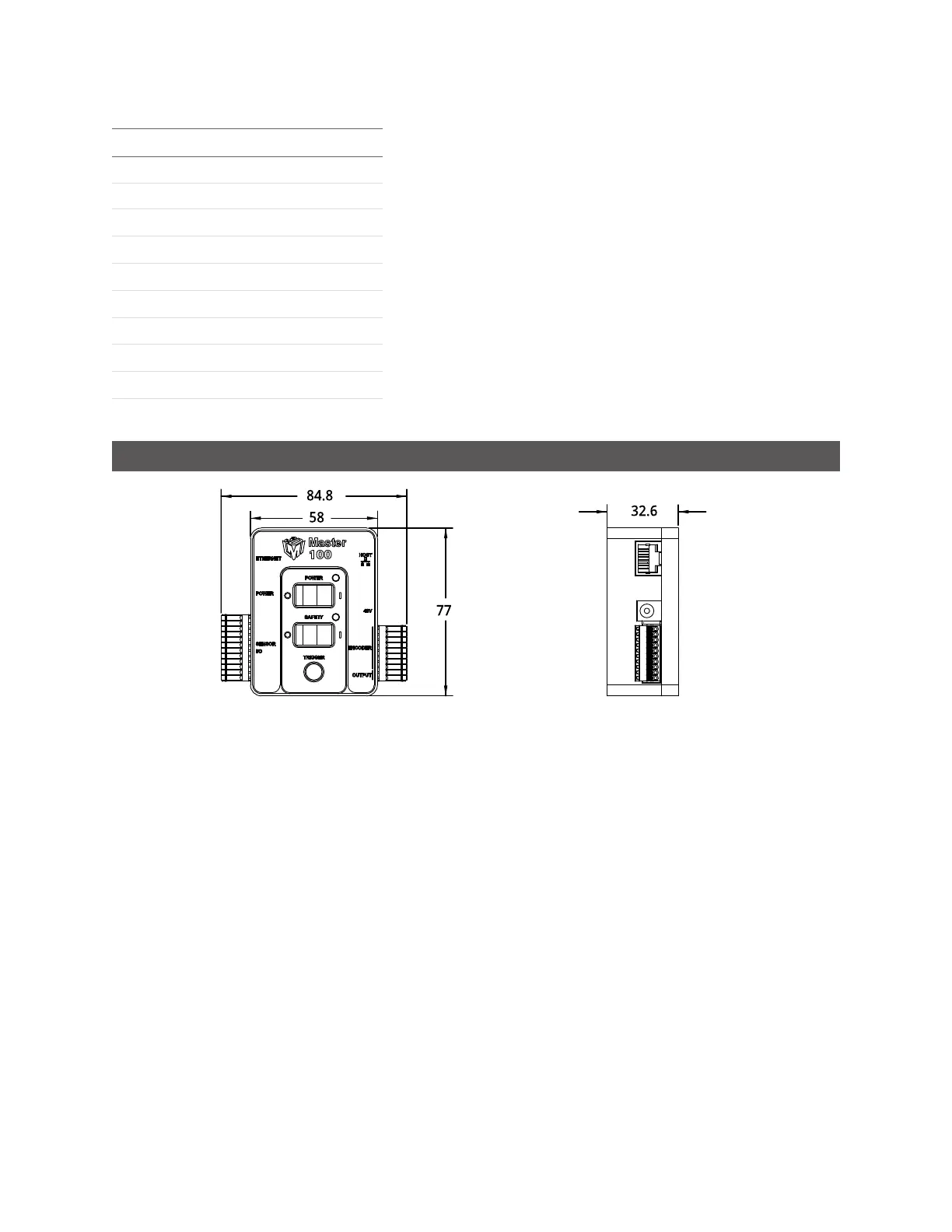

Master 100 Dimensions
