Gocator Web Interface • Measurement • 167

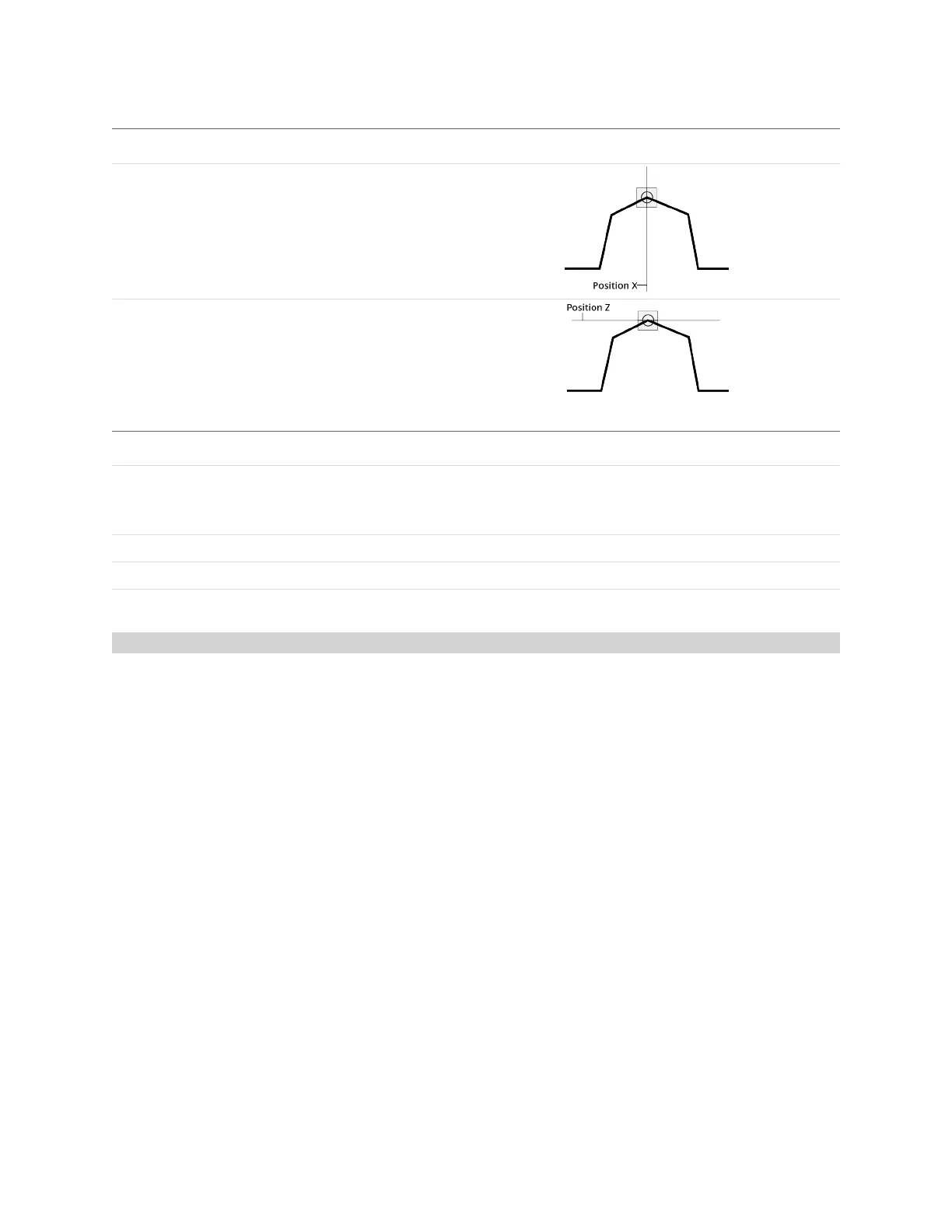

Measurement Illustration
X
Finds the position of a feature on the X axis.
Z
Finds the position of a feature on the Z axis.
Measurements
Parameter Description
Feature Type Choose Max Z, Min Z, Max X, Min X, Corner, Average,
Rising Edge, Falling Edge, Any Edge, Top Corner,
Bottom Corner, Left Corner, Right Corner, or Median.
Decision See Decisions on page 139.
Region See Regions on page 139.
Output See Filters on page 141.
Parameters
Strip
The Strip tool measures the width of a strip. The measurement value can be compared with minimum
and maximum constraints to yield a decision.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
