Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 144
Profile Measurement
This section describes the profile measurement tools available in Gocator sensors that are equipped with
these tools.
Thefollowing tools are available when UniformSpacing is disabled:
l Bridge Value
l Dimension
l Position
l Script
For more information on the Uniform Spacing setting and resampled data, see Uniform Spacing (Data
Resampling) on page 46.

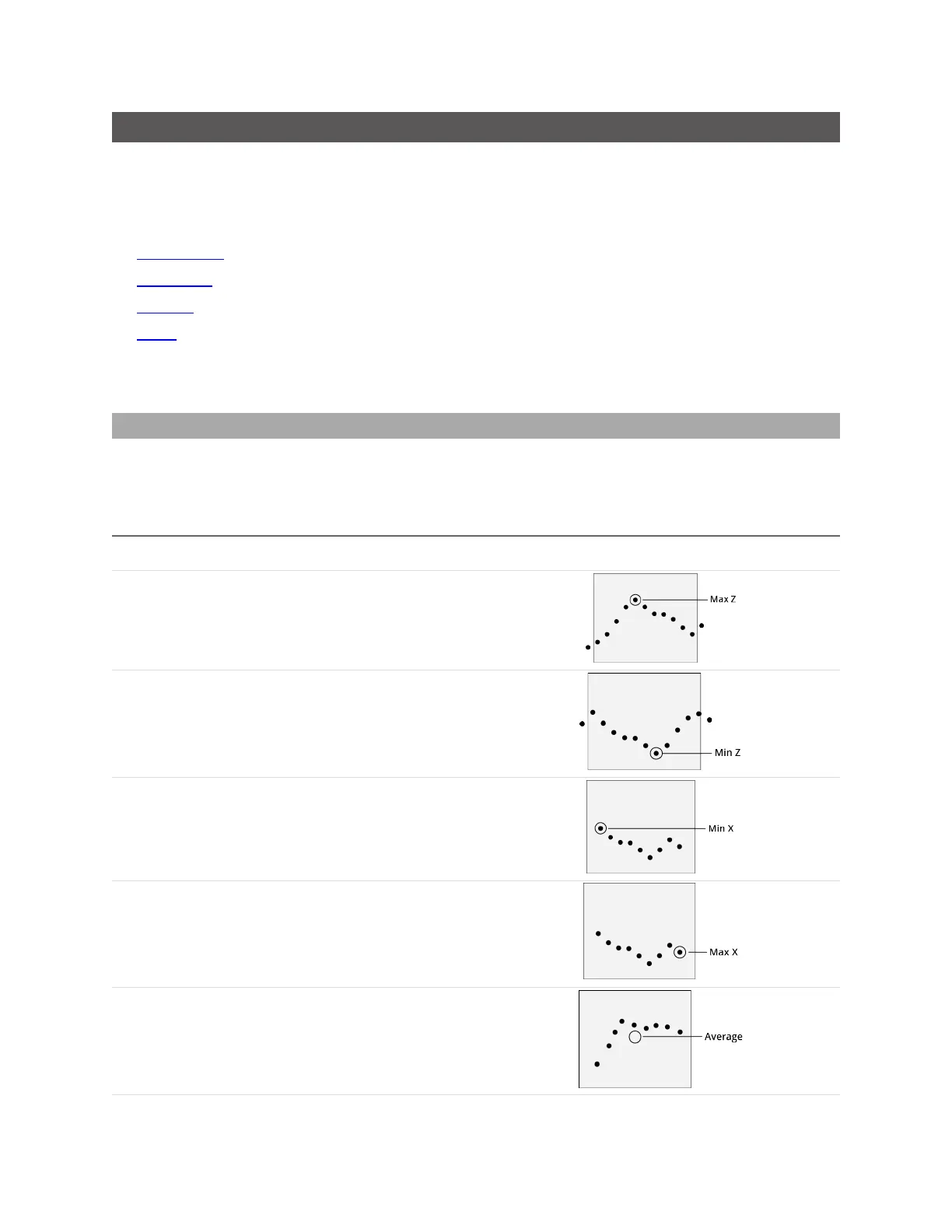

Feature Points
Most measurement detect and compare feature points or lines found within laser profile data.
Measurement values are compared against minimum and maximum thresholds to yield decisions.
The following types of points can be identified.
Point Type Examples
Max Z
Finds the point with the maximum Z value in the region of
interest.
Min Z
Finds the point with the minimum Z value in the region of
interest.
Min X
Finds the point with the minimum X value in the region of
interest.
Max X
Finds the point with the maximum X value in the region of
interest.
Average
Determines the average location of points in the region of
interest.
