Gocator 2300 & 2880 Series
Gocator Web Interface • Models and Part Matching • 131
Setting Description
Z Angle Corrects the orientation of the
bounding box or ellipse
to accurately match
typical orientation and simplify measurements.
Acceptance Criteria
Determines the minimum and maximum acceptable values of the selected
dimension (Width and Length for bounding box, Major and Minor for ellipse) in
Match Result.
Configuring a Bounding Box or an Ellipse
To use a bounding box or an ellipse to match a part, you must set its dimensions, taking into account
expected acceptable variations when compared to a reference (or "golden")part.
To configure a bounding box or ellipse for part matching:
1. Go to the Scan page.

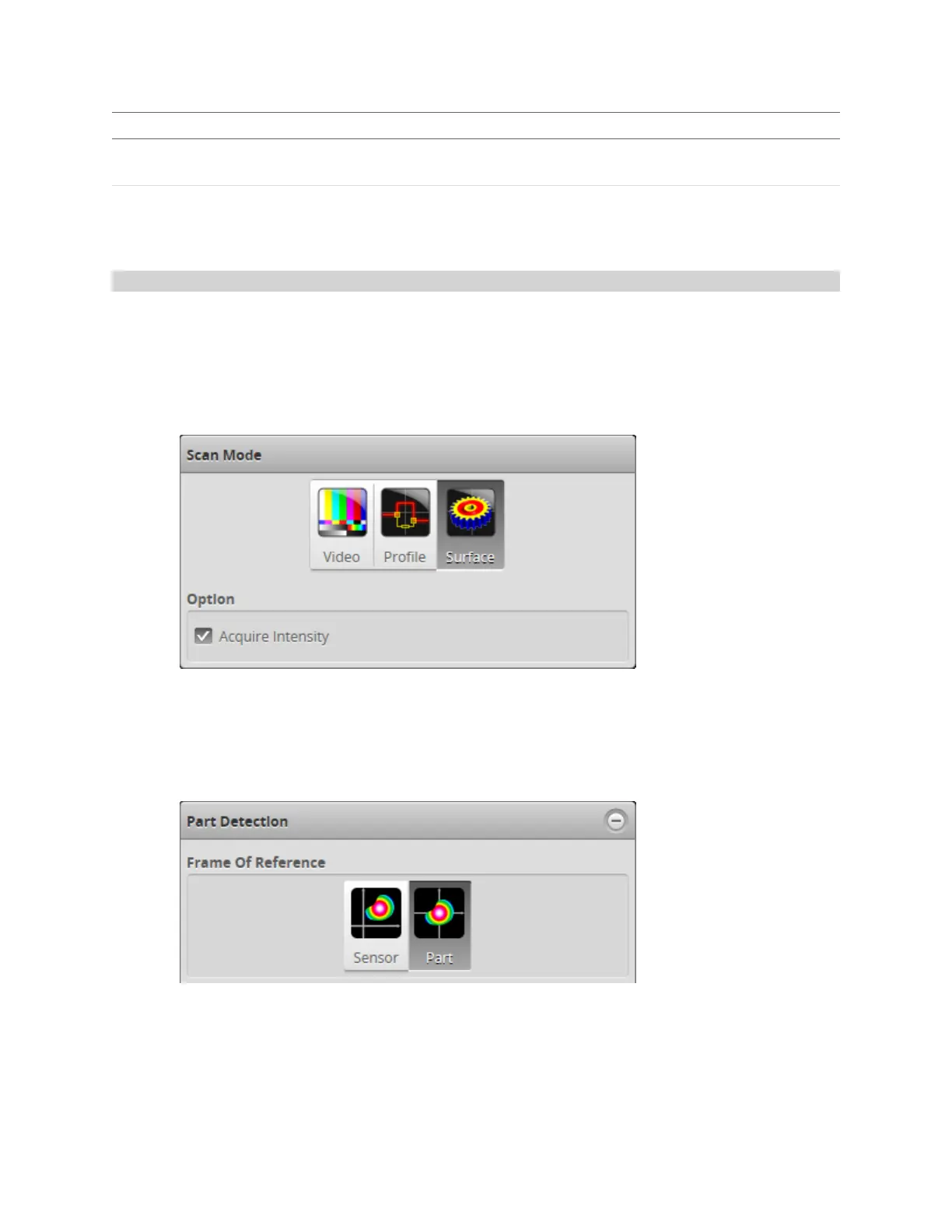

a. In the Scan Mode panel, choose Surface.
You must choose Surface in order to scan a part. Furthermore, the Model page is only displayed in
Surface mode.
Intensity data is not used when part matching using a bounding box or an ellipse, but you can enable the
Acquire Intensity option if you need intensity data for other reasons.
b. In the Part Detection panel, choose Part for the Frame of Reference.
Part matching is only available when Part has been selected.
2. Do one of the following:
l
Scan a reference part. See Scan Setup and Alignment on page 73 for more information on setting up and
aligning Gocator. See Running a Standalone Sensor System on page 36 or Running a Dual-Sensor System on
