Gocator 2300 & 2880 Series
Gocator Web Interface • Models and Part Matching • 130
In the data viewer, a bounding box or ellipse is displayed with a blue outline. If a part fits in the bounding
box or ellipse, any measurements configured on the Measure page are applied.

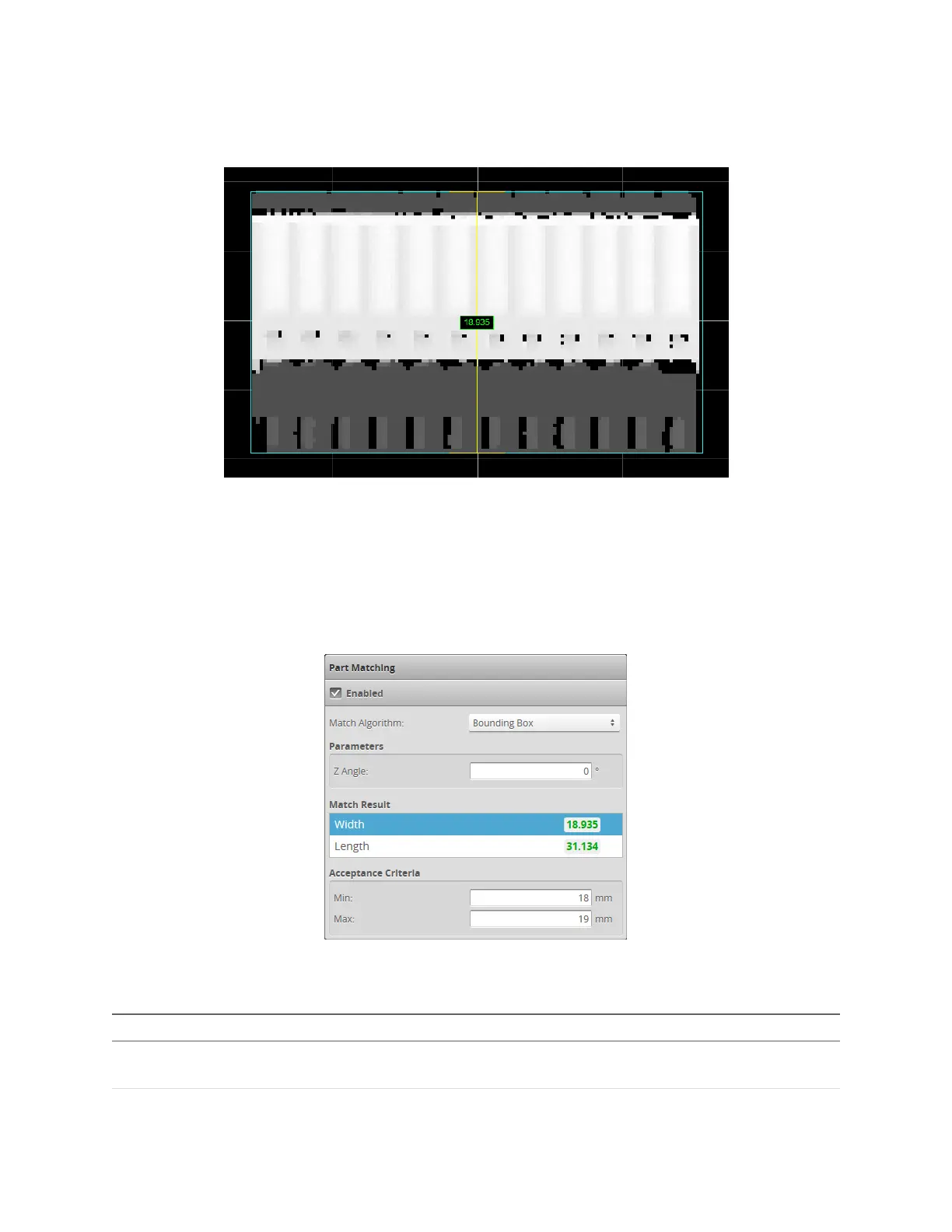

Blue bounding box around a part.
(Yellow lines show currently selected
dimension in Part Matching panel.)
Typically, setting up a bounding box or an ellipse to perform part matching involves the following steps:
1. Scan a reference part (you can also use replay data that you have previously saved).
2. Set the characteristics of the bounding box (width and length)or ellipse (major and minor axes).
Part Matching panel (Bounding Box algorithm)
The following settings are used to configure part matching using a bounding box or ellipse.
Setting Description
Match Algorithm Determines which algorithm the sensor will use to attempt a match.
Set this to
Bounding Box or Ellipse.
