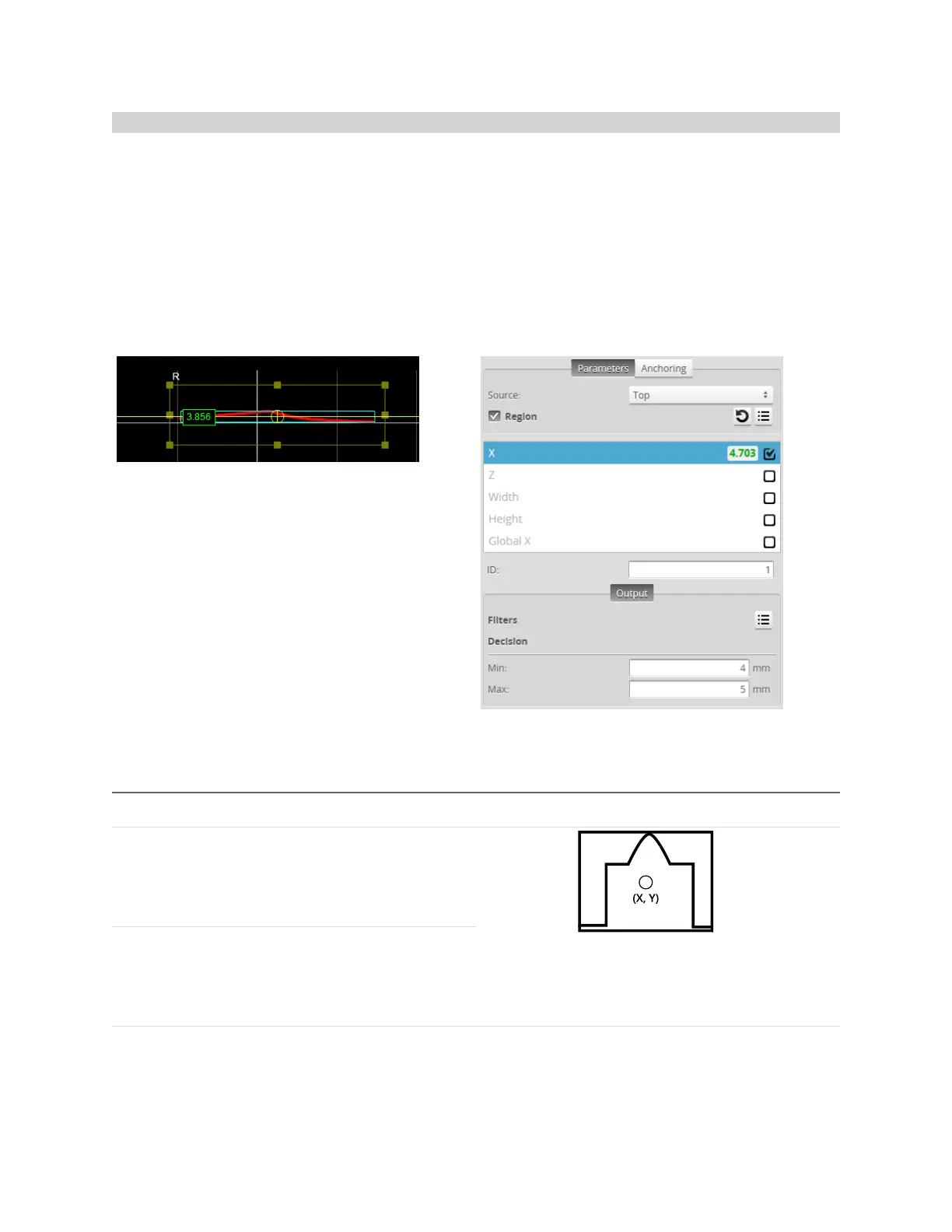

Bounding Box
The Bounding Box tool provides measurements related to the smallest rectangle box that encapsulates
the profile (for example, X position, Z position, width, etc.).
The measurement value can be compared with minimum and maximum constraints to yield a decision.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
The bounding box provides the absolute position from which the Position centroids tools are
referenced.
Measurement Panel
Measurement Illustration
X
Determines the X position of the center of the smallest
rectangle that encapsulates the profile.
The value returned is relative to the profile.
Z
Determines the Z position of the center of the smallest
rectangle that encapsulates the profile.
The value returned is relative to the profile.
