Gocator 2300 & 2880 Series
• 36
Gocator Setup
The Gocator is shipped with a default configuration that will produce laser profiles on most targets.
The following sections walk you through the steps required to set up a standalone sensor system and a
dual-sensor system for operations. After you have completed the setup, you can perform laser profiling
to verify basic sensor operation.

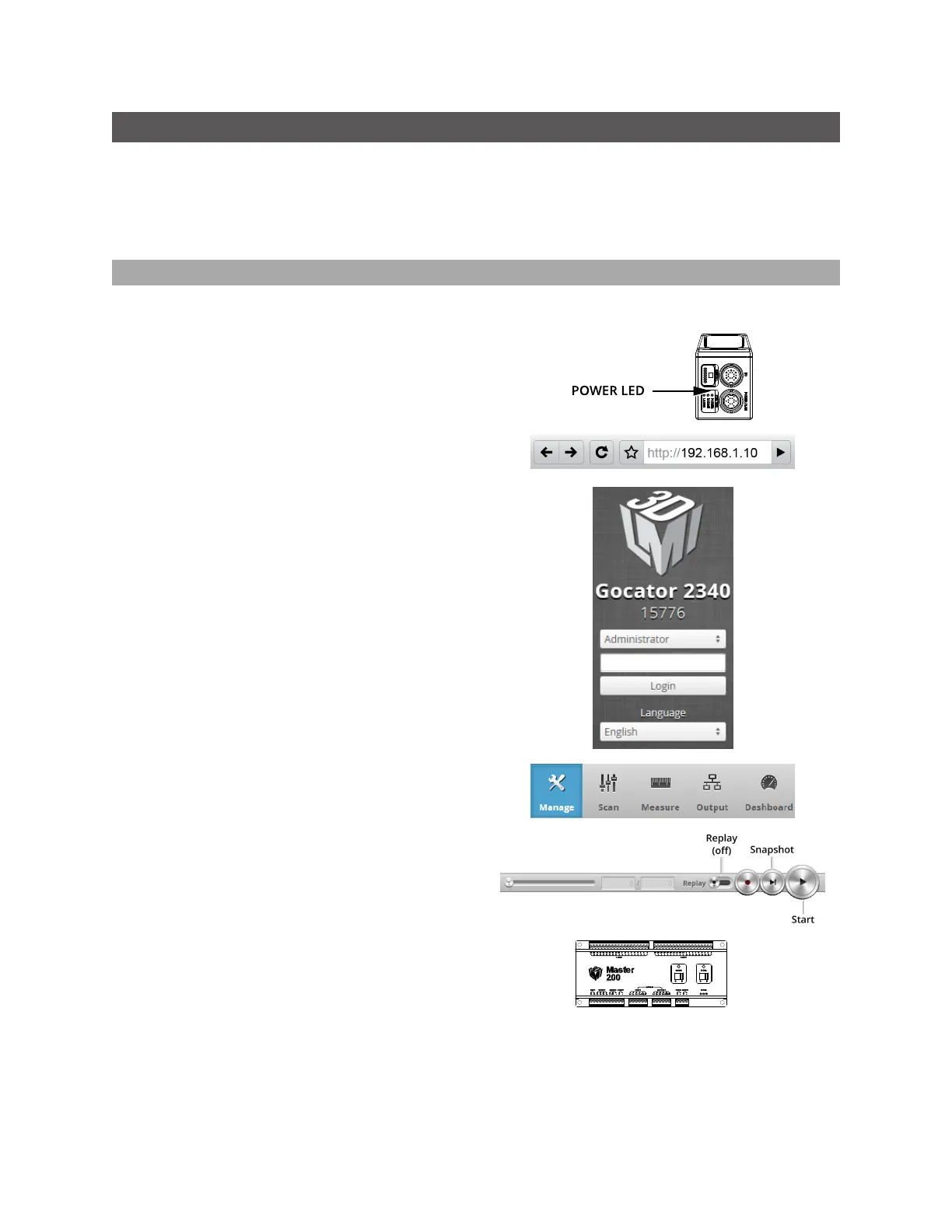

Running a Standalone Sensor System
To configure a standalone sensor system:
1. Power up the sensor.
The power indicator (blue) should turn on immediately.
2. Enter the sensor's IP address (192.168.1.10) in a web
browser.
3. Log in as Administrator with no password.
The interface display language can be changed using
the language option. After selecting the language, the
browser will refresh and the web interface will display in
the selected language.
4. Go to the Manage page.
5. Ensure that Replay mode is off (the slider is set to the
left).
6. Ensure that the Laser Safety Switch is enabled or the
Laser Safety input is high.
7. Go to the Scan page.
8. Press the Start button or the Snapshot on the Toolbar
to start the sensor.
The Start button is used to run sensors continuously.
Master 200
