Gocator Web Interface • Measurement • 155

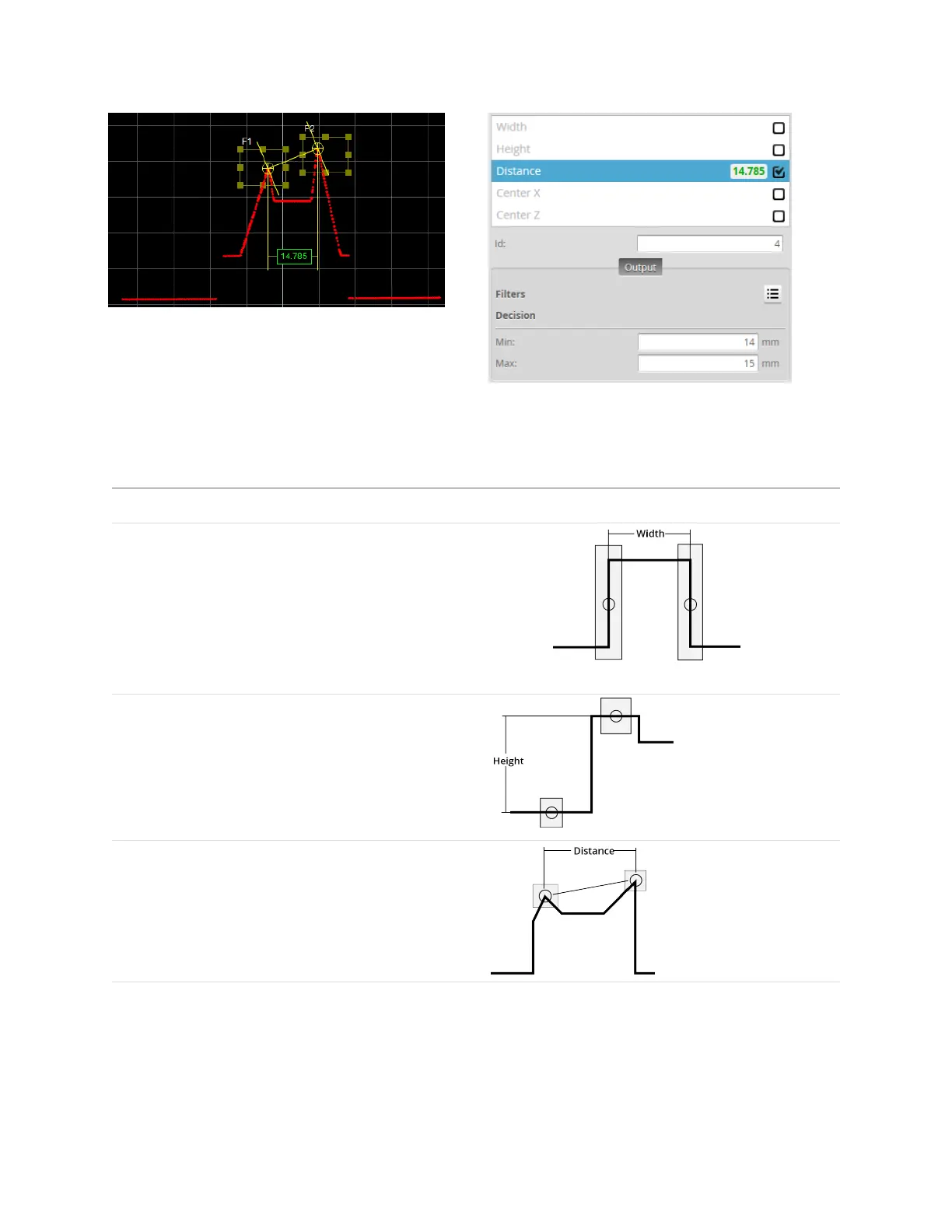

The tool's measurements require two feature points. See Feature Points on page 144 for information on
point types and how to configure them.
Measurement Illustration
Width
Determines the difference along the X axis between
two feature points.
The difference can be calculated as an absolute or
signed result. The difference is calculated by:
Width = Feature 2
X position
– Feature 1
X position
Height
Determines the difference along the Z axis between
two feature points.
The difference can be expressed as an absolute or
signed result. The difference is calculated by:
Height = Feature 2
Z position
– Feature 1
Z position
Distance
Determines the Euclidean distance between two
feature points.
Measurements
