LMI Technologies Gocator 2300 Series User Manual

Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 175

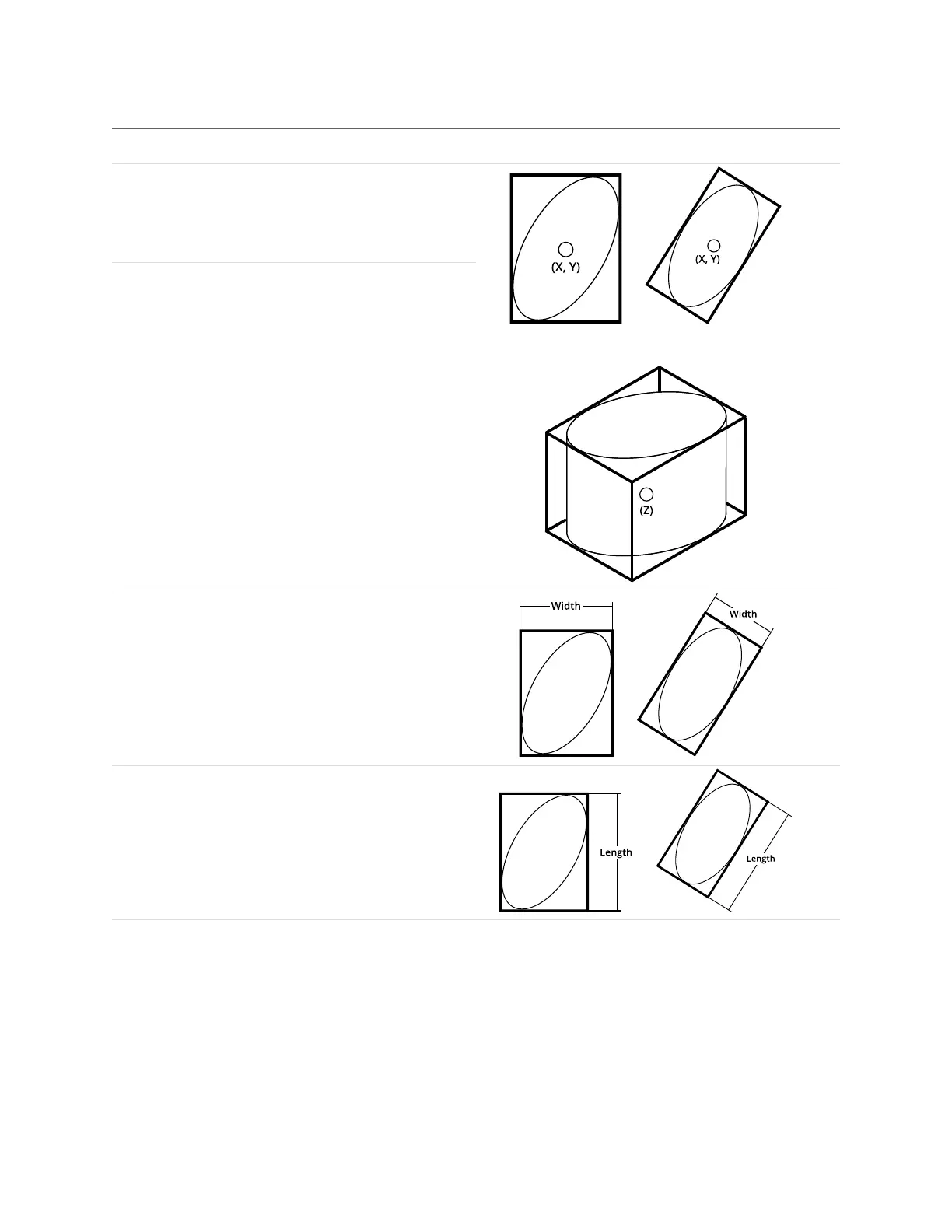

Measurement Illustration
X
Determines the X position of the center of the smallest
rectangle that encapsulates the part.
The value returned is relative to the part.
Y
Determines the Y position of the center of the smallest
rectangle that encapsulates the part.
The value returned is relative to the part.
Z
Determines the Z position of the center of the smallest
rectangle that encapsulates the part.
The value returned is relative to the part.
Width
Determines the width of the smallest rectangle box
that encapsulates the part. The width reports the
dimension of the box in the direction of the minor axis.
When rotation is enabled, the bounding box is rotated
by the angle of an ellipse fitted to the part data.
Length
Determines the length of the smallest rectangle box
that encapsulates the part. The length reports the
dimension of the box in the direction of the major axis.
When rotation is enabled, the bounding box is rotated
by the angle of an ellipse fitted to the part data.
