LMI Technologies Gocator 2300 Series User Manual

Gocator 2300 & 2880 Series

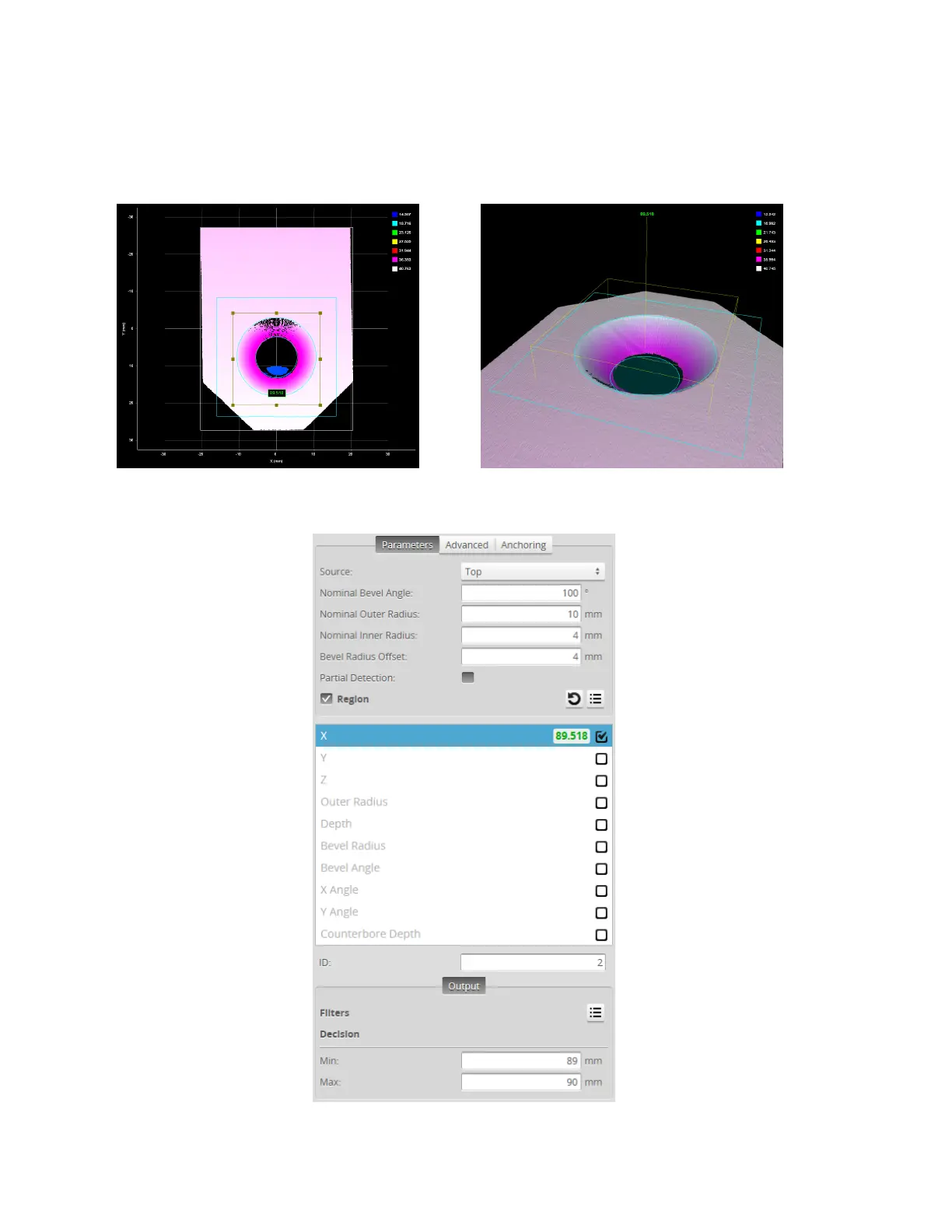

Gocator Web Interface • Measurement • 177
position (X, Y, and Z)of the center of the hole, outside radius of the hole, hole bevel angle, and the depth
of the hole. The countersunk hole can be on a surface at an angle to the sensor.
See Adding and Removing Tools on page 134 for instructions on how to add measurement tools.
2DView 3DView
