Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 140

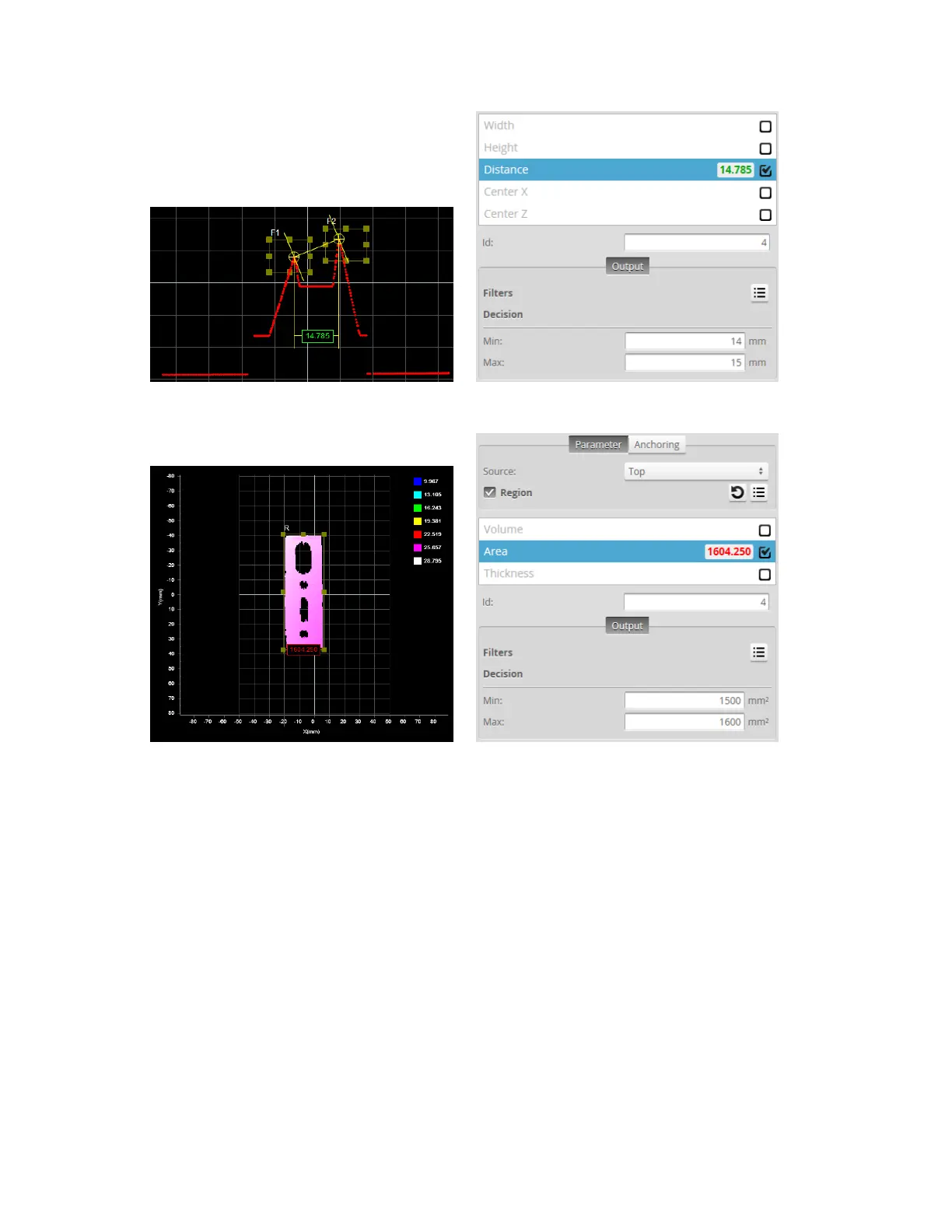

Value (14.786) within decision thresholds (Min: 14, Max: 15). Decision: Pass
Value (1604.250) outside decision thresholds (Min: 1500, Max: 1600). Decision: Fail
Along with measurement values, decisions can be sent to external programs and devices. In particular,
decisions are often used with digital outputs to trigger an external event in response to a measurement.
See Output on page 209 for more information on transmitting values and decisions.
To configure decisions:
1. Go to the Scan page by clicking on the Scan icon.
2. Choose Profile or Surface mode in the Scan Mode panel, depending on the type of measurement
whose decision you need to configure.
If one of these modes is not selected, tools will not be available in the Measure panel.
3. Go to the Measure page by clicking on the Measure icon.
4. In the Tools panel, click on a tool in the tool list.
