Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 159
Parameter Description
Location
(Groove X and
Groove Z
measurements
only)

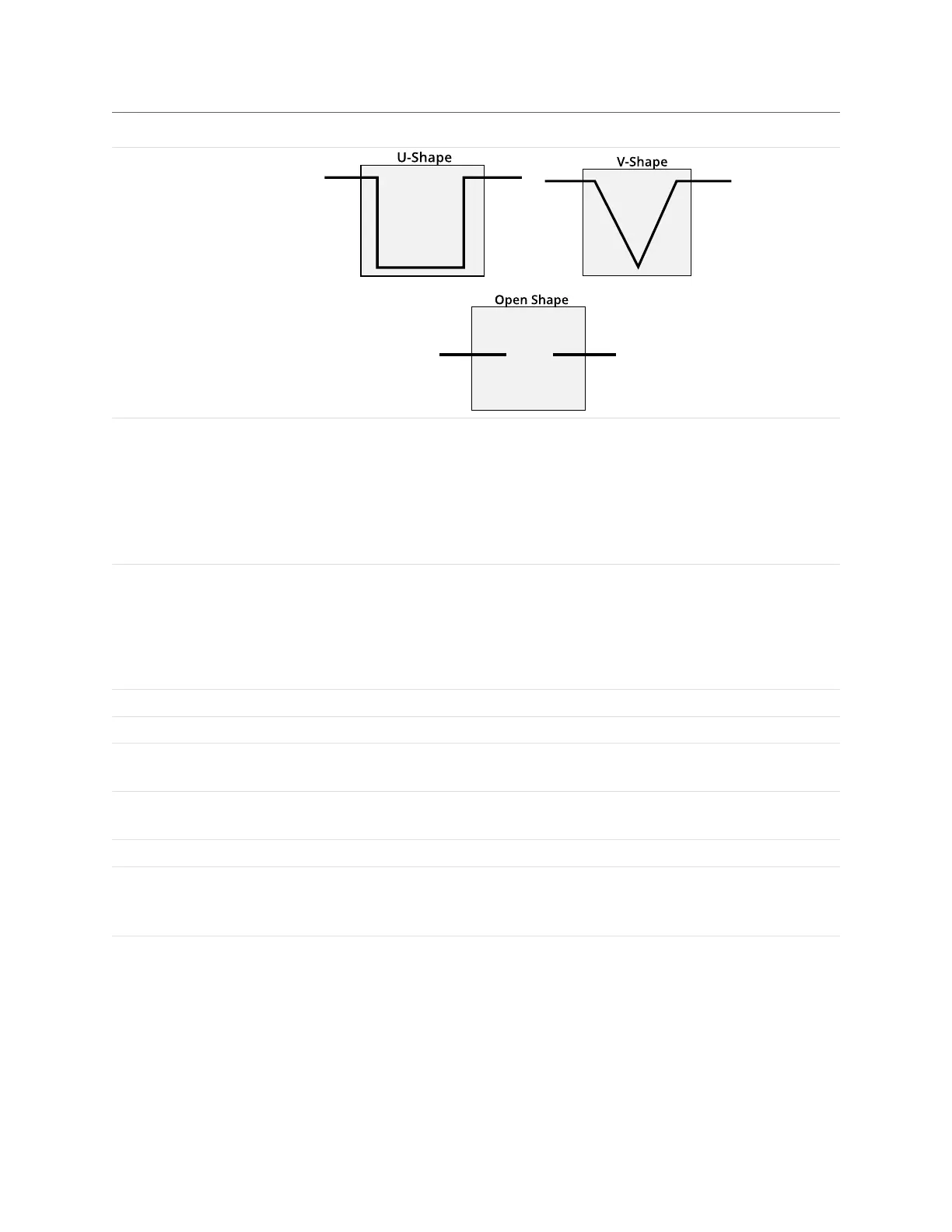

Specifies the location type to return
Bottom - Groove bottom. For a U-shape and open-shape groove, the X position is at the
centroid of the groove. For a V-shape groove, the X position is at the intersection of lines
fitted to the left and right sides of the groove. See algorithm section below for more details.
Left - Groove's left corner.
Right - Groove's right corner.
Select Type Specifies how a groove is selected when there are multiple grooves within the
measurement area.
Maximum Depth - Groove with maximum depth.
Index from The Left - 0-based groove index, counting from left to right
Index from the Right - 0-based groove index, counting from right to left.
Index 0-based groove index.
Minimum Depth Minimum depth for a groove to be considered valid.
Minimum Width Minimum width for a groove to be considered valid. The width is the distance between the
groove corners.
Maximum Width Maximum width of a groove to be considered valid. If set to 0, the maximum is set to the
width of the measurement area.
Decision See Decisions on page 139.
Region The measurement region defines the region in which to search for the groove. For a stable
measurement, the measurement region should be made large enough to cover some laser
data on the left and right sides of the groove. See Regions on page 139.
