Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 198

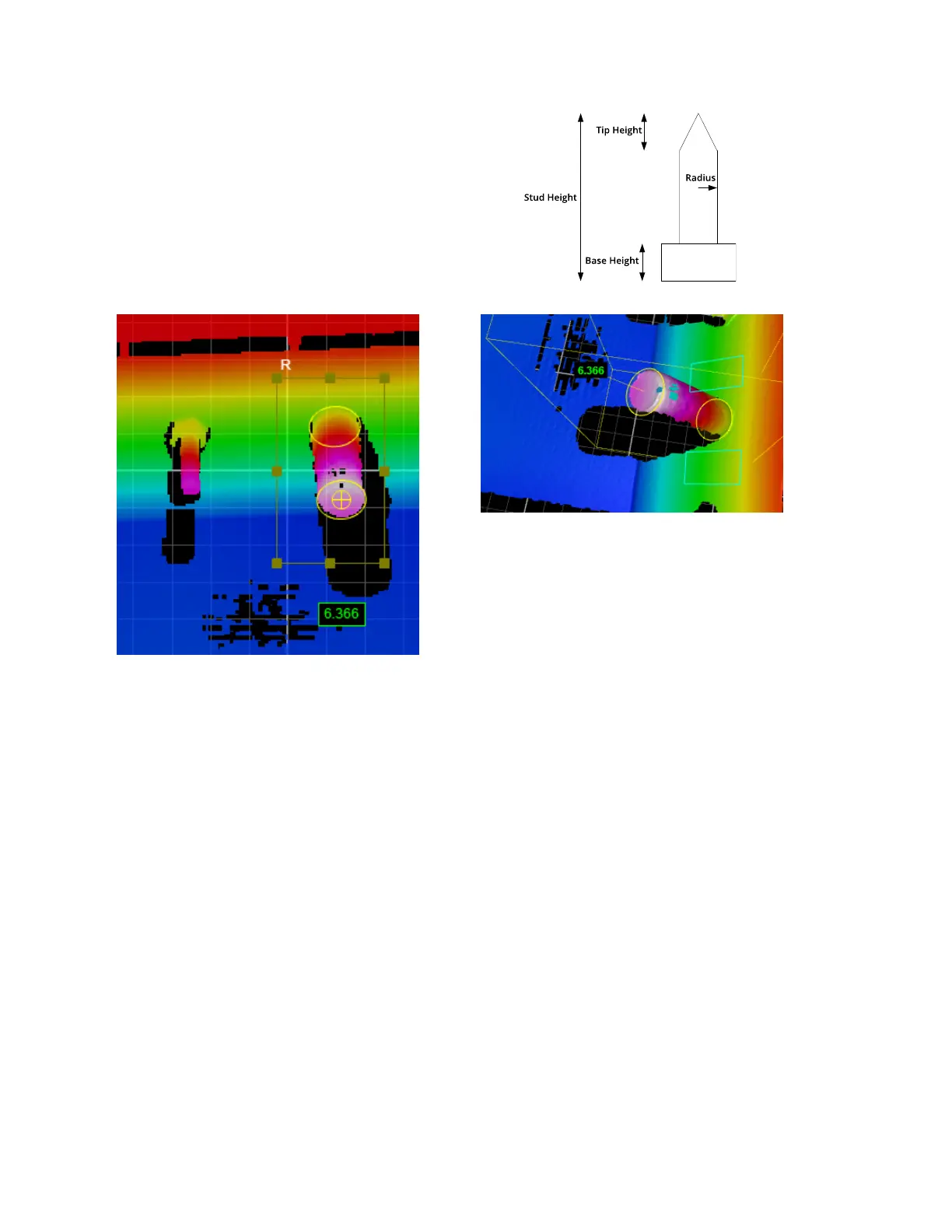

The stud shape is defined by the tip height and
base height. The base and tip heights specify
where the shaft with the nominal radius begins
and ends.
2DView
3DView
