Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 200

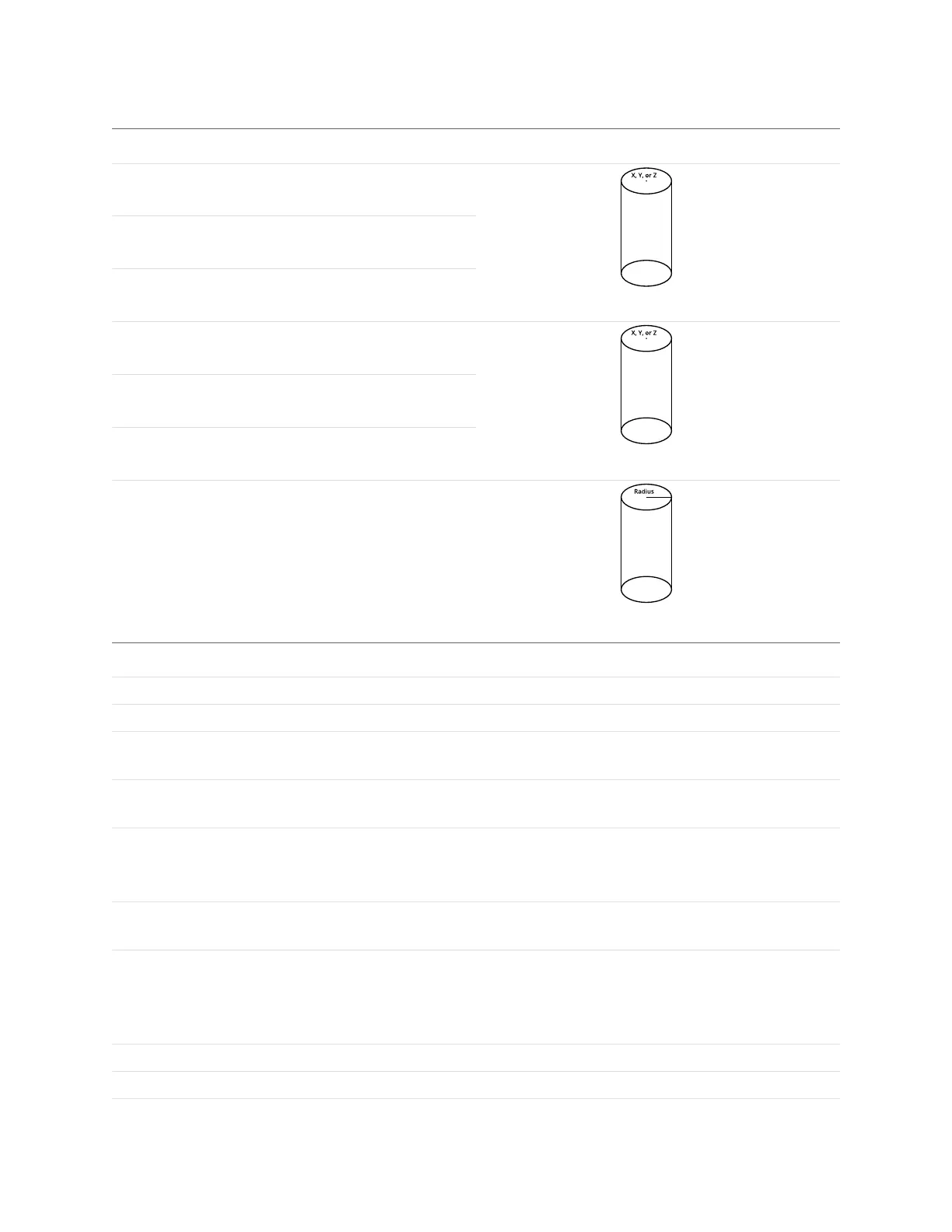

Measurement Illustration
Tip X
Determines the X position of the stud tip.
Tip Y
Determines the Y position of the stud tip.
Tip Z
Determines the Zposition of the stud tip.
Base X
Determines the X position of the stud base.
Base Y
Determines the Y position of the stud base.
Base Z
Determines the Z position of the stud base.
Radius
Determines the radius of the stud.
Measurements
Parameter Description
Nominal Stud Radius Expected radius of the stud.
Nominal Stud Length Expected length of the stud.
Base Height The height above the base surface that will be ignored when the (truncated) cone is
fit to the stud data.
Tip Height The height from the top of the surface that will be ignored when the (truncated) cone
is fit to the stud data.
Radius Offset
(Radius measurement
only)
The distance from the tip of the stud from which the radius is measured.
Reference Regions The algorithm uses reference regions to calculate the base plane of the stud.
Reference regions are relative to the base of the stud.
Tilt Correction Tilt of the target with respect to the alignment plane. Set to Auto-Set to have the tool
automatically detect the tilt, or enter the angles manually. Auto-Set requires the
measurement region to cover more areas on the surface plane than other planes.
The results from the Plane X and Y tool can be used for angles X and Y parameters.
Decision See Decisions on page 139.
Region See Regions on page 139.
Output See Filters on page 141.
