Inserting diagram sheets
H
Only insert diagram sheets that are properly marked.
The diagram sheets are always inserted with the front facing upwards.

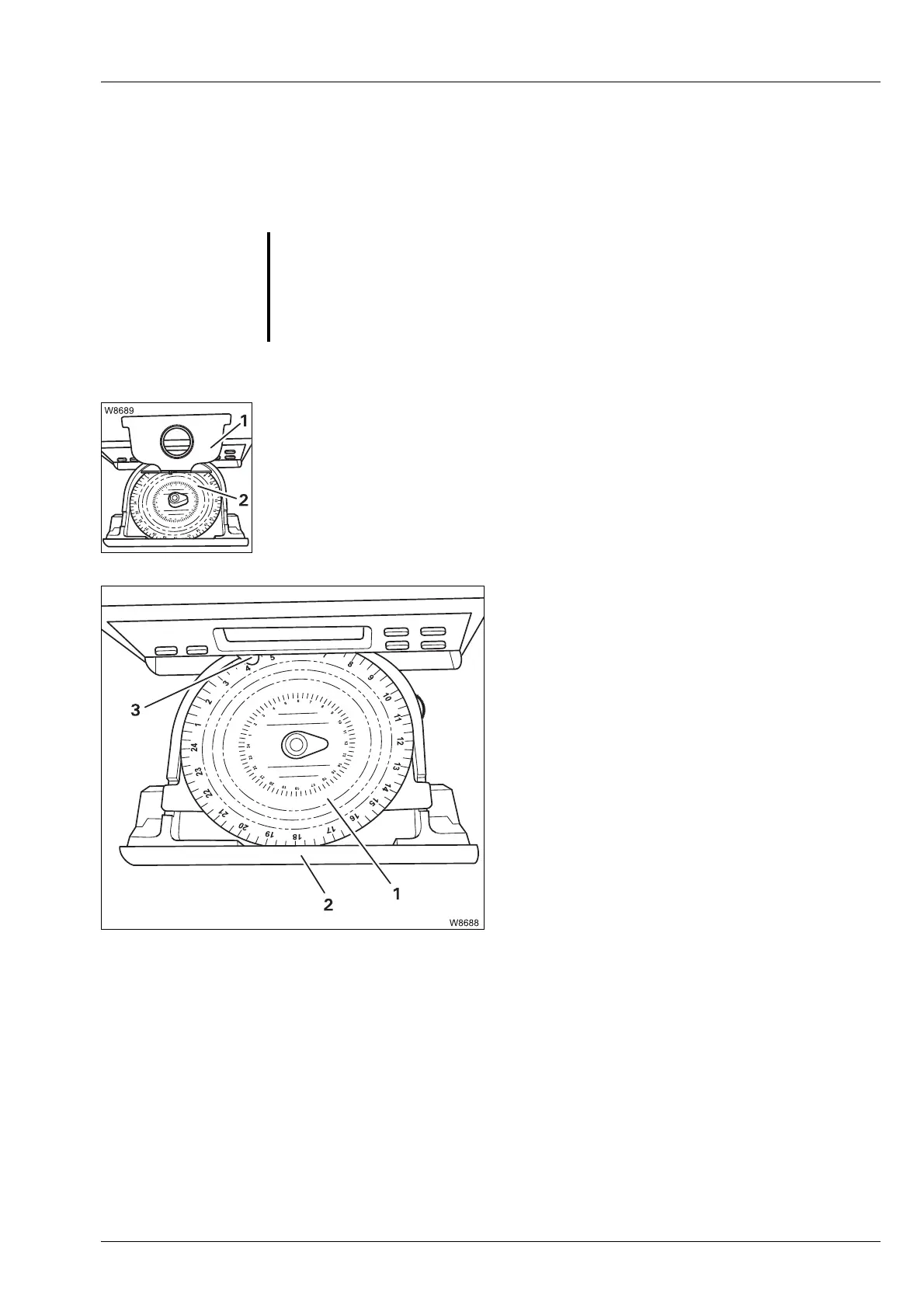

With 2-driver operation a diagram sheet (2) for driver 2 must be placed
below the isolating plate (1):
– After checking the time, leave the diagram sheet (2) where it is.
– After checking the time, insert the diagram sheet (2).
• Fold the isolating plate downwards.
• Put the diagram sheet (1) for driver 1 on the
isolating plate.
• Take care that the diagram sheet is under
the holder (3).
• Push the drawer (2) back in until it engages.
For single-driver operation, the diagram sheet
mounting under the isolating plate is empty
and only the diagram sheet (1) for driver 1 is
inserted.
s
S
Risk of malfunctions in the electronics!
If a diagram sheet has been damaged by being marked several times, this
might cause malfunctions in the electronics. Always insert the plastic
diagram sheet supplied should you not need to use the tachograph.
