Driving
5.4 Off-road driving
Operating Instructions GMK5250L 3 302 633 en 5 - 53
27.09.2017

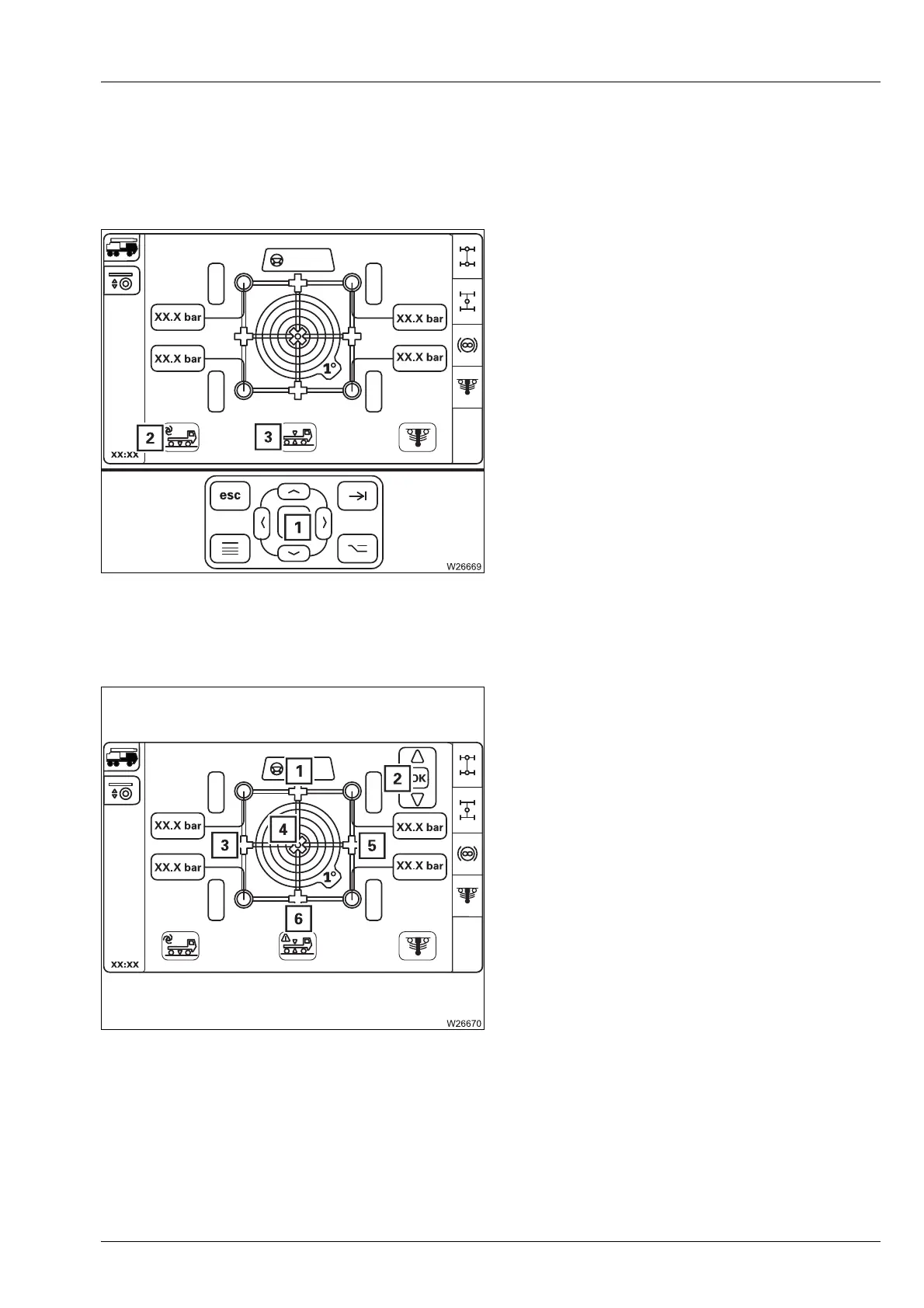

Setting the
on-road level
For on-road driving, you must always set the on-road level in order to
adhere to the specified overall height.
• Park the truck crane on a level surface.
• Straighten the steering.
• Select the symbol (2) – symbol is orange.
• Press the button (1) until the symbol (3) is
displayed – on-road level has been reached.
Pre-selecting
suspension struts
You can pre-select the suspension struts for five different level changes.
– For a uniform level change
– For inclination
• Select and confirm the desired symbol – the
symbol turns orange and the symbol (2) is
also displayed.
s
4 Overall level – all suspension struts
1 Front level – suspension strut for the
1st to the 3rd axle line
3 Left level – all suspension struts on the
left
5 Right level – all suspension struts on
the right
6 Rear level – suspension struts for the
4th and 5th axle line
