Operating elements for crane operation
8.1 Overview of the operating elements
8 - 28 3 302 633 en Operating Instructions GMK5250L
27.09.2017

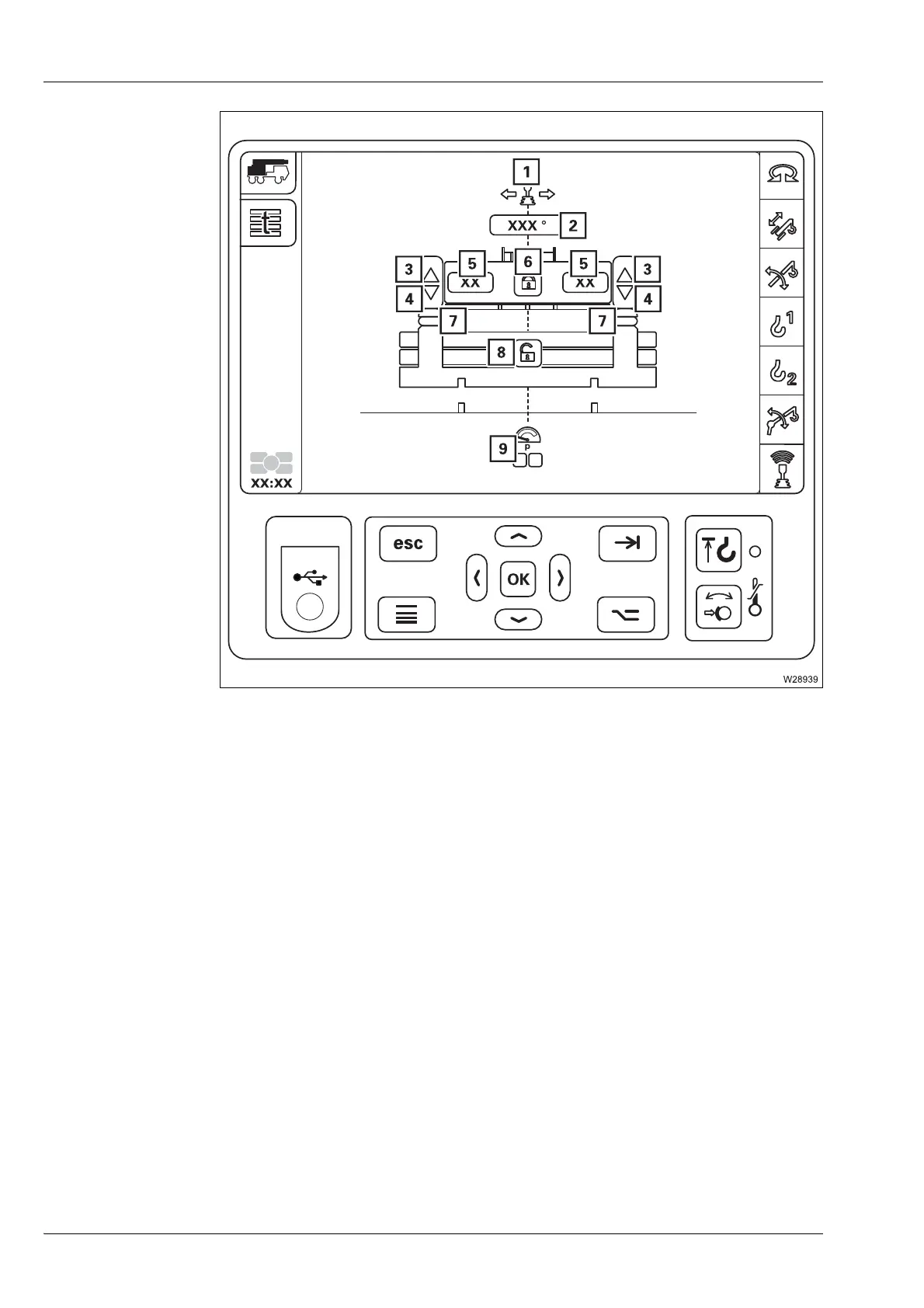

Counterweight
menu
1 Display of slewing direction for automatic mode à p. 8 - 105
2 Current slewing angle display
à p. 8 - 108
3 Retracting the lifting cylinders
à p. 8 - 107
4 Extending the lifting cylinders
à p. 8 - 107
5 Lifting cylinder position percentage indicator
à p. 8 - 107
6 Automatic mode rigging
à p. 8 - 106
7 Lifting cylinder position display
à p. 8 - 107
8 Automatic mode unrigging
à p. 8 - 106
9 Pre-tensioning pressure display
à p. 8 - 107
