Manitowoc Grove GMK 5250L

Operating elements for crane operation
8.1 Overview of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 27
27.09.2017

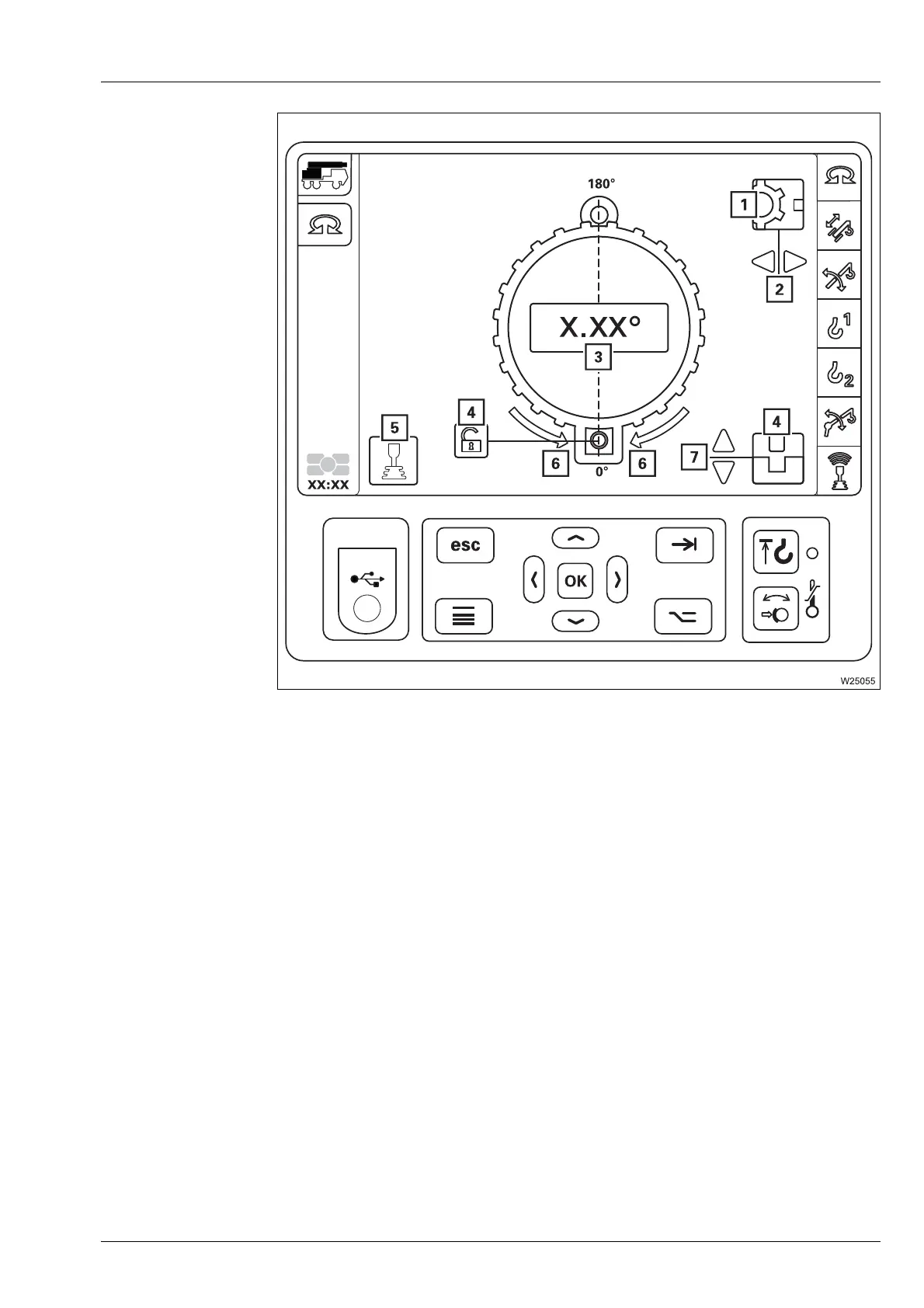

Superstructure
lock sub-menu
s
1 House lock locking status displays
1)
à p. 8 - 125
2 Houselock on/off
1)
à p. 8 - 125
3 Current slewing angle display
1)
à p. 8 - 125
4 Turntable locking status display
à p. 8 - 124
5 Slewing request
6 Display of slewing direction to 0°/180°
à p. 8 - 125
7 Locking/unlocking turntable
à p. 8 - 124
1)
Additional equipment
