Operating elements for crane operation
8.1 Overview of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 47
27.09.2017

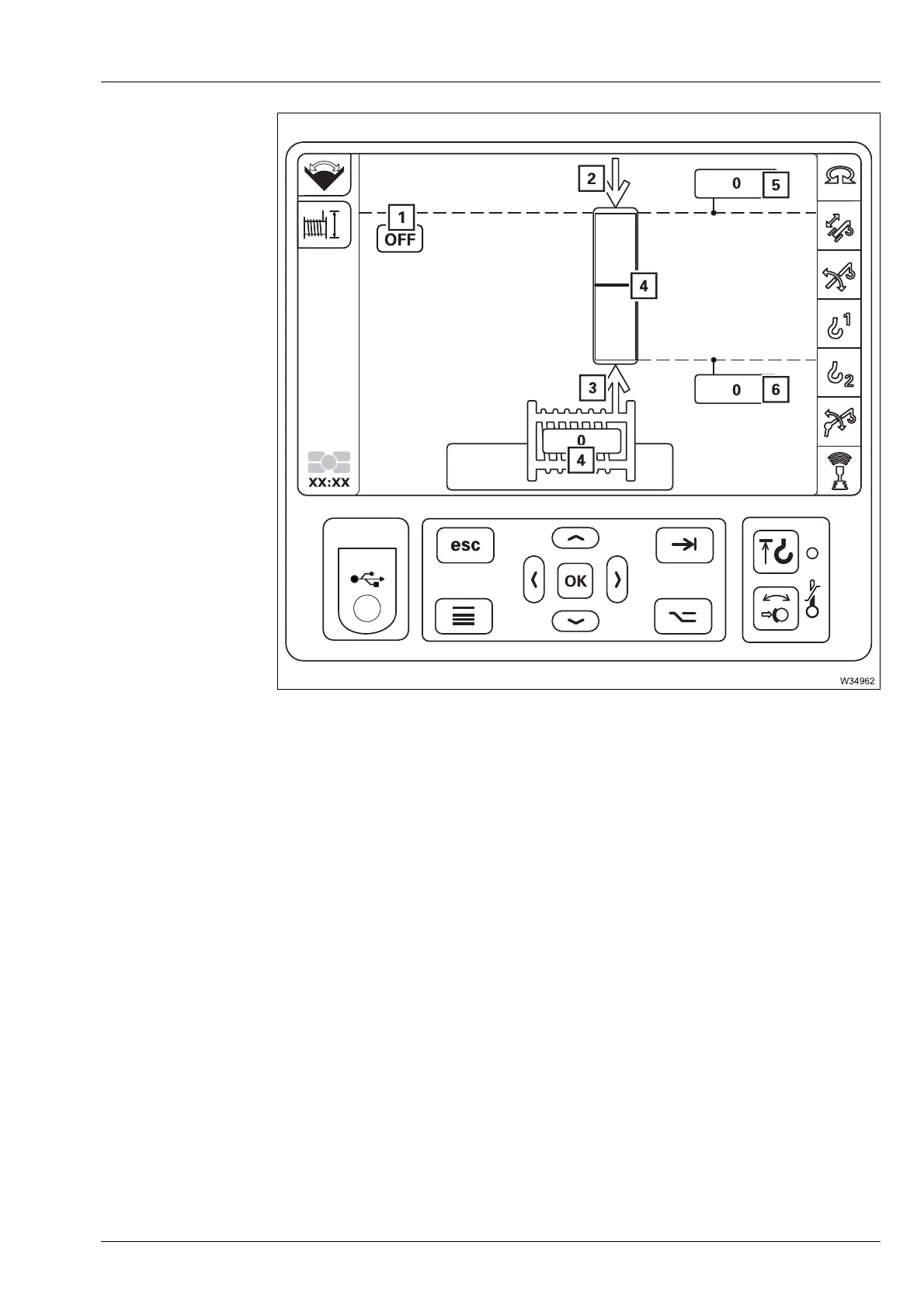

Hoist rope travel
limitation menu
1 Switching monitoring function on/off à p. 10 - 142
2 Input confirmation display, top
à p. 10 - 138
3 Input confirmation display, bottom
à p. 10 - 138
4 Current hoist rope position display
à p. 10 - 138
5 – Hoist rope travel limitation input, top
– Upper Hoist rope travel limitation display
à p. 10 - 138
à p. 10 - 135
6 – Hoist rope travel limitation input, bottom
– Hoist rope travel limitation input, bottom
à p. 10 - 138
à p. 10 - 135
