Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 91
27.09.2017

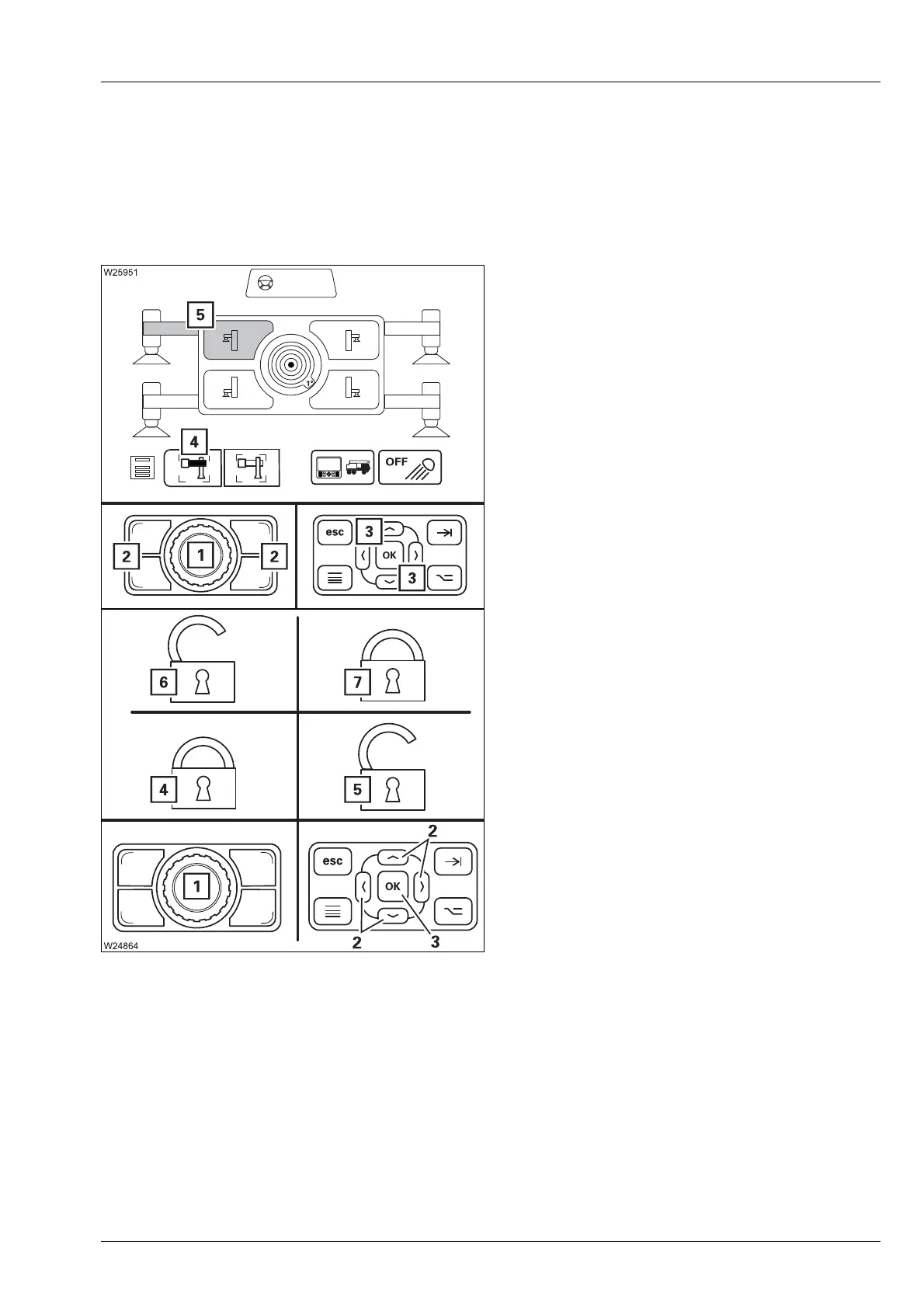

– For carrying out movements during rigging.
The required element is marked e.g. outrigger cylinder (1).
– For turning on/off and switching
A symbol for a status is marked, e.g. symbol (2).
Executing a movement
– Select function
– Move function
Turning on/off and switching
– Selecting status
– Switch on state
s
3Press or 1 Turn
– The marked function (4) or (5) is selected.
2Press
– The selected function is carried out.
2Press or 1 Turn
– The marked state (4) or (6) is selected.
1Press or 3Press
– The selected state (5) or (7) is established.
