Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 132 3 302 633 en Operating Instructions GMK5250L
27.09.2017
Boom system display
Boom system entry
For the
Standard slewing range type only.
In input mode – select and confirm the boom system
Input lattice extension – the length before the angle
In input mode – select and confirm length.
Input lattice extension – the length after the angle
In input mode – select and confirm length.
Input lattice extension – angle
Only for manually inclinable lattice extensions
In input mode – select and confirm the angle.
à Enter rigging mode, p. 10 - 32

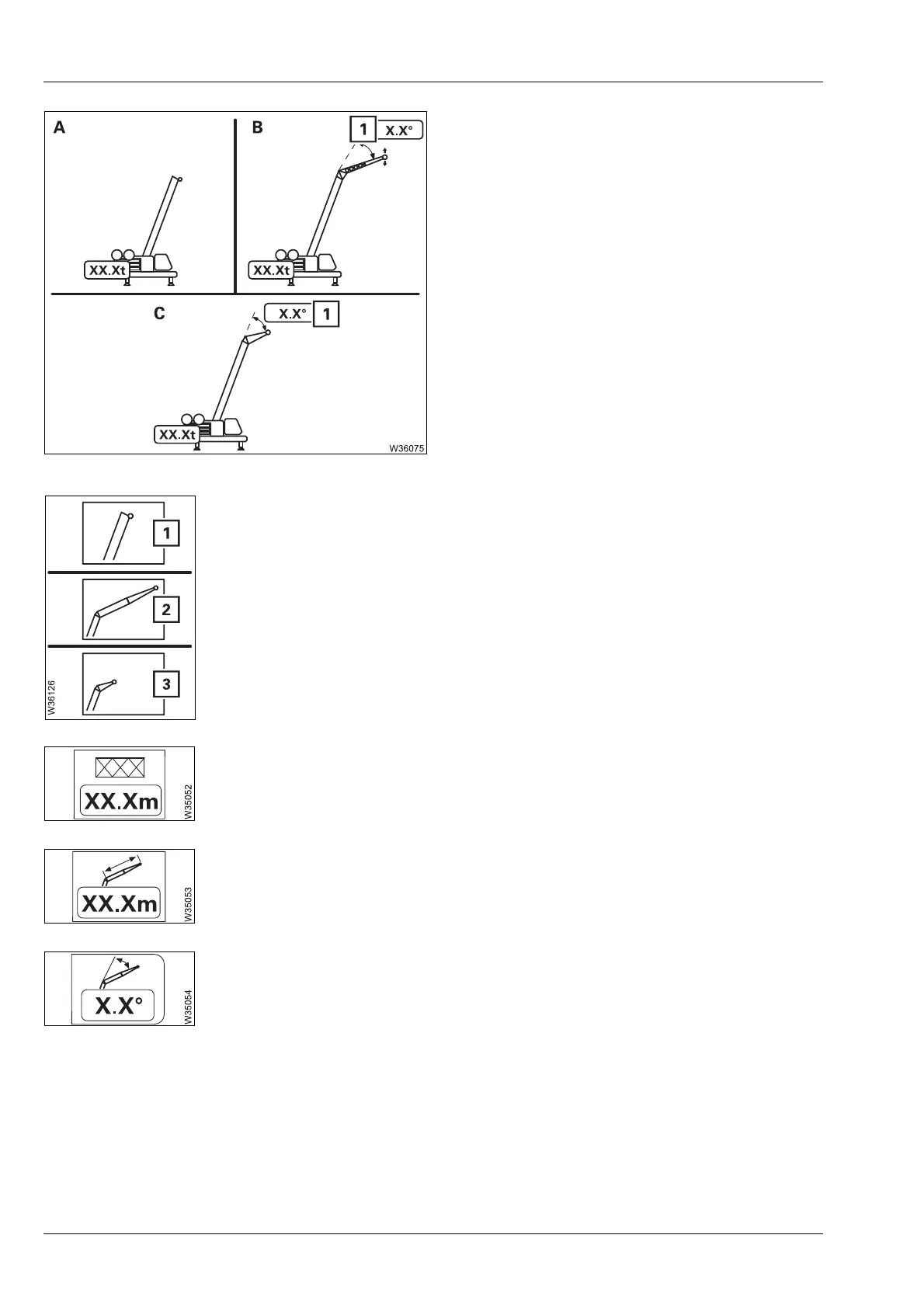

A Main boom display
B Lattice extension display
C Heavy load lattice extension display
1 Angle of the lattice extension display
(for inclinable lattice extension)
1 Main boom
2 Lattice extension/boom extension
3 Heavy load lattice extension
