Crane operation
10.4 Operation of the rated capacity limiter
10 - 34 3 302 633 en Operating Instructions GMK5250L
27.09.2017
For the Standard slewing range type

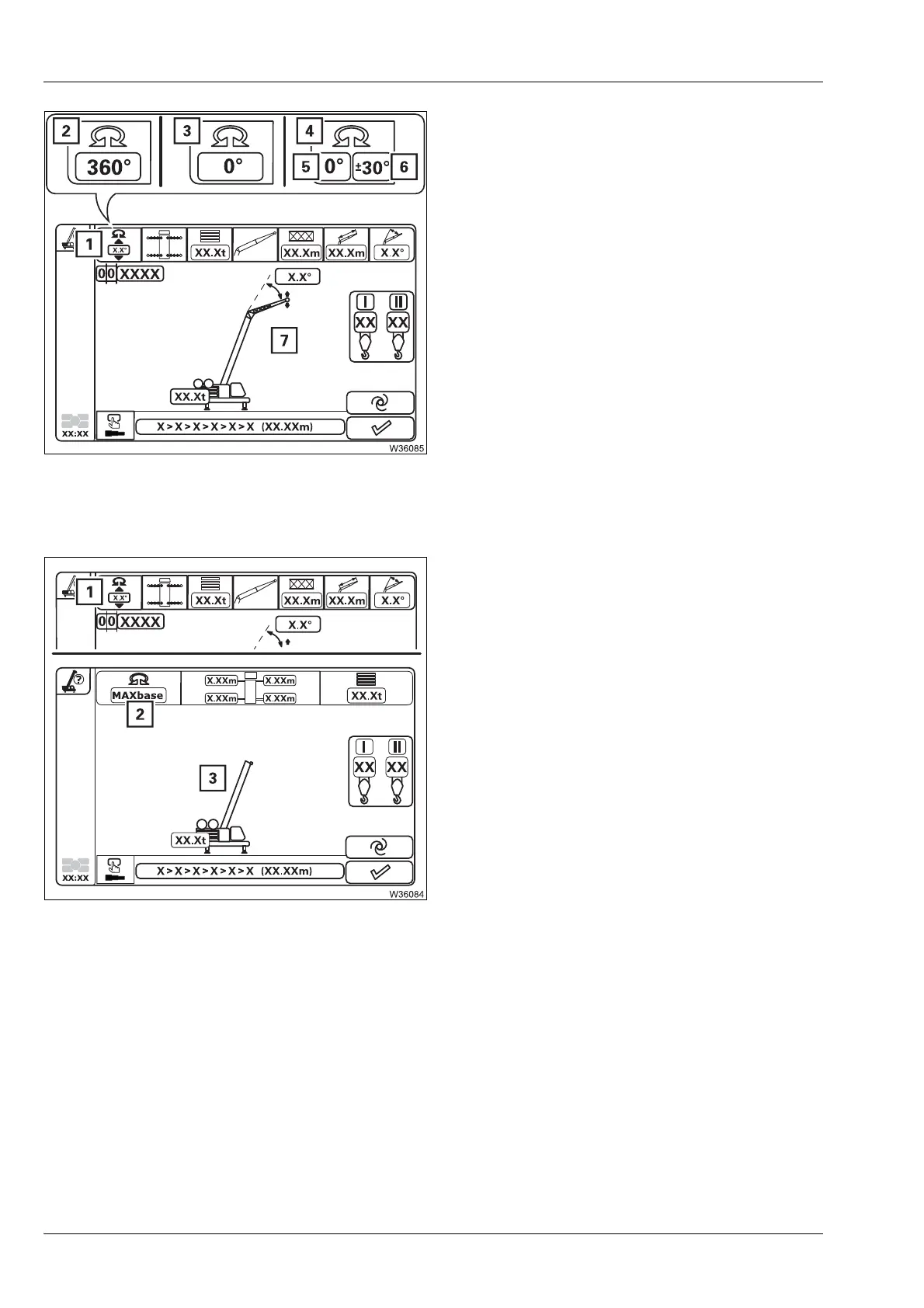

• Select and confirm the display (1).
• Select and confirm the symbol for the
desired slewing range.
• After confirming, the menu (7) is displayed
for further rigging mode entry.
– Entry via RCL code;
à p. 10 - 40.
– Entry via individual components;
à p. 10 - 34.
For the
MAXbase slewing range type
• Select and confirm the display (1).
• Select and confirm the symbol (2).
• After confirming, the menu (3) is displayed
for further rigging mode entry.
Enter the rigging mode;
à p. 10 - 34.
Entering individ-
ual components
Only enabled rigging modes can be selected. For this reason, the selection
possibilities for the individual components are based on the already entered
and confirmed components.
2 360° slewing range
3 Working position 0°to the rear
4 Limited slewing range
5 Working position – e.g.
0°to the rear
6 Slewing range, e.g. ±30°
