Crane operation
10.4 Operation of the rated capacity limiter
10 - 46 3 302 633 en Operating Instructions GMK5250L
27.09.2017

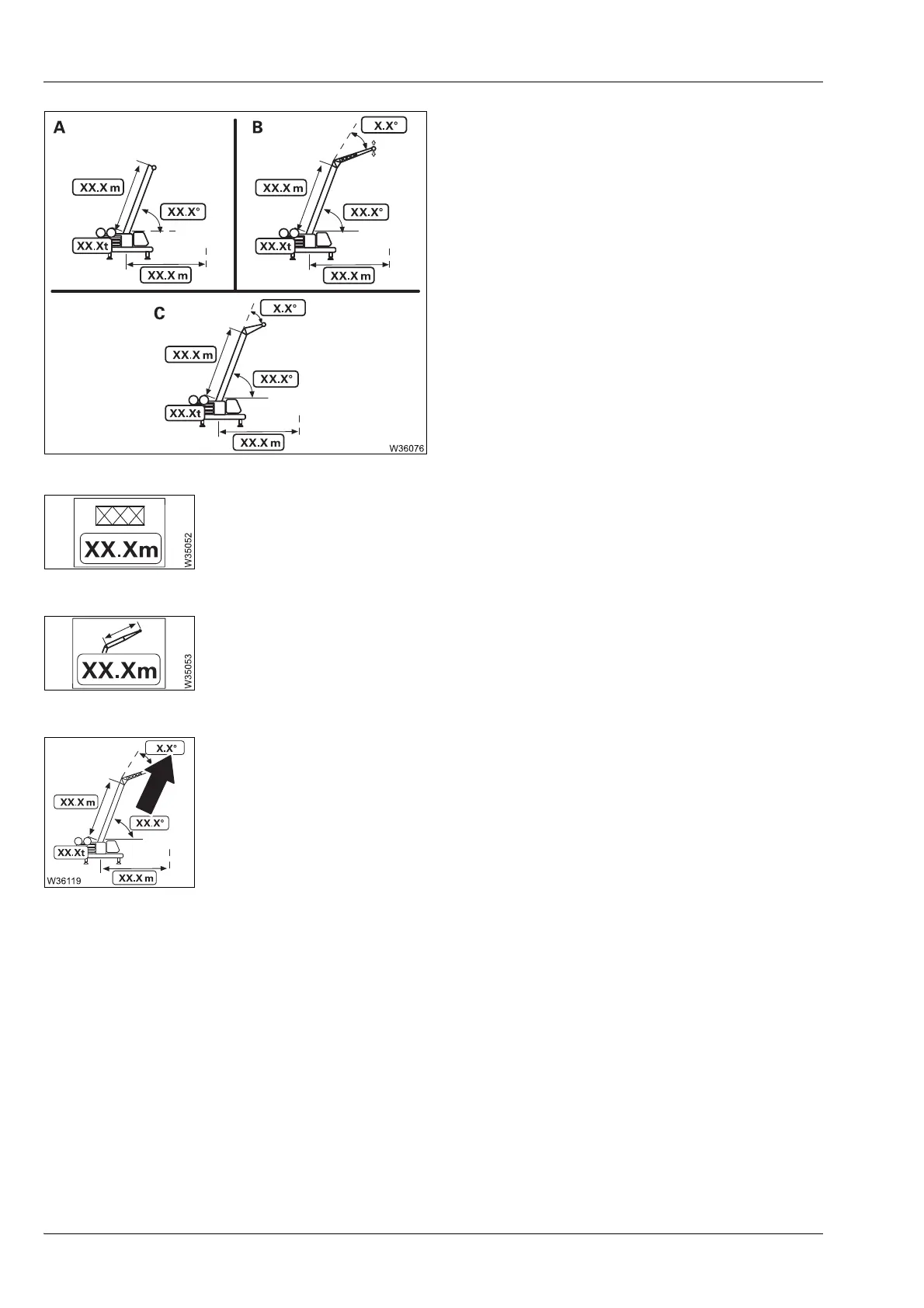

Boom system display
Shows the boom system corresponding to the
confirmed rigging mode.
Lattice extension display – length before the angle
Shows the required length of lattice extension before the angle according to
the confirmed rigging mode – in metres (m) or feet (ft).
Lattice extension display – length after the angle
Shows the required length of lattice extension after the angle according to
the confirmed rigging mode – in metres (m) or feet (ft).
Lattice extension display – angle
Only for manually inclinable lattice extensions
Shows the required angle of the lattice extension for the confirmed rigging
mode.
A Main boom
B Swing-away lattice extension
1)
/ boom
extension
1)
C Heavy load lattice extension
1)
1)
For the Standard slewing range type only.
The lattice extension must be electrically
connected.
