Crane operation
10.4 Operation of the rated capacity limiter
Operating Instructions GMK5250L 3 302 633 en 10 - 47
27.09.2017
Display of reeving used
Hoist checks You must check that the RCL uses the correct reeving data.
The RCL always uses the reeving data for the first hoist to be switched on.
• Check the symbol (1) or (2) for the hoist with
which you wish to lift the load. The symbol
must be orange.
If the symbol is grey, e.g. the symbol (1) for the
main hoist, then you must switch over the
display.

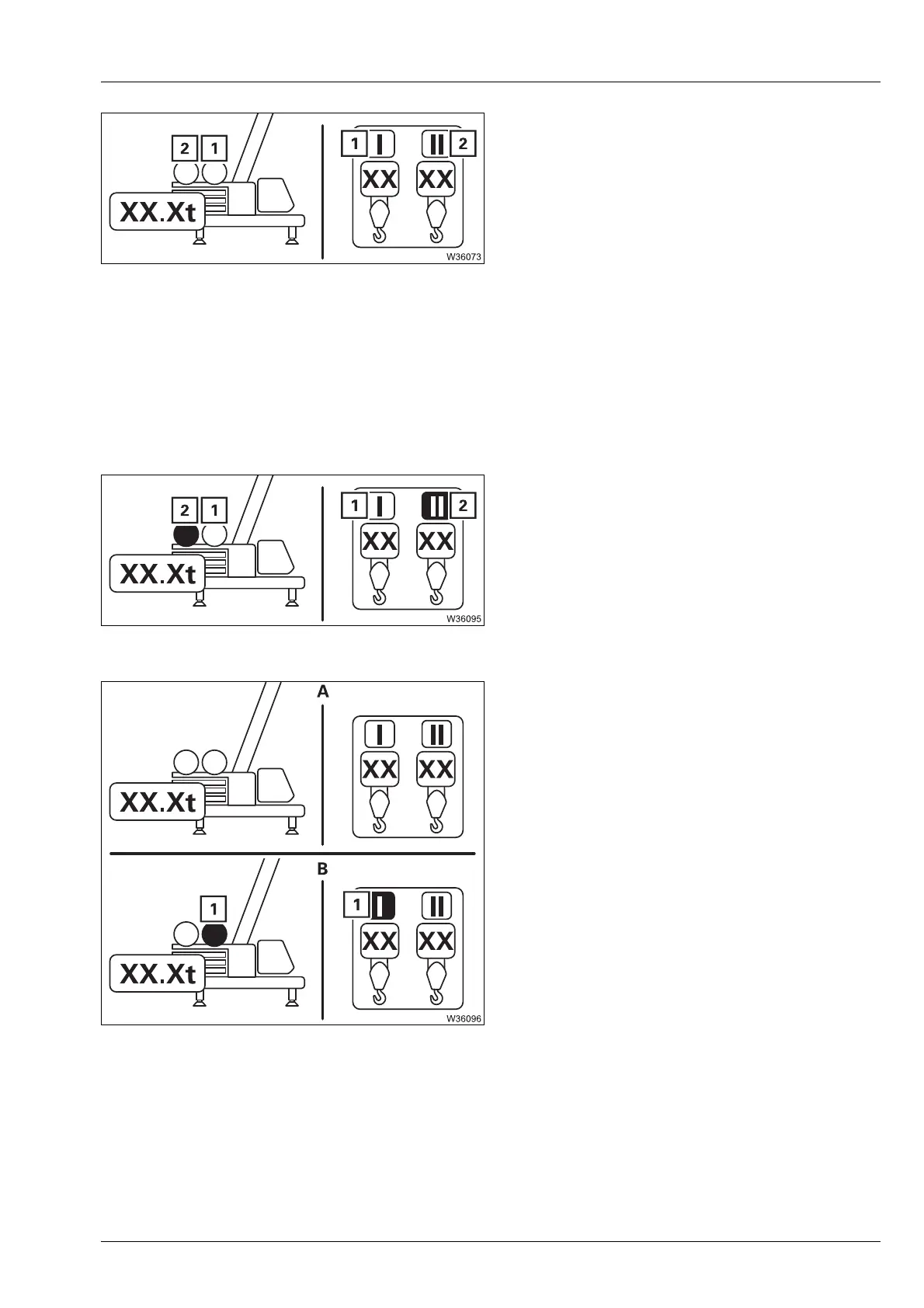

Switching over the display
• (A) – Switch off both hoists – both symbols
become grey.
• (B) – Switch on the hoist with which you
wish to lift the load.
The corresponding symbol becomes
orange, e.g. the symbol (1) for the main
hoist.
s
1 Main hoist
2 Auxiliary hoist
Orange: Used
1)
Grey: Not used
1)
The value on the Maximum load display applies to this reeving.
You may need to switch over the display if necessary;
à p. 10 - 47.
