Crane operation
10.5 Crane operation with main boom
10 - 104 3 302 633 en Operating Instructions GMK5250L
27.09.2017

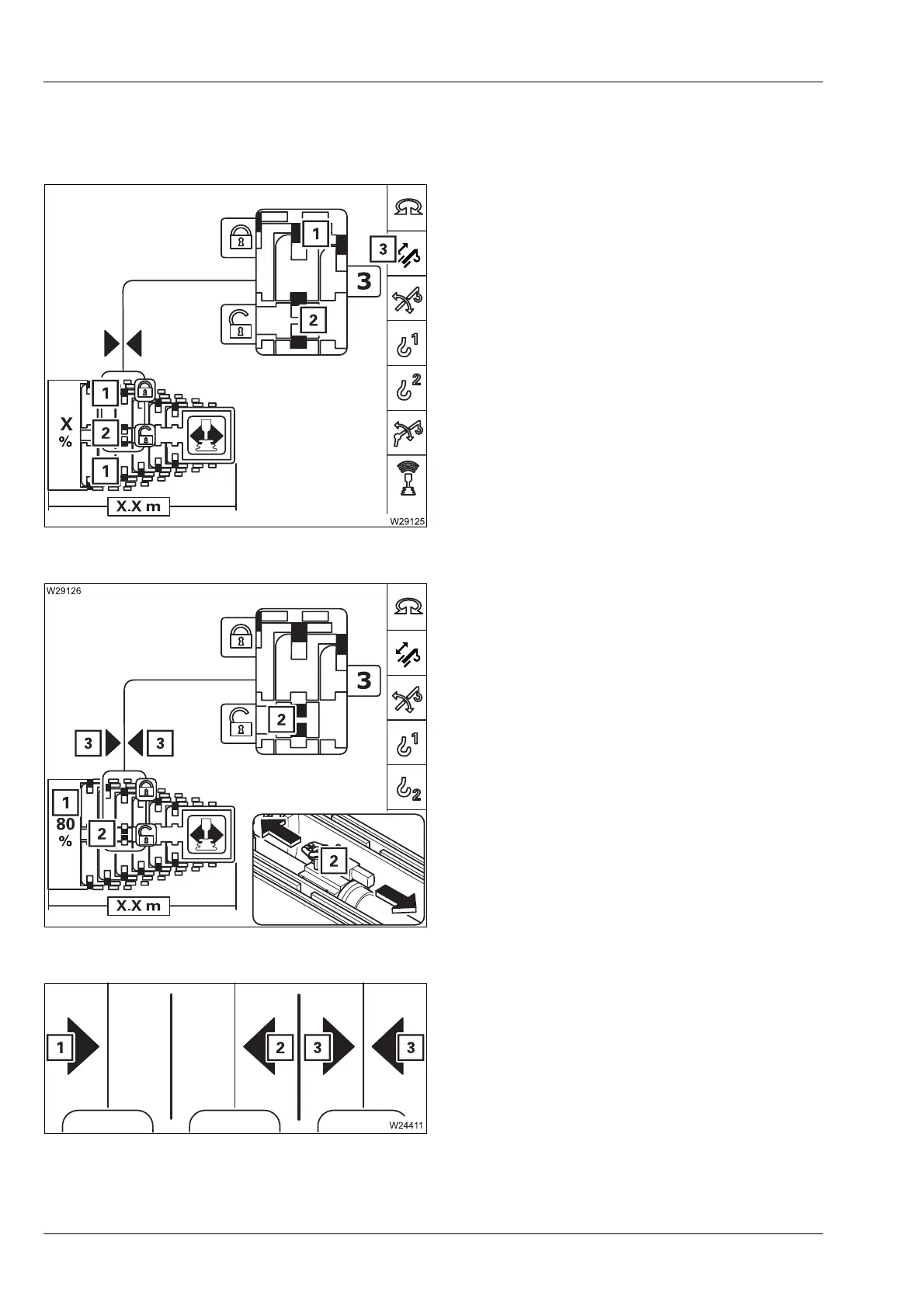

Extending/retract-
ing the telescop-
ing cylinder
Prerequisites
– Telescoping mechanism on – symbol (3)
green
– Telescopic section locked – symbol (1)
green
– Telescoping cylinder unlocked – symbol (2)
red
Extending/retracting
• Move the control lever in the corresponding
telescoping direction:
The telescoping cylinder (2) extends/retracts.
The display (1) shows the currently extended
length, e.g. 80%.
Near a locking point, the symbols (3) show:
– The direction of travel to the locking point:
– Extend: Extending
– Retract: Retracting
1 Extending
2 Retracting
3 At the locking point
