10.7 Working range limiter
Operating Instructions GMK5250L 3 302 633 en 10 - 137
27.09.2017

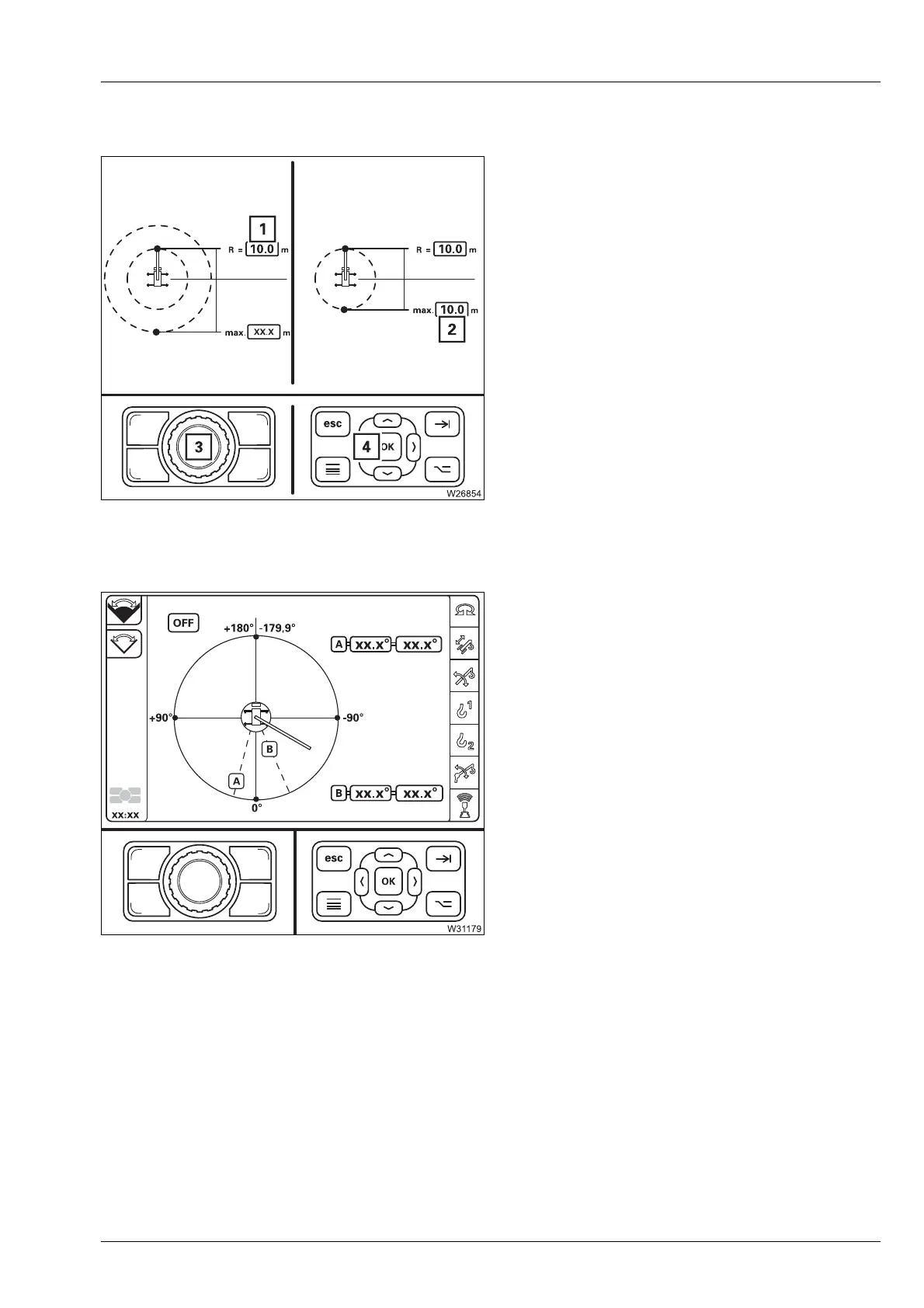

Working radius
• Move the main boom head to just before
the shutdown point without a load, e.g. up
to 10.0 m – value (1).
• Press the button (3) or (4) once.
– The current value (1) will be accepted as
the limit value (2).
Switch on monitoring;
à p. 10 - 142
Slewing angle
Display of the slewing angles
– The slewing angle A limits slewing to the
right.
– The slewing angle B limits slewing to the
left.
Switch on monitoring;
à p. 10 - 142
