Rigging work
11.7 Outriggers – Overview – MAXbase slewing range type
11 - 34 3 302 633 en Operating Instructions GMK5250L
27.09.2017

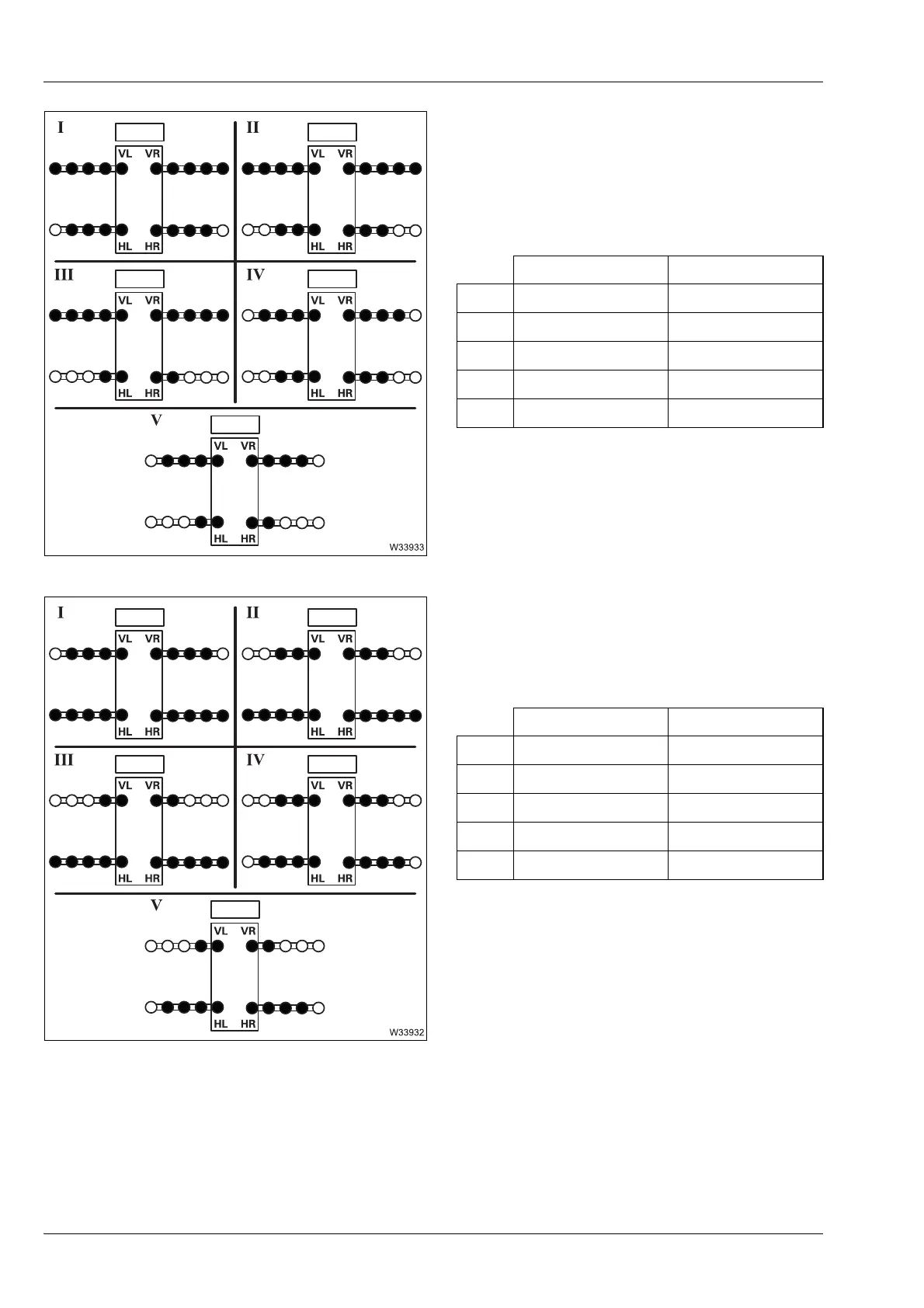

Front / rear
– Front greater than rear
The front outrigger beams are extended fur-
ther than the rear outrigger beams. The table
shows the permissible combinations.
– Rear greater than front
The rear outrigger beams are extended further
than the front outrigger beams. The table
shows the permissible combinations.
FR / FL RR / RL
I
3.900 m (12.8 ft) 3.427 m (11.2 ft)
II
3.900 m (12.8 ft) 2.955 m (9.7 ft)
III
3.900 m (12.8 ft) 2.155 m (7.1 ft)
IV
3.427 m (11.2 ft) 2.955 m (9.7 ft)
V
3.427 m (11.2 ft) 2.155 m (7.1 ft)
FR / FL RR / RL
I
3.427 m (11.2 ft) 3.900 m (12.8 ft)
II
2.955 m (9.7 ft) 3.900 m (12.8 ft)
III
2.155 m (7.1 ft) 3.900 m (12.8 ft)
IV
2.955 m (9.7 ft) 3.427 m (11.2 ft)
V
2.155 m (7.1 ft) 3.427 m (11.2 ft)
