Rigging work
11.7 Outriggers – Overview – MAXbase slewing range type
Operating Instructions GMK5250L 3 302 633 en 11 - 35
27.09.2017

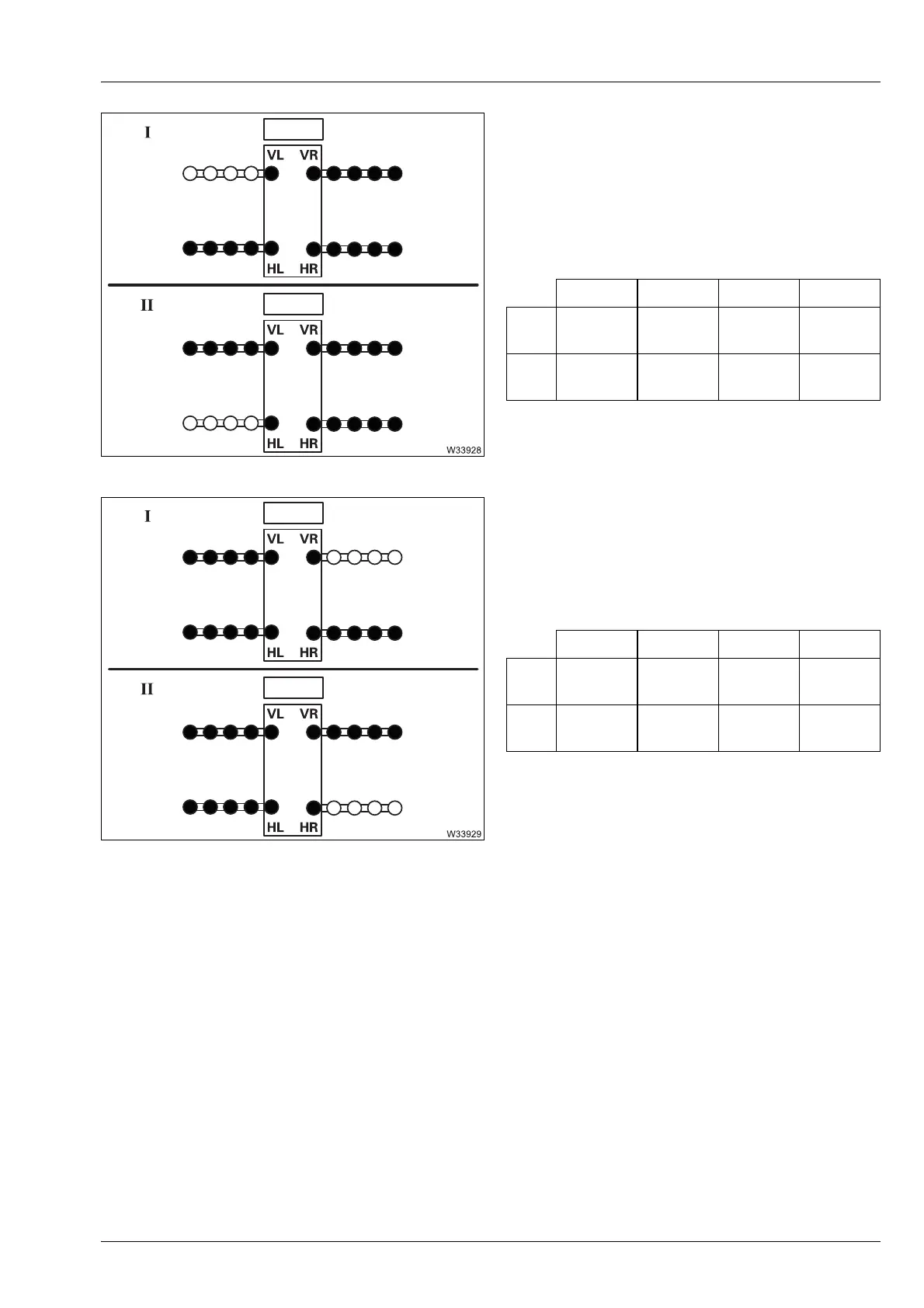

Three / One
– One outrigger beam retracted – left
Three outrigger beams are extended the same
distance and one outrigger beam at the left
side is retracted. The table shows the permis-
sible combinations.
– One outrigger beam retracted – right
Three outrigger beams are extended the same
distance and one outrigger beam at the right
side is retracted. The table shows the permis-
sible combinations.
There are no separate lifting capacity tables
for this type. The lifting capacities for the
One
outrigger beam retracted – left
type are enabled in
a correspondingly mirrored slewing range;
à Lifting capacities and slewing ranges for outrig-
ger spans without separate lifting capacity tables
,
p. 10 - 28.
VR VL HR HL
I
3.900 m
(12.8 ft)
1.355 m
(4.4 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
II
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
1.355 m
(4.4 ft)
VR VL HR HL
I
1.355 m
(4.4 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
II
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
1.355 m
(4.4 ft)
3.900 m
(12.8 ft)
