Rigging work
11.8 Outrigger operation
Operating Instructions GMK5250L 3 302 633 en 11 - 43
27.09.2017

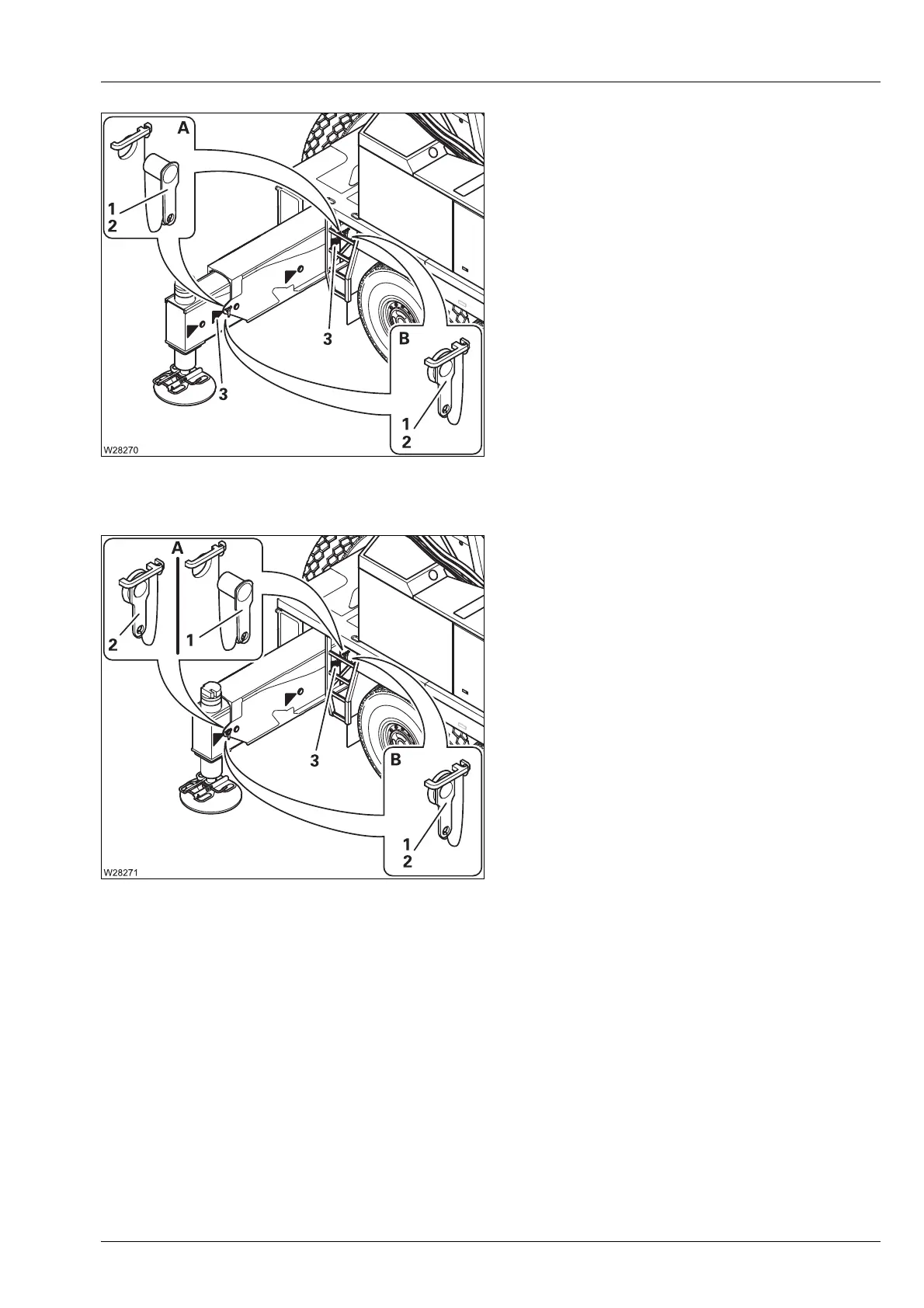

Total width 6.854 m (22.4 ft)
Individual width 3.427 m (11.2 ft)
(A) – Prerequisites
Pins (1) and (2) must be pulled out
(B) – Setting and securing
• Extend the outrigger beam up to the
marking (3).
• Secure the outrigger beam with the pins (1)
and (2).
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
Total width 5.910 m (19.4 ft)
Individual width 2.955 m (9.7 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) must be inserted
(B) – Setting and securing
• Extend the outrigger beam up to the
marking (3).
• Secure the outrigger beam with the pin (1).
• The pin (2) remains inserted.
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
