Rigging work
11.8 Outrigger operation
11 - 44 3 302 633 en Operating Instructions GMK5250L
27.09.2017

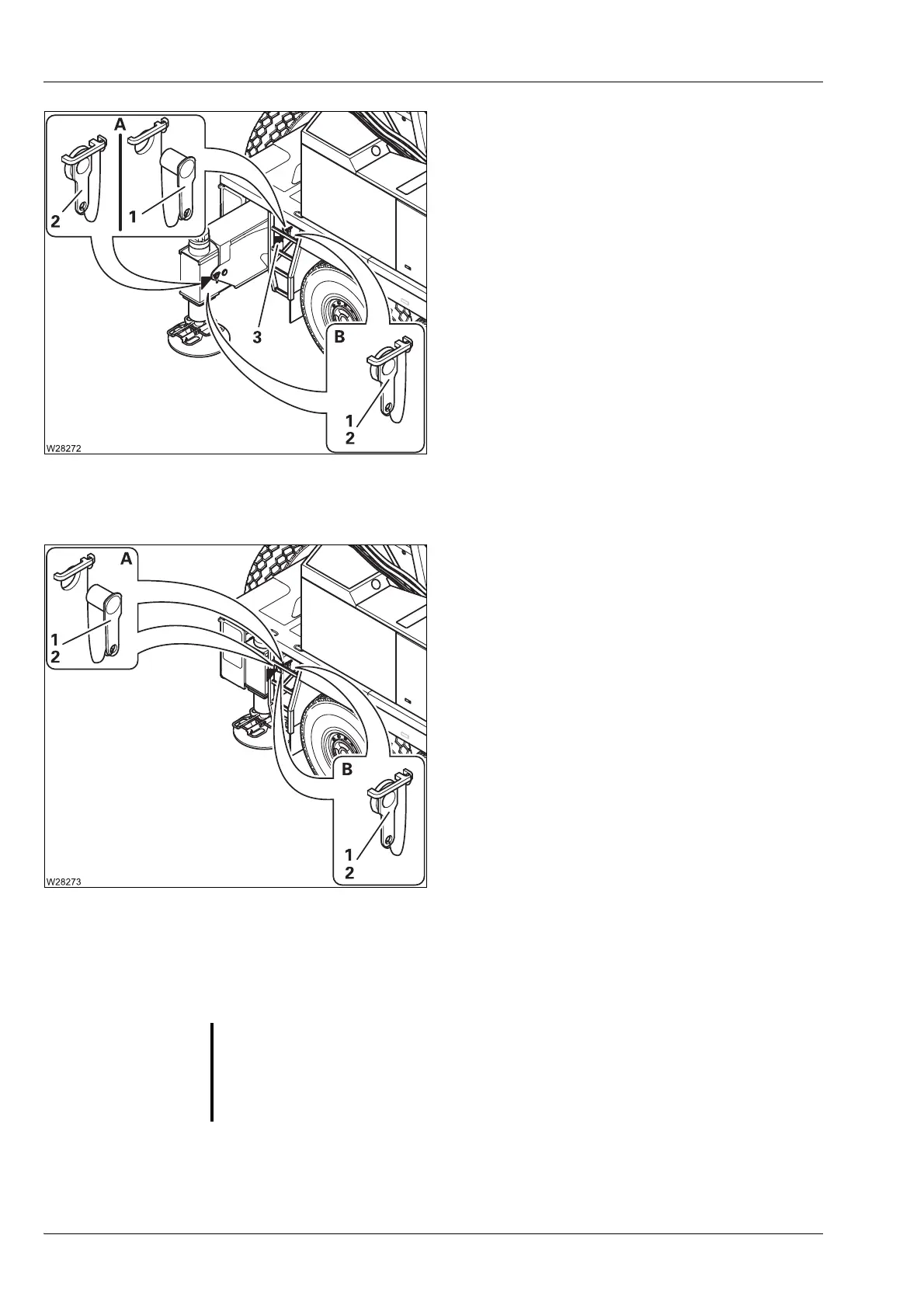

Total width 4.310 m (14.2 ft)
Individual width 2.155 m (7.1 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) must be inserted
(B) – Setting and securing
• Extend the outrigger beam up to the
marking (3).
• Secure the outrigger beam with the pin (1).
• The pin (2) remains inserted.
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
Total width 2.710 m (8.8 ft)
Single width 1.355 m (4.4 ft)
(A) – Prerequisites
Pins (1) and (2) must be pulled out
(B) – Setting and securing
• Completely retract the outrigger beam.
• Secure the outrigger beam with the pins (1)
and (2).
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
For on-road
driving
• Set an outrigger span of 8.950 x 2.710 m (29.4 x 8.8 ft) on all outrigger
beams and secure them.
• Secure all the outrigger pads in the driving position; à p. 11 - 51.
G
Risk of accident if outriggers/outrigger pads are not secured!
Always secure all retracted outrigger beams and all outrigger pads
in the driving position. Avoid serious accidents caused by outrigger
beams/outrigger pads slipping out.
