Rigging work
11.8 Outrigger operation
Operating Instructions GMK5250L 3 302 633 en 11 - 49
27.09.2017
From the
crane cab

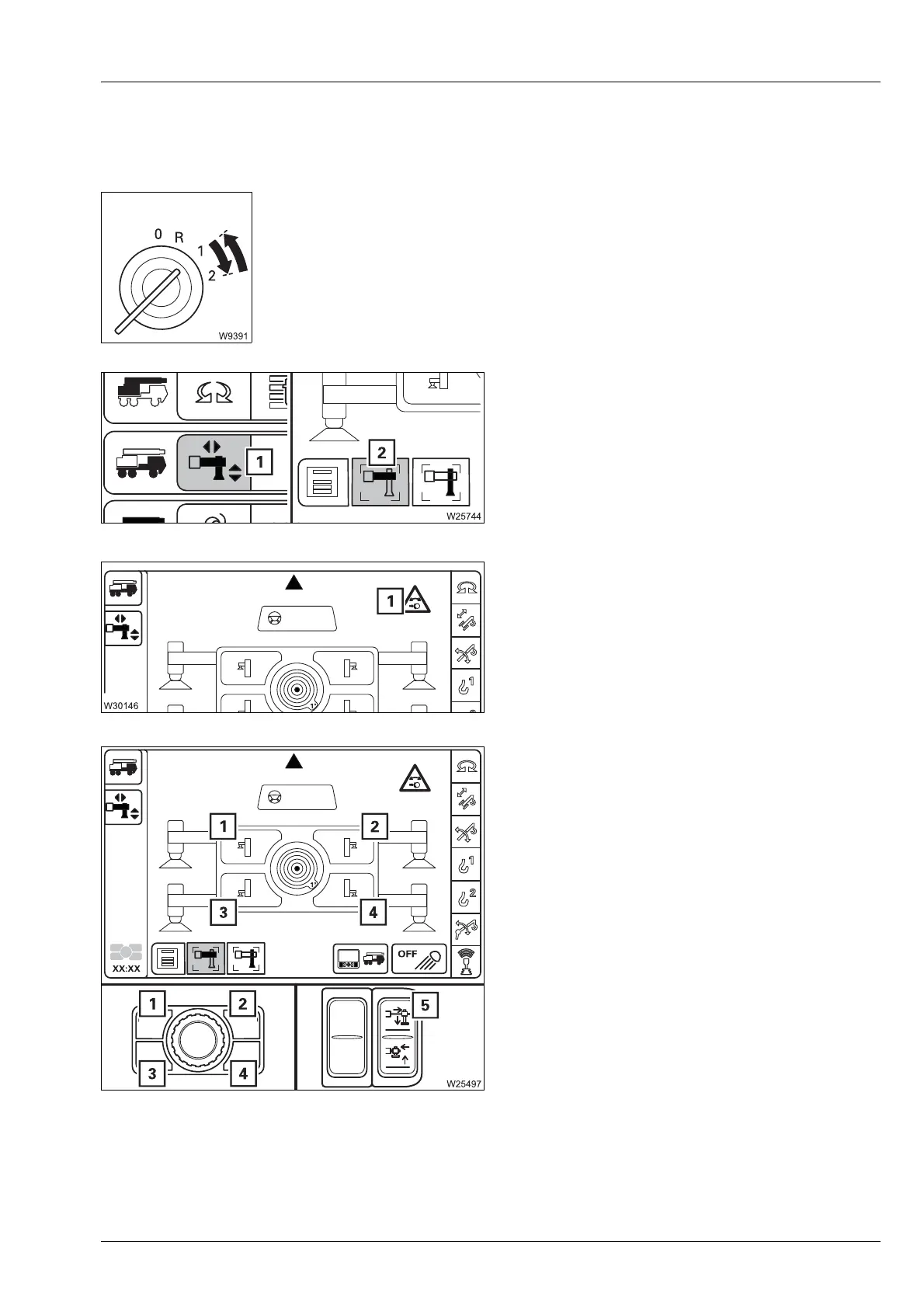

The operating elements are in the Outriggers submenu.
Start the engine
• Start the engine from the crane cab; à p. 9 - 5.
• Switch off the slewing gear; à p. 10 - 115.
Open menu
• Open the Outrigger menu (1).
• Select and confirm the symbol (2) –
Move outrigger beams.
When the turntable is switched on the
symbol (1) is displayed and outrigger motion
is disabled.
• Switch off the slewing gear – symbol (1)
goes out.
Extend
• Press the button for the desired outrigger
beam.
• Press the button (5) in at the top – the
selected outrigger beam extends.
s
1 Front left
2 Front right
3 Rear left
4 Rear right
