11.9 Rigging/unrigging the counterweight
Operating Instructions GMK5250L 3 302 633 en 11 - 69
27.09.2017
11.9.2 Counterweight sections

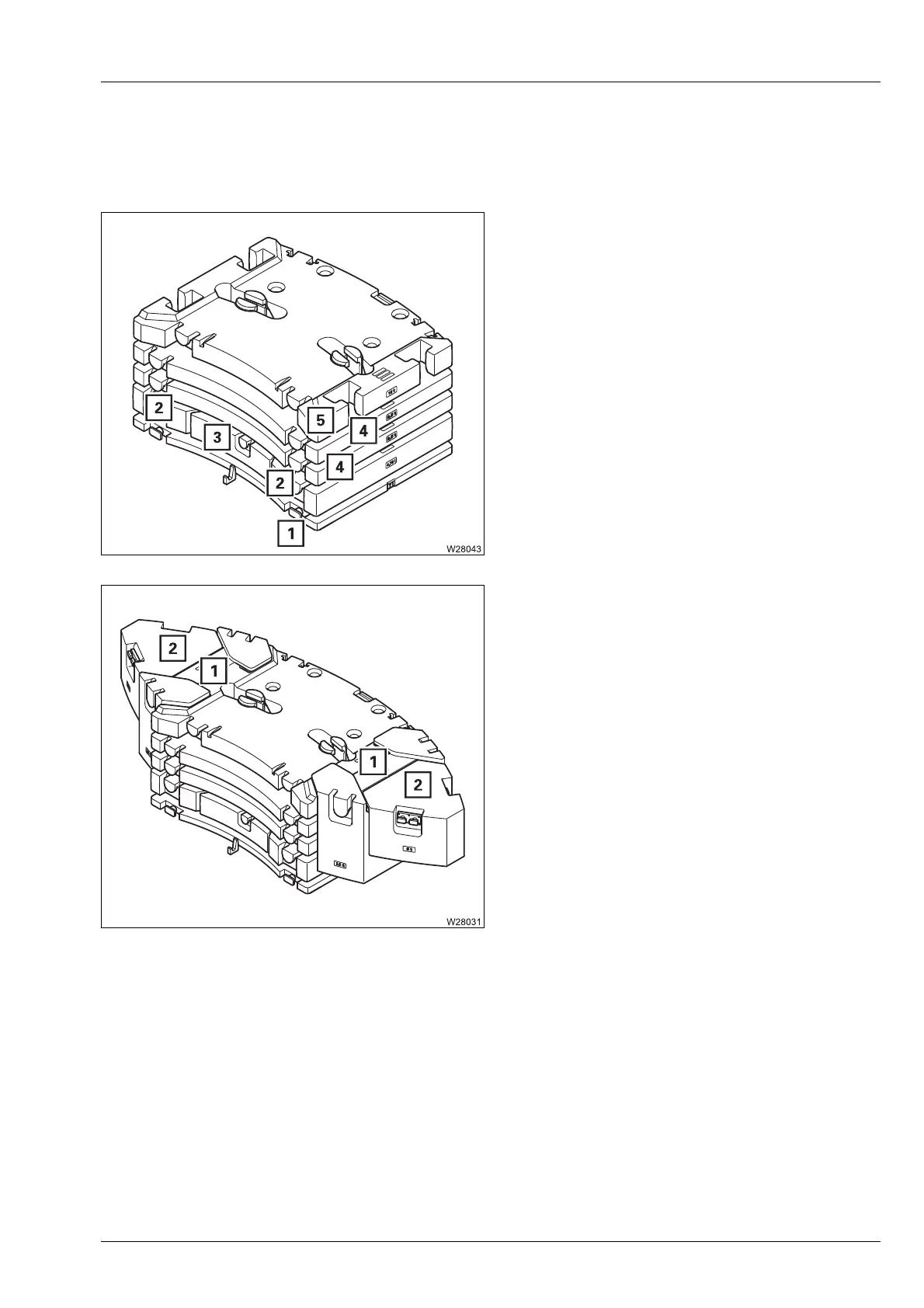

The counterweight combinations can be comprised of:
Counterweight 50 t (110,231 lbs)
– One 7 t base plate (1)
– Two 4.75 t counterweight sections (2)
– One 4.5 t counterweight section (3)
– Two 9.5 t counterweight sections
(4)
– One 10 t counterweight section with
recesses (5)
Counterweight 80 t
– Two 10 t blocks (1)
– Two 5 t blocks (2)
