Rigging work
11.9 Rigging/unrigging the counterweight
11 - 78 3 302 633 en Operating Instructions GMK5250L
27.09.2017

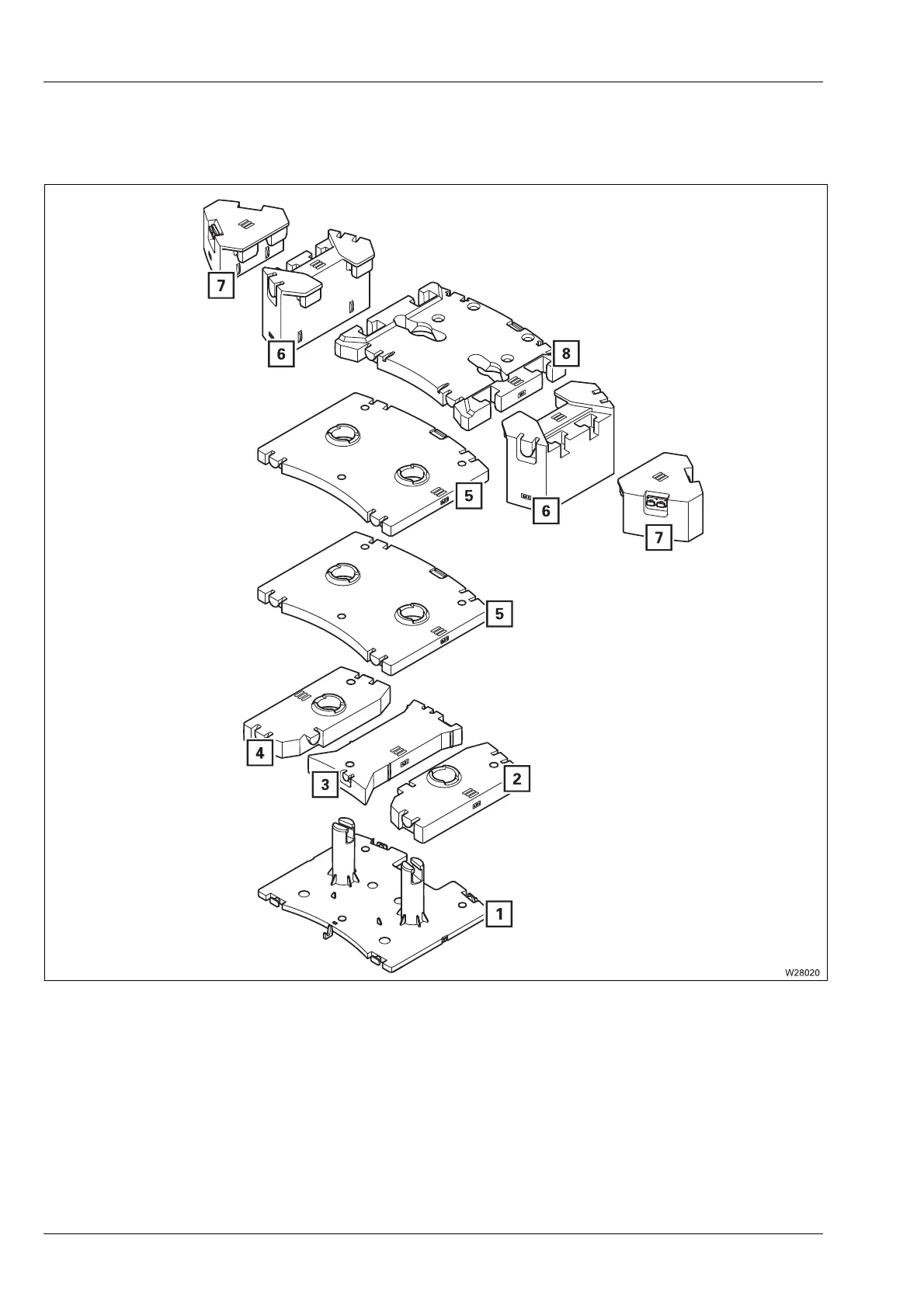

The illustration and the table show all counterweight sections and all coun-
terweight combinations that can be rigged.
• The tables specify which counterweight sections are needed for the
respective counterweight combination.
• Lift the counterweight sections onto the base plate; à Slinging points on
the counterweight sections
, p. 11 - 72.
