Manitowoc Grove GMK 5250L

Rigging work
11.9 Rigging/unrigging the counterweight
11 - 82 3 302 633 en Operating Instructions GMK5250L
27.09.2017

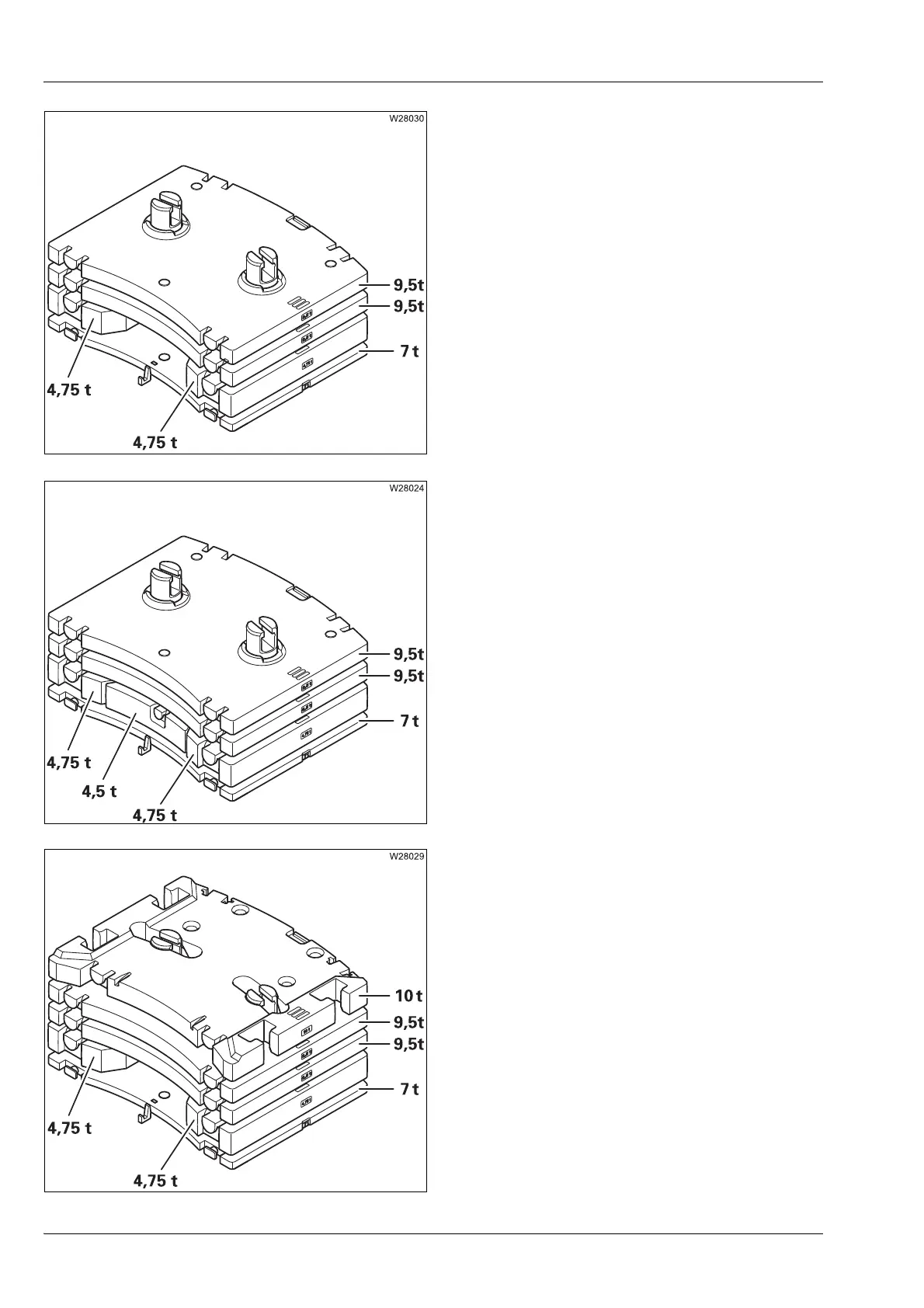

35.5 t (78,264 lbs)
– 7 t base plate
– Two 4.75 t sections
– Two 9.5 t sections
40 t (88,185 lbs)
– 7 t base plate
– Two 4.75 t sections
– One 4.5 t section
– Two 9.5 t sections
45.5 t (100,310 lbs)
– 7 t base plate
– Two 4.75 t sections
– Two 9.5 t sections
– One 10 t section
