Rigging work
11.9 Rigging/unrigging the counterweight
Operating Instructions GMK5250L 3 302 633 en 11 - 83
27.09.2017

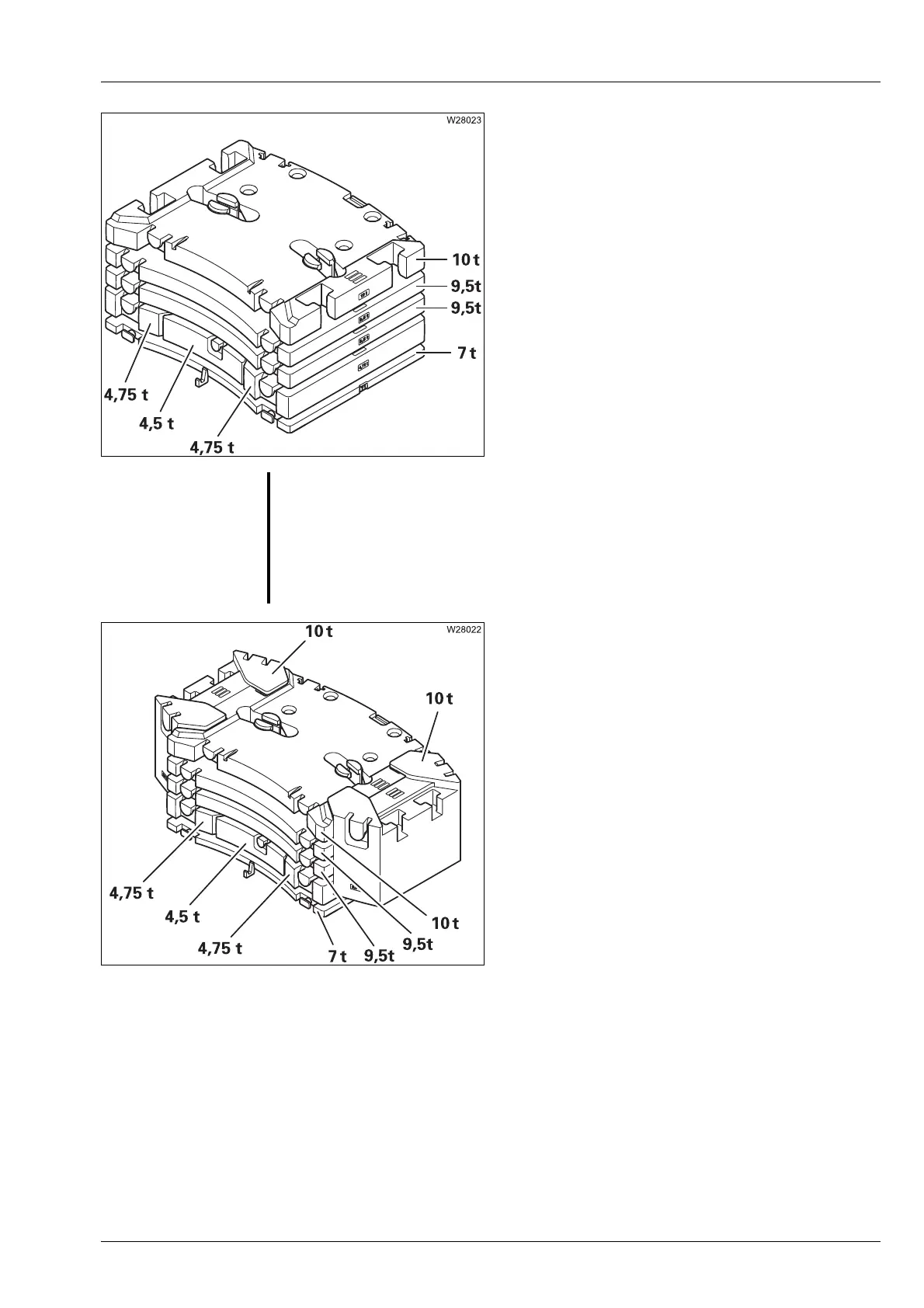

50 t (110,231 lbs)
– 7 t base plate
– Two 4.75 t sections
– One 4.5 t section
– Two 9.5 t sections
– One 10 t section
70 t
– 7 t base plate
– Two 4.75 t sections
– One 4.5 t section
– Two 9.5 t sections
– One 10 t section
– Two 10 t blocks
s
S
Risk of overturning if counterweight rigging sequence is incorrect!
When installing, always attach both 10-t counterweight blocks before you
attach a 5-t counterweight block and, during removal, always remove both
5-t counterweight blocks before you remove a 10-t counterweight block. If
you attach both blocks on one side first, the entire counterweight will fall
off the carrier and may cause injury to you or other persons.
